Product Description

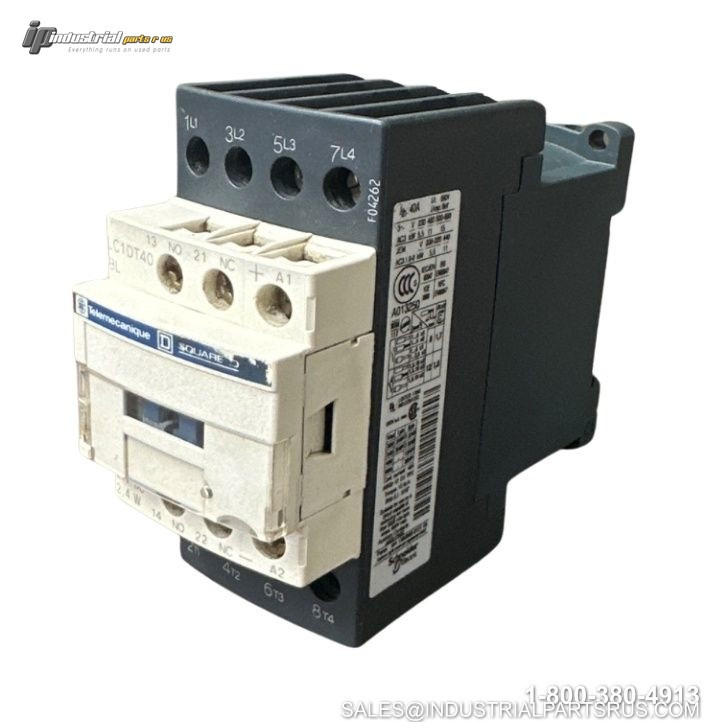

The Telemecanique LC1DT40BL is a 4-pole non-reversing contactor from the TeSys D series, featuring a low consumption 24VDC coil and 40A resistive load rating. This contactor is designed for industrial motor control applications and includes built-in auxiliary contacts for enhanced switching capability. The unit offers both panel mounting and DIN rail mounting options for installation flexibility.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Telemecanique |
| Model/Part Number | LC1DT40BL |
| Series | TeSys D |
| Sub-range | TeSys Deca |
| Poles | 4-Pole |
| Contact Configuration | 4NO |
| Coil Voltage | 24VDC |
| Coil Type | Low Consumption |
| Coil Power | <2.4W |
| Coil Voltage Range | 19.2-30VDC |
| Current Rating AC-1 | 40A |
| Rated Operating Voltage | 690V AC/DC |
| Maximum Voltage | 440V |
| Rated Impulse Voltage | 6kV |
| Auxiliary Contacts | 1NO + 1NC |
| Connection Type | Screw Terminals |
| Mounting Type | DIN Rail or Panel Mount |
| Dimensions (H x W x D) | 91 x 45 x 107mm |
| Degree of Protection | IP20 |
| Mechanical Durability | 30 Million Cycles |
| Application | Motor Control, Resistive Loads |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 40A
Manufacturer Telemecanique
Part Number LC1DT40BL
Series TeSys D
Shelf K-46 TUB 1
Model LC1DT40BL
Coil Voltage 24V DC
MPN LC1DT40BL
Type Contactor
