Product Description

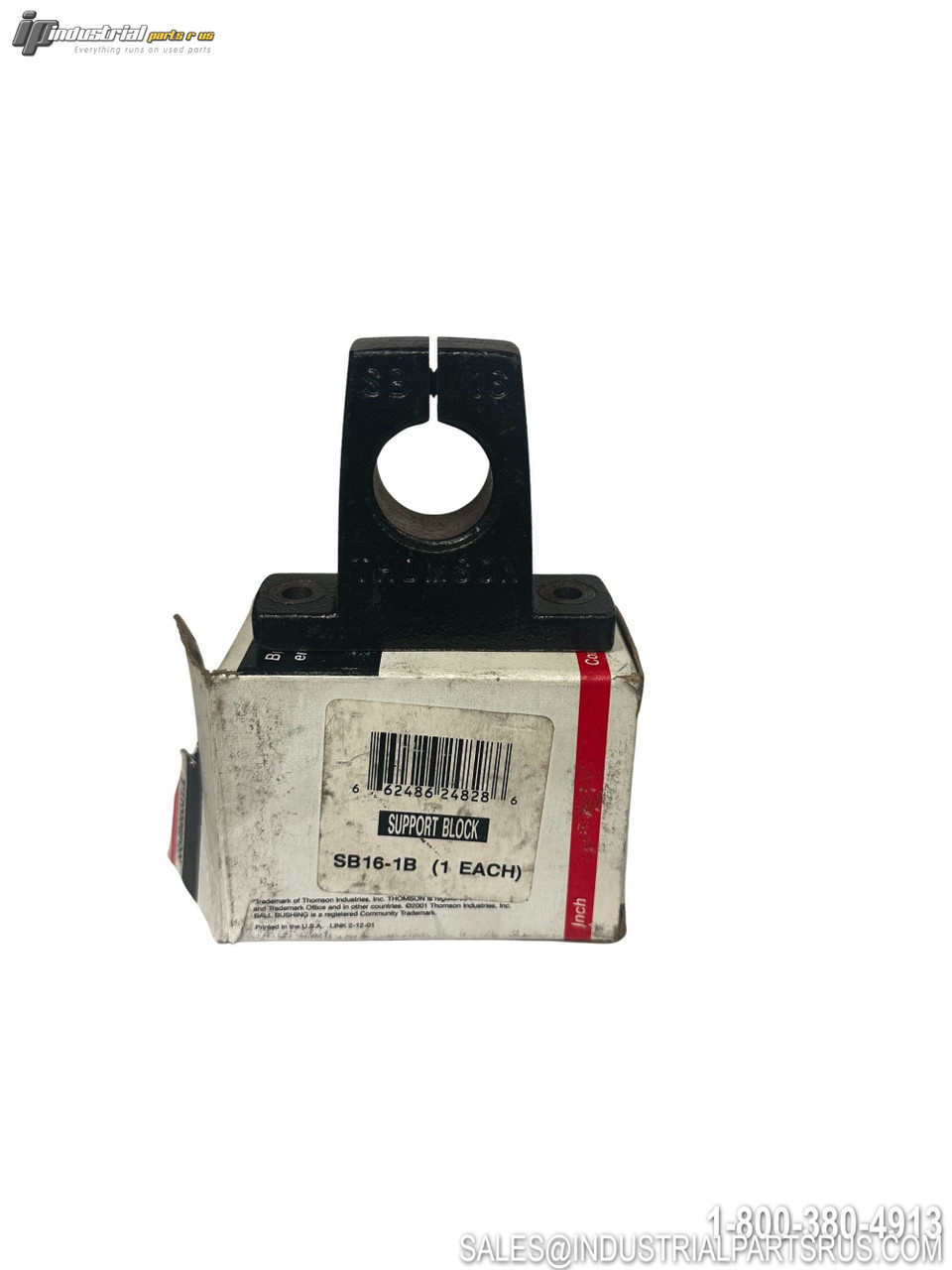

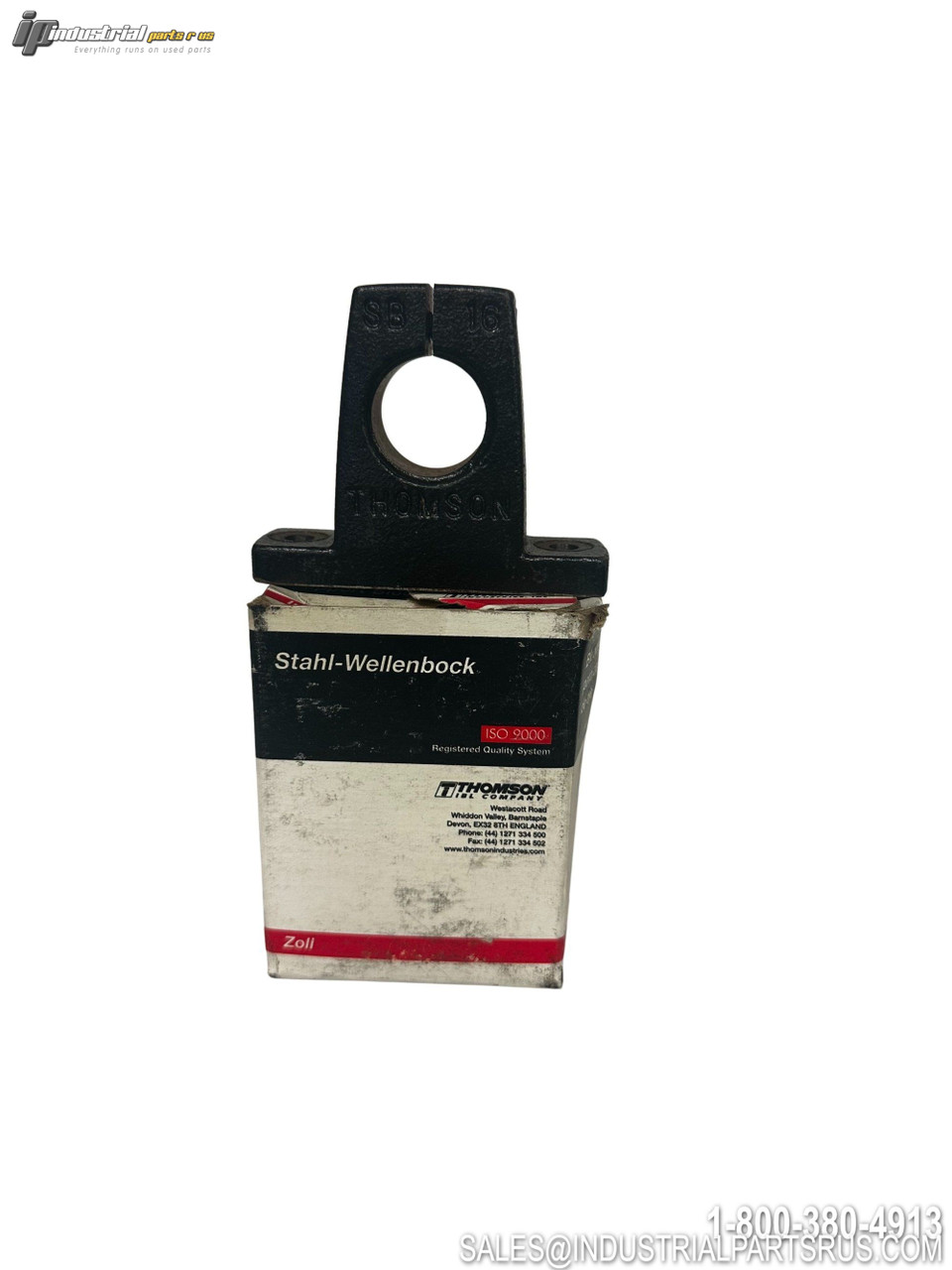

The Thomson SB16-1B is a shaft support block designed for end or intermittent support applications in linear motion systems. This malleable iron support block is engineered for use with Thomson 60 Case shafting and provides reliable shaft positioning without requiring bolts for maintenance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Thomson |
| Model/Part Number | SB16-1B |
| Product Type | Shaft Support Block |
| Series | SB (Standard Type) |
| Bore Diameter | 1.000 inch |
| Overall Length | 3.25 inches |
| Overall Width | 1.00 inch |
| Overall Height | 2.56 inches |
| Base to Shaft Center | 1.50 inches |
| Bolt Center Distance | 2.50 inches |
| Mounting Hole Diameter | 0.28 inches |
| Material | Malleable Iron |
| Housing Style | 2 Bolt Support Block |
| Compatible Shafting | Thomson 60 Case |
| Application | End/Intermittent Support |
| Weight | 0.453 kg |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Thomson
Part Number SB16-1B
Shelf K-47
Model SB16-1B
MPN SB16-1B
Type Linear Guide
