Product Description

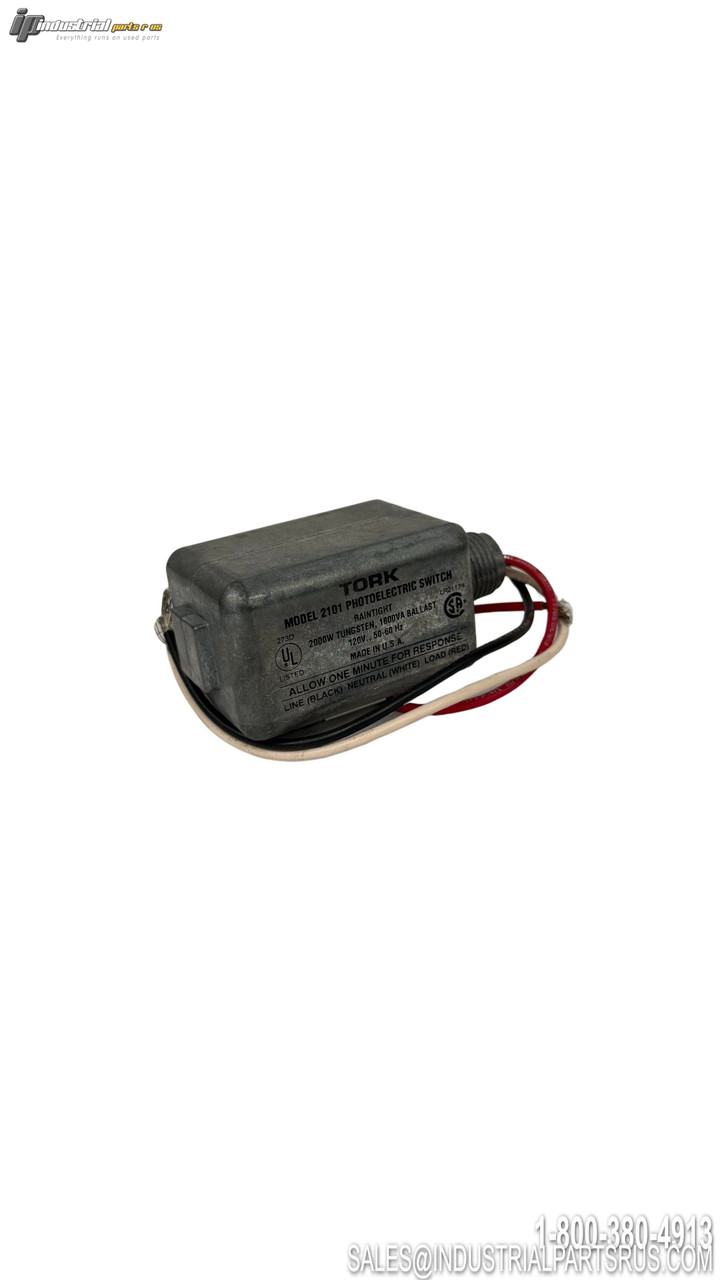

The TORK 2101 is a specification-grade photocontrol sensor designed for outdoor lighting applications. This dusk-to-dawn controller automatically turns lights on when ambient light levels drop between 1-5 foot-candles and turns them off when light levels reach 3-15 foot-candles. Built with die-cast zinc construction and featuring a cadmium sulfide photocell sensor for reliable operation in various weather conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TORK |
| Model/Part Number | 2101 |
| Manufacturer | NSI Industries |
| Product Series | 2100 Series |
| Input Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Tungsten Load Rating | 2000W |
| Ballast Load Rating | 1800 VA |
| LED Load Rating | 600 VA |
| Contact Configuration | SPST (Normally Closed) |
| Turn On Light Level | 1 to 5 FC |
| Turn Off Light Level | 3 to 15 FC |
| Time Delay | Up to 2 minutes |
| Power Consumption | Less than 1 Watt |
| Sensor Type | Cadmium Sulfide |
| Sensor Diameter | 1/2 inch |
| Housing Material | Die Cast Zinc |
| Mounting Type | 1/2" Stem Mount |
| Wire Leads | 6" leads, 16 AWG |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Weather Rating | Raintight |
| Standards Compliance | ANSI/UL773A, cULus, Title 24, CSA |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Shelf K-59
GTIN 679523686260
Output Type Relay
Sensor Type Cadmium Sulfide
Manufacturer Tork
Part Number 2101
Model 2101
MPN 2101
Type Photoelectric Sensor
