Product Description

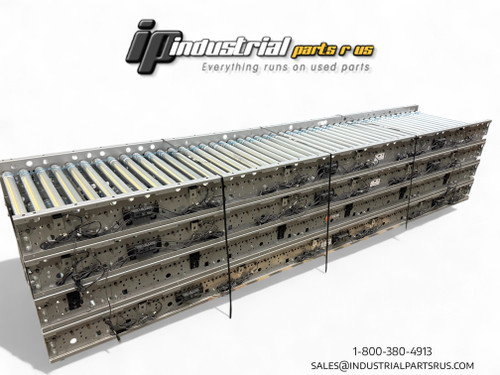

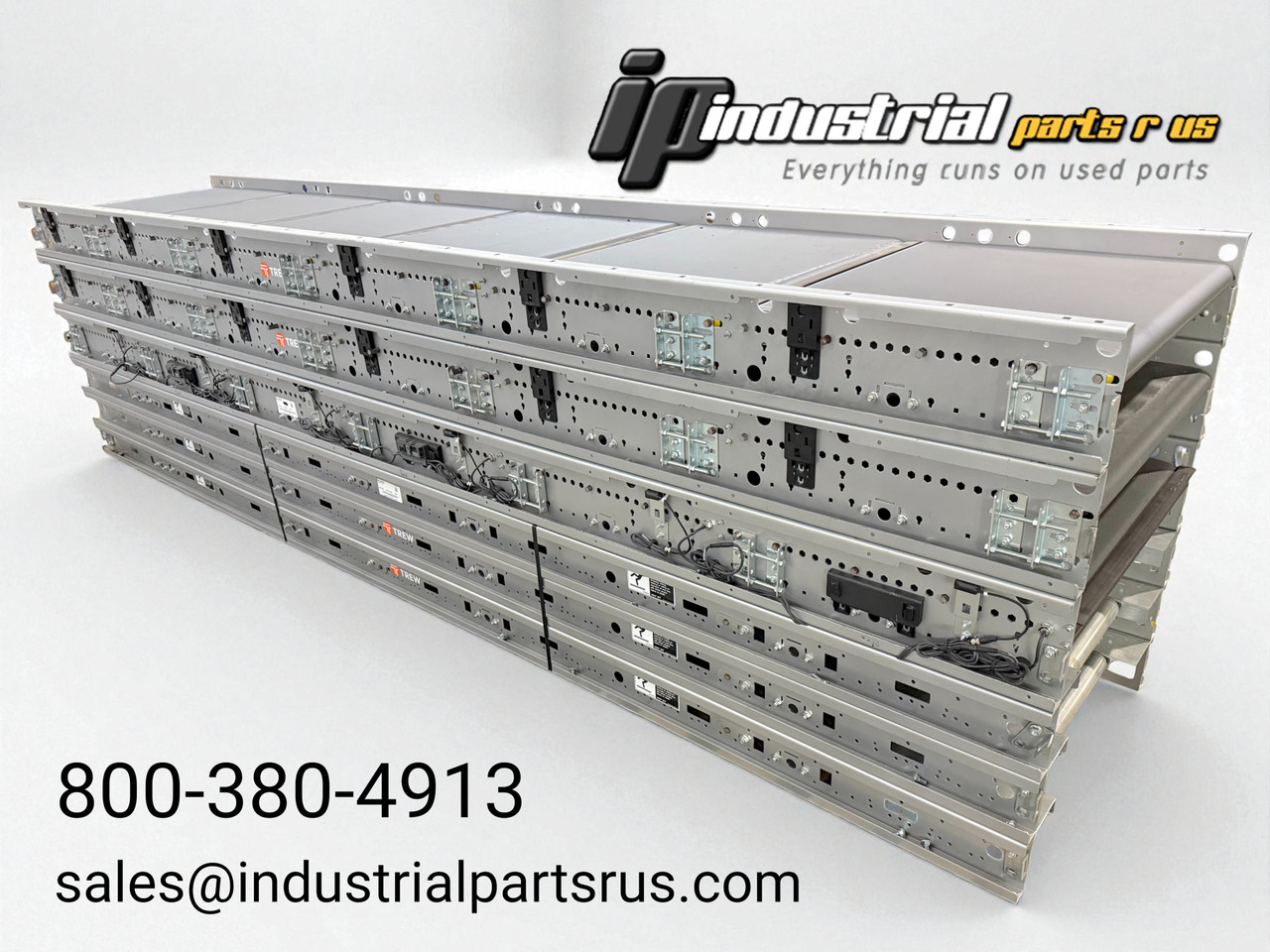

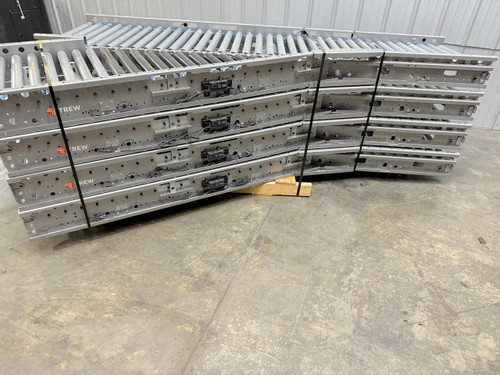

Hilmot Trew 26" MDR Belted Conveyor System Featuring Zero Pressure Zones for Accumulation and Non-Contact Product Flow. The MDR Belted Horizontal modules have a high friction belt that holds product in location and helps maintain product alignment, perfect for print and apply applications, small and light products and bags. Higher angles are possible depending on the application. Pre-wired conveyor sections are networked with bus technology and are easily configured for multiple applications. All electric operation ensures a consistent and quiet system that is easy to maintain.These conveyors require both a 24V Power Supply and an ASI Master Control (see link below). We have these in stock in our store.
We currently have 26" Wide and 20" Wide Conveyors available including MDR Curve Conveyors, MDR Spur Conveyors, MDR Merge or "Y" Conveyors, and MDR Belted Intermediate Conveyors In Stock. Be sure to view our other components including Conveyor Legs, Power Supplies, Railing, and ASI Controls!!
- Type: Belted Powered Roller Conveyor
- Voltage: 24Vdc
- Number of Zones: 6
- Roller Width: 26" Wide
- Roller Diameter: 2" Diameter
- Zone Depth Each: 23" Long
- Clearance Between Rails: 27" Wide
- Overall Width: 30"
- Conveyor Length: 12' Long
- Conveyor Speed: 180 FPM
- Weight Capacity: 75 Lbs.
Motorized Roller Conveyor
Motorized roller conveyor is used in distribution, fulfillment and manufacturing for tote, tray, and case handling applications, often when interfacing with automation equipment, teammate workstations, flexibility is needed, the most energy efficient system is desired or non-contacting product flow solution is preferred.
MDR System Overview
MDR technology is the fastest growing conveyor technology since the advent of the line-shaft conveyor in the late '60s. Trew’s design provides the benefits of MDR with the widest range of standard modules.
-
All Electric – 24VDC design
-
Less Power – uses 30-50% less energy
-
Quiet – run on demand with low noise
-
Modular – flexible solutions and layouts
-
Flexibility – 20+ standard modules
-
Fast – factory ready for fast installation
Product Videos
Custom Field
GTIN Does Not Apply
Country/Region of Manufacture United States
Manufacturer Trew Solutions
Series MDR
Model 26x12
MPN 26x12
Voltage 24V
Type Powered Roller Conveyor
