Product Description

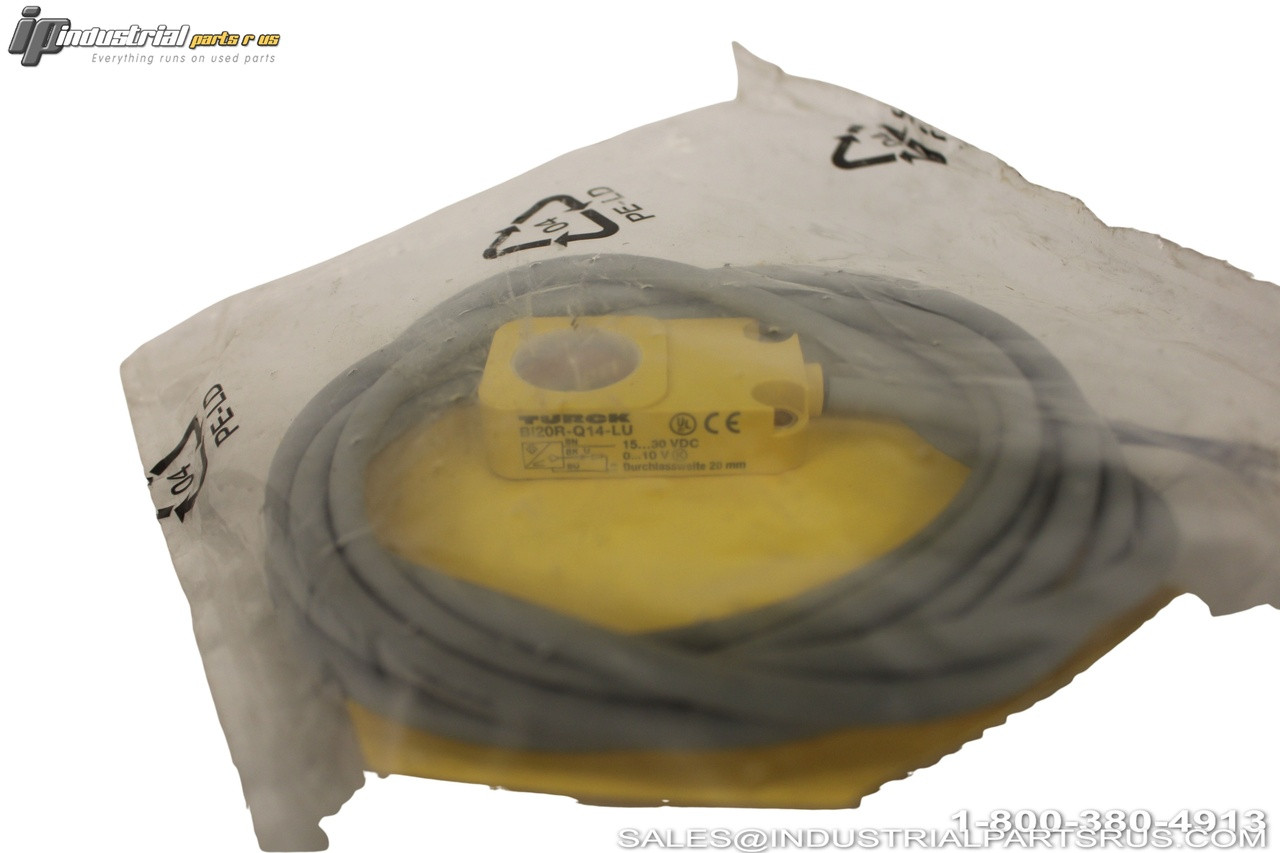

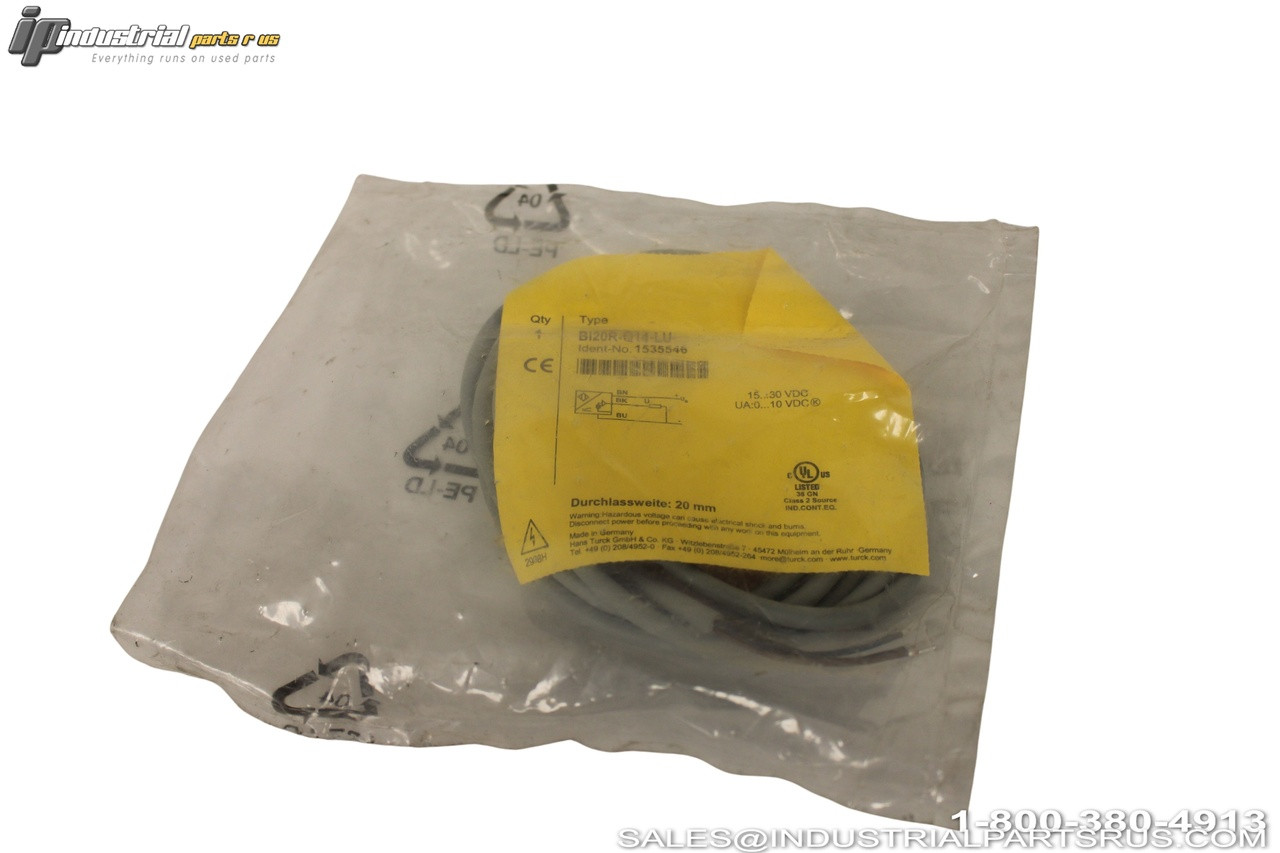

The Turck Bi20r-q14-lu is an inductive proximity sensor designed for precise thickness and distance measurement applications. This ring sensor features a rectangular Q14 housing with adjustable sensitivity via potentiometer and analog voltage output for continuous measurement feedback.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model/Part Number | Bi20r-q14-lu |
| Manufacturer ID | 1535546 |
| Sensor Type | Inductive Ring Sensor |
| Sensing Range | 20mm |
| Operating Voltage | 15-30 VDC (18-30 VDC nominal) |
| Output Type | Analog Output 0-10V |
| Construction Size | 52 x 30 x 14 mm |
| Height | 14 mm |
| Inside Ring Diameter | 20.1 mm |
| Housing Material | PBT-GF30-V0 Plastic |
| Connection Type | Cable Connection |
| Cable Length | 2.0 m (6.5 ft) |
| Cable Termination | Bare End Flying Leads |
| Wiring | 3-Wire |
| Switching Frequency | 80Hz Maximum |
| Sensitivity Adjustment | Potentiometer Adjustable |
| Design | Rectangular Q14 Housing |
| Operating Temperature | -25 to +70°C |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Germany
GTIN 679523686161
Output Type Analog
Sensor Type Inductive Ring Sensor
Operating Distance 20mm
Manufacturer Turck
Part Number BI20R-Q14-LU
Shelf O 10
Model BI20R-Q14-LU
MPN BI20R-Q14-LU
Type Inductive Proximity Sensor
