Product Description

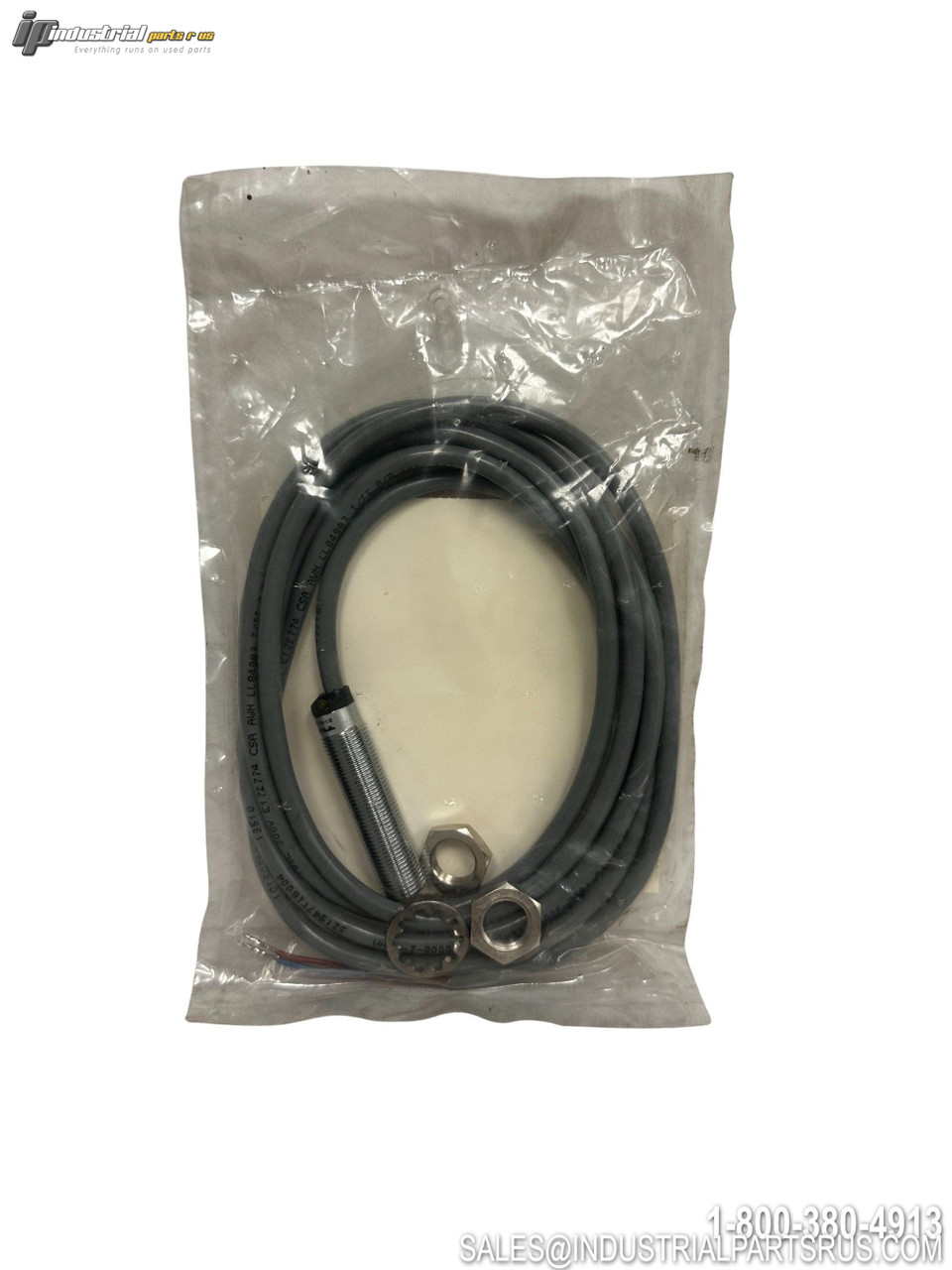

The Turck BI3-M12-AD4X is an industrial inductive proximity sensor designed for reliable object detection in harsh environments. This embeddable sensor features a chrome-plated brass housing with M12 threading and operates with a 2-wire DC configuration for simplified wiring. It provides consistent performance with LED indicator feedback and IP67 protection rating.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model/Part Number | BI3-M12-AD4X |
| Product Series | BI3 |
| Turck ID Number | 4405035 |
| Sensing Range | 3mm |
| Thread Size | M12 x 1 |
| Housing Design | Partially Threaded Barrel |
| Housing Material | Chrome-plated Brass |
| Supply Voltage | 10-65VDC |
| Output Type | 2-Wire DC |
| Contact Type | NO (Normally Open) |
| Maximum Current | 100mA |
| Switching Frequency | 1kHz (1000Hz) max |
| Connection Type | 2m Cable with Bare Wire Ends |
| Mounting Type | Embeddable (Flush) |
| Ambient Temperature | -25°C to +70°C |
| Protection Rating | IP67 |
| LED Indicator | Yes |
| Sensor Face Diameter | 12mm |
| Shielded | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Output Type 2-Wire DC
Sensor Type Inductive
Manufacturer Bi3
Part Number BI3-M12-AD4X
Shelf K-56 TUB 7
Model BI3-M12-AD4X
MPN BI3-M12-AD4X
Type Inductive Proximity Sensor
