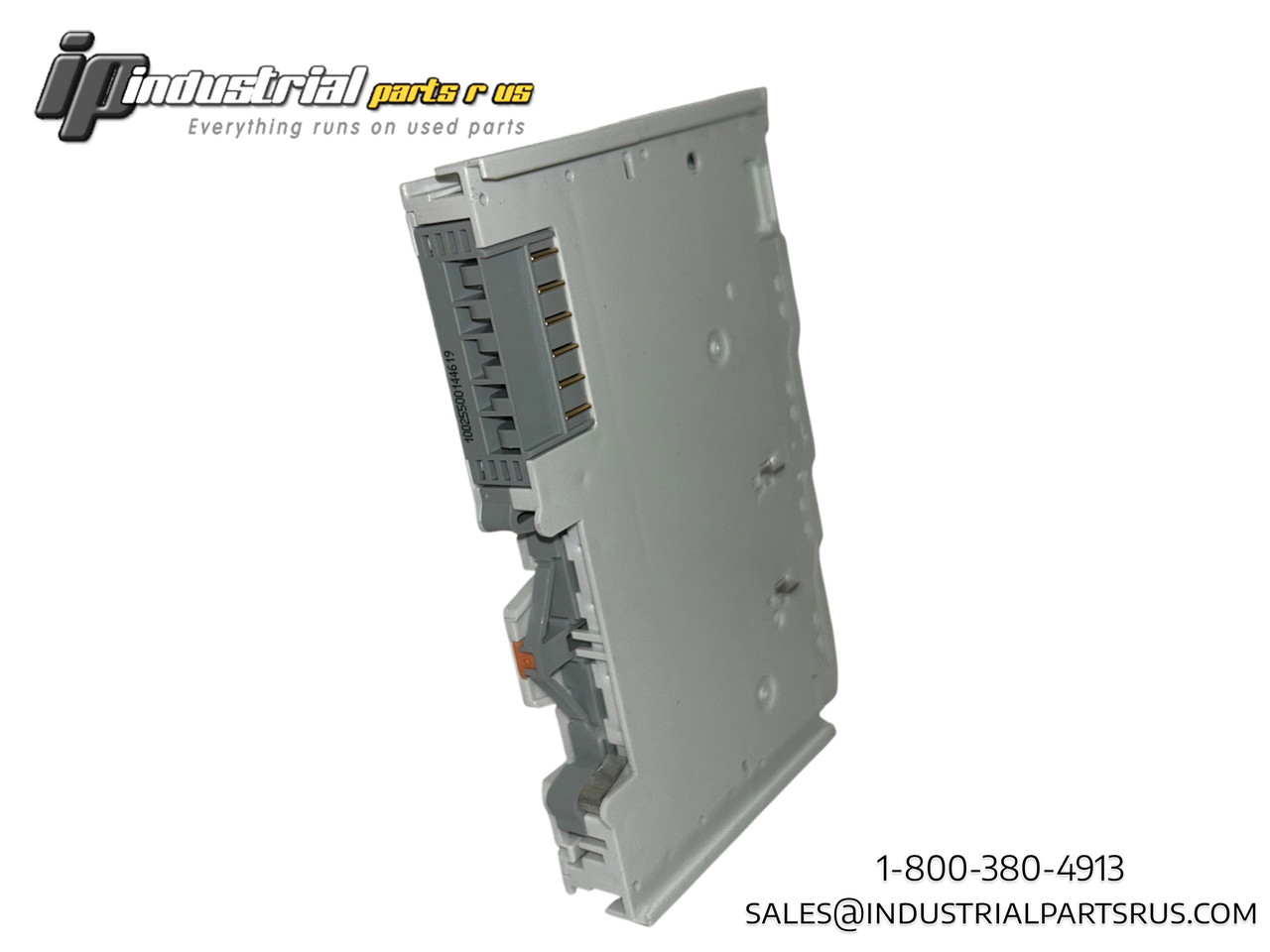

WAGO 753-431 8-Channel Digital Input Module 24VDC 0.2ms

The WAGO 753-431 is a pluggable DC digital input slice module featuring 8 channels of 24VDC digital inputs with high-side switching and 1-wire configuration. It offers 0.2ms input filtering for fast response and includes LED status indicators for each input channel. The module mounts on DIN-35 rail and features push-in spring cage-clamp connections.

Specifications

• 8 x digital inputs, 24VDC transistor high-side switching
• Input voltage range: -3...+5VDC (OFF) / 15-30VDC (ON)
• Input filter time: 0.2ms
• Supply voltage: 5VDC (supplied by system)
• DIN-35 rail mounting, IP20 protection
• Push-in spring cage-clamp connections
• LED status indicators (A-D and E-H green LEDs)
• Operating temperature: 0°C to +55°C ambient
