Product Description

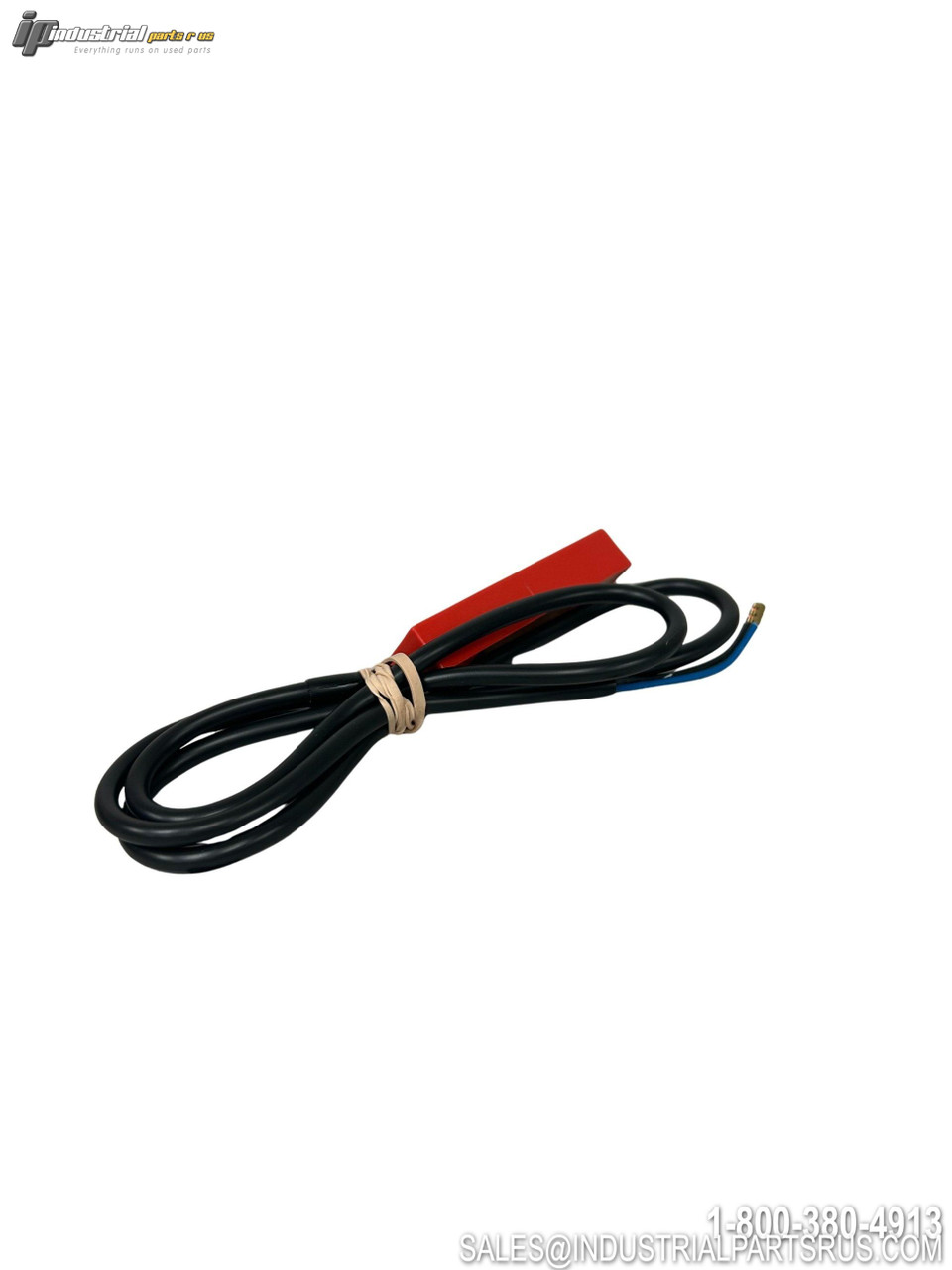

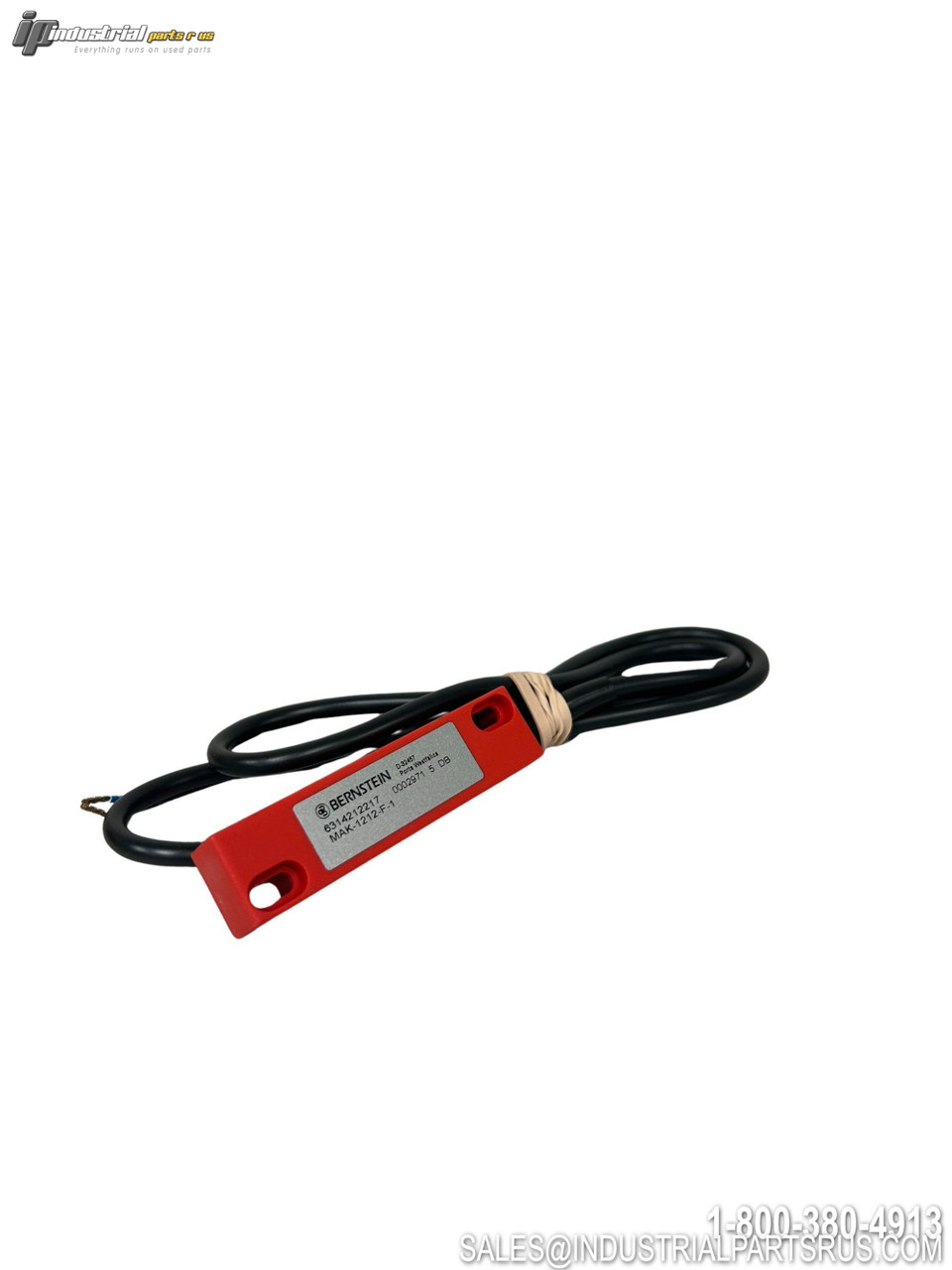

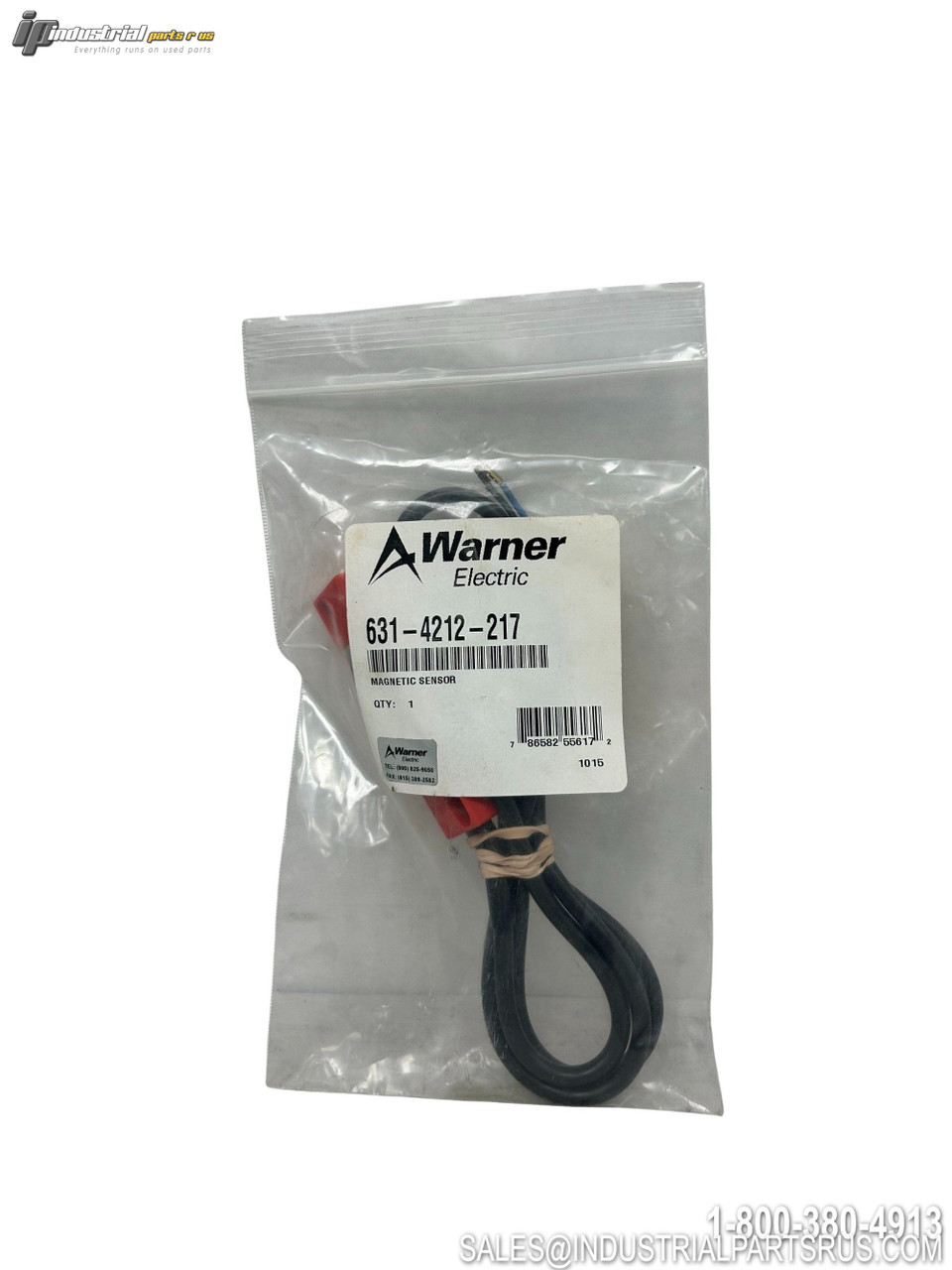

The Warner Electric 631-4212-217 is a magnetic reed switch proximity sensor designed for industrial applications requiring reliable magnetic field detection. This 2-wire sensor features normally open contacts and is capable of handling up to 250VAC operating voltage with an 830mA current rating.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Warner Electric |
| Model/Part Number | 631-4212-217 |
| Sensor Type | Magnetic Reed Switch |
| Output Function | Normally Open (N.O.) |
| Sensing Distance | 21 mm |
| Maximum Voltage | 250V AC/DC |
| Maximum Current | 3A |
| Maximum Power | 100 VA |
| Connection Type | 2-Wire Cable |
| Cable Length | 1 meter |
| Dimensions | 80 x 20 x 15 mm |
| Operating Temperature | -5°C to +70°C |
| Protection Rating | IP67 |
| Housing Material | PA6.6 Plastic |
| Housing Color | Red |
| OEM Cross Reference | Bernstein MAK-1212-F-1 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686246
Output Type Relay
Sensor Type Magnetic
Operating Distance 21 mm
Manufacturer Warner Electric
Part Number 631-4212-217
Shelf K-57 TUB 1
Model 631-4212-217
MPN 631-4212-217
Type Proximity Sensor
