Product Description

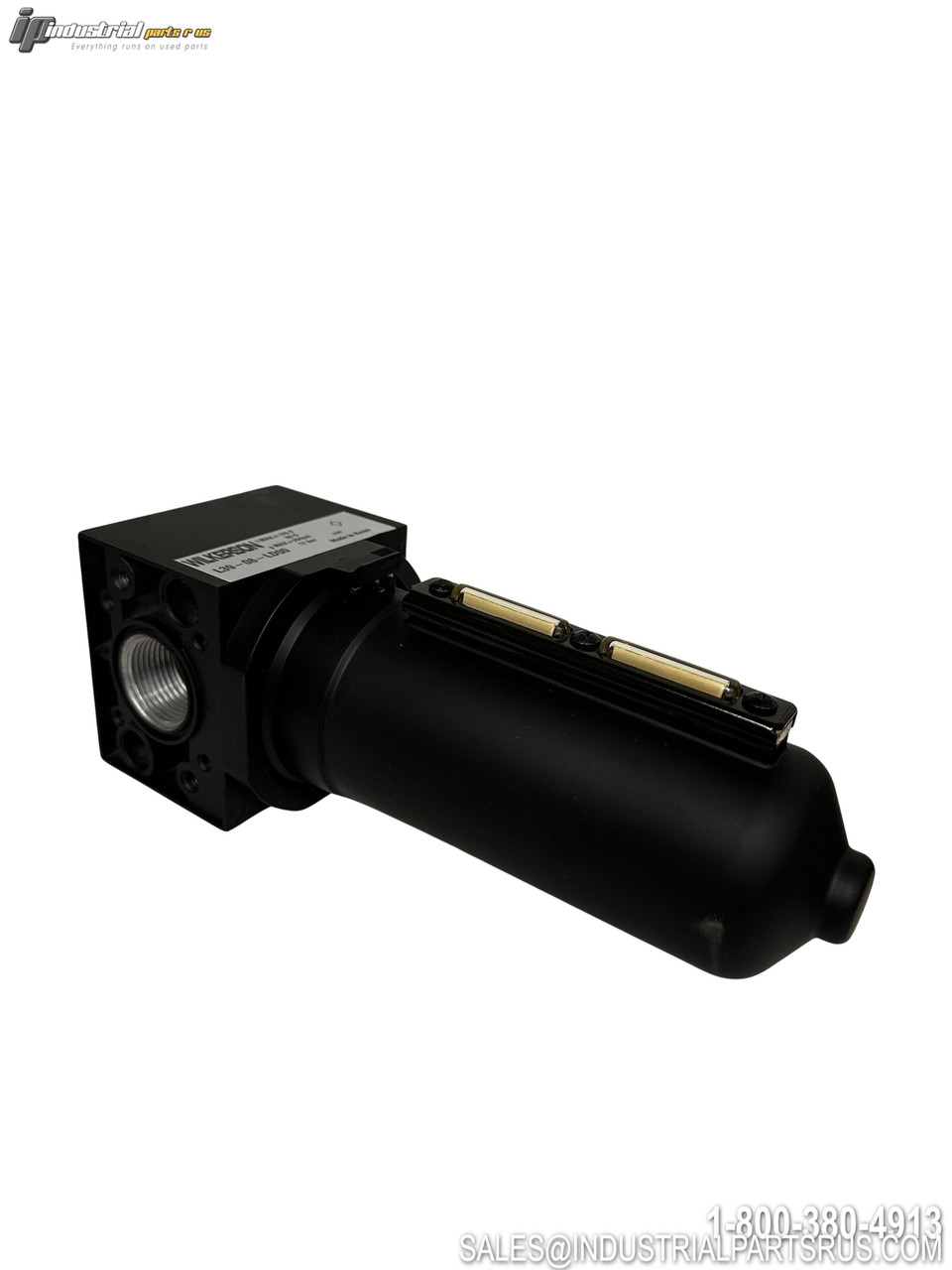

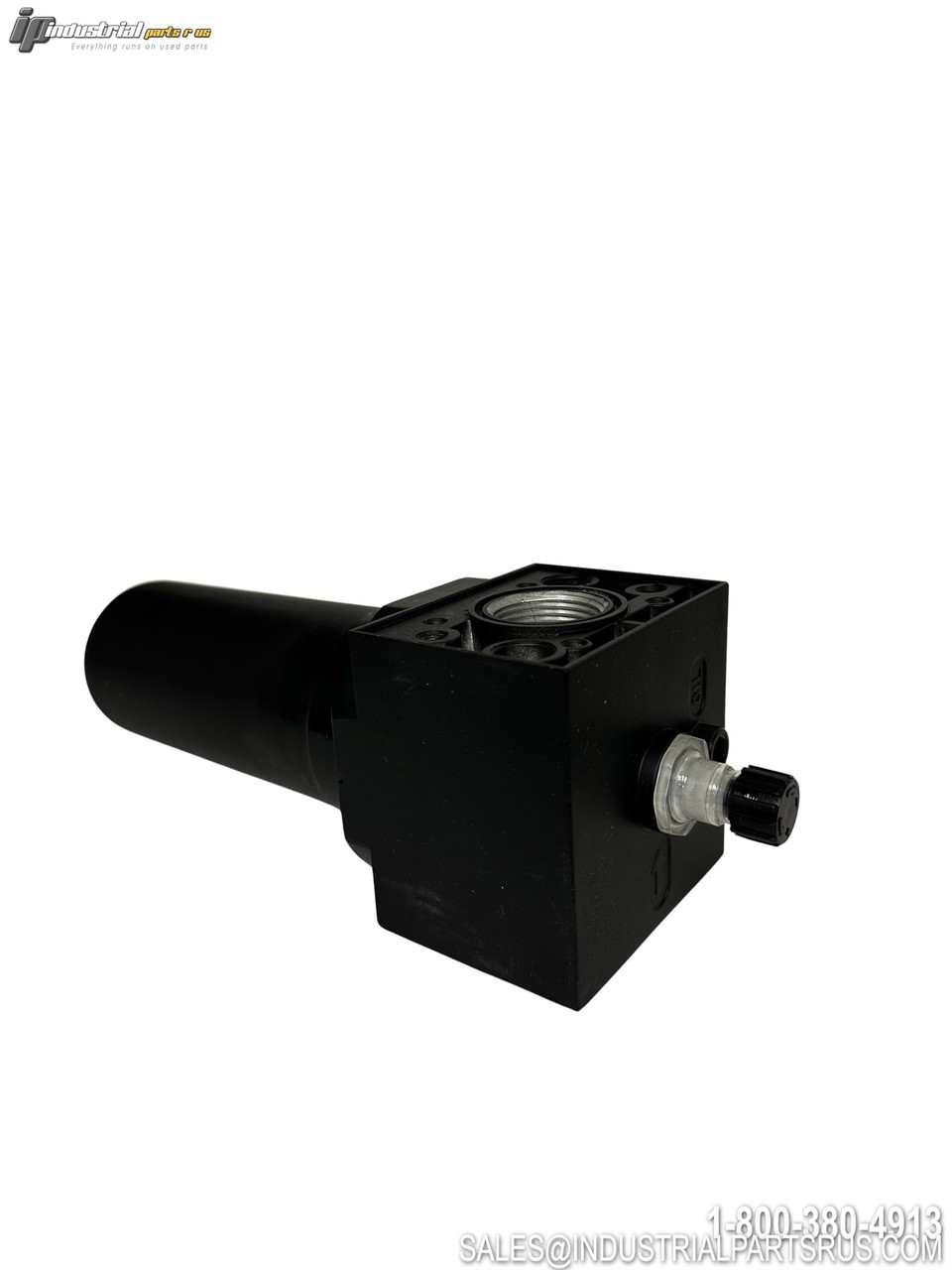

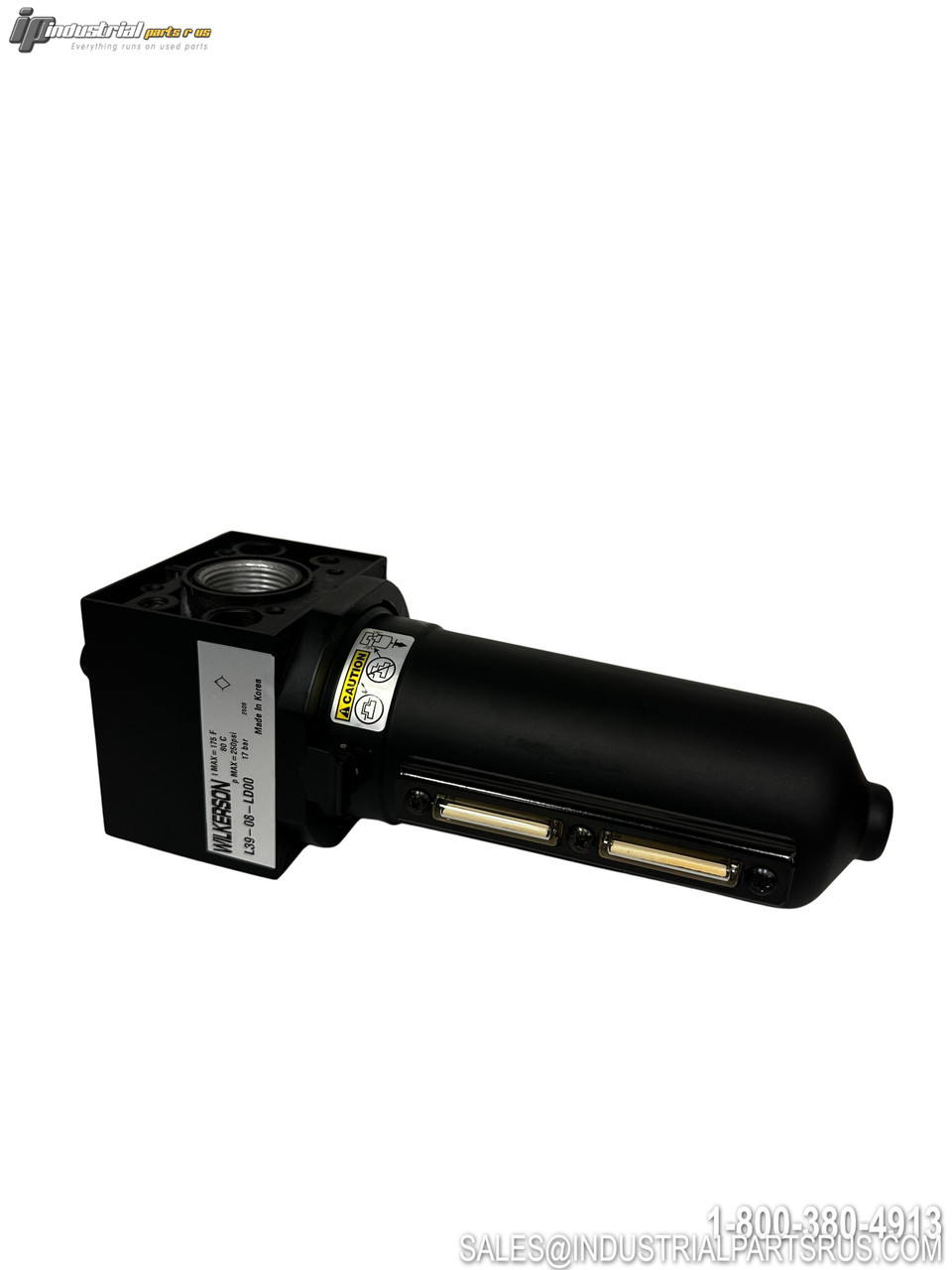

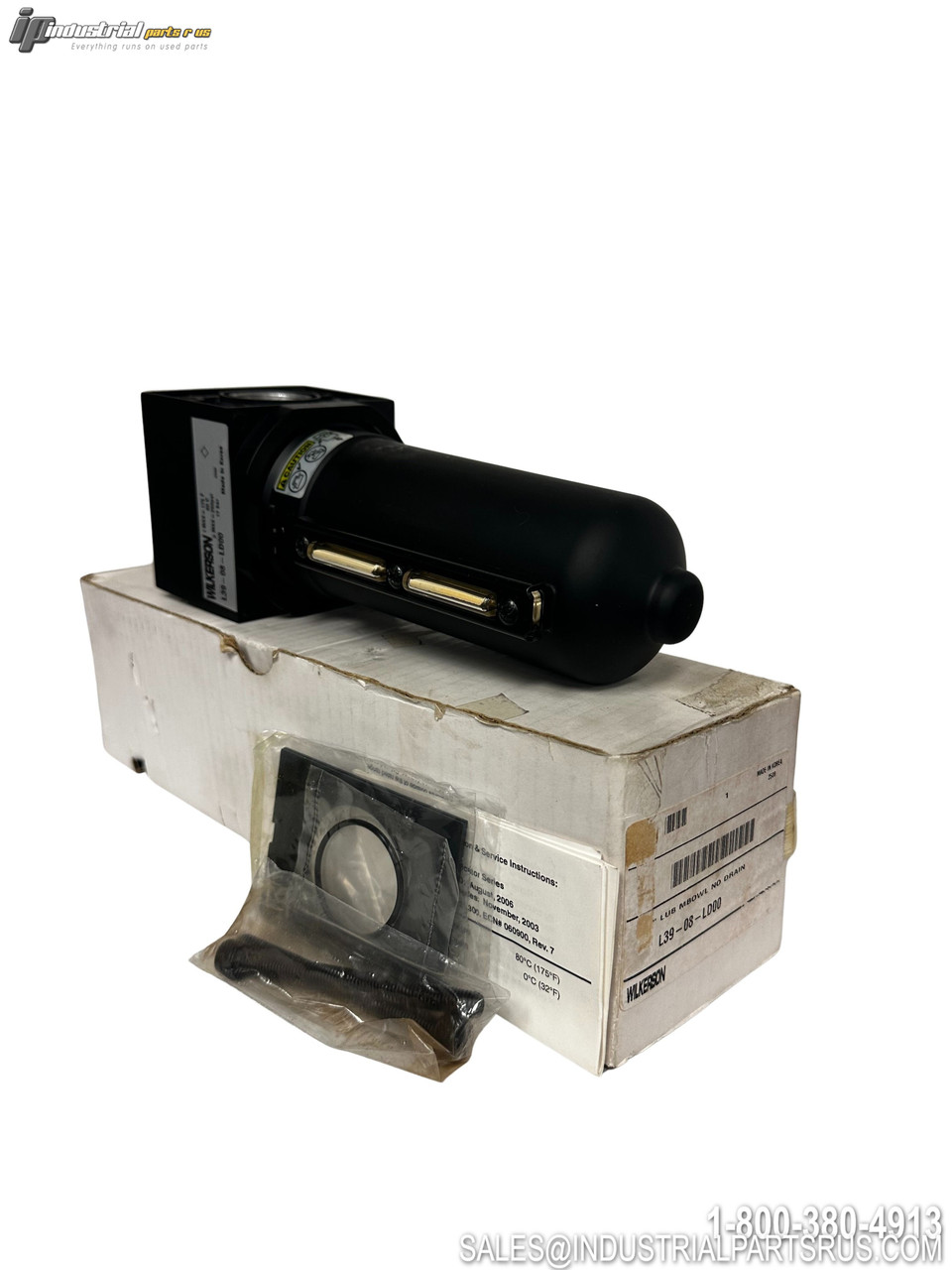

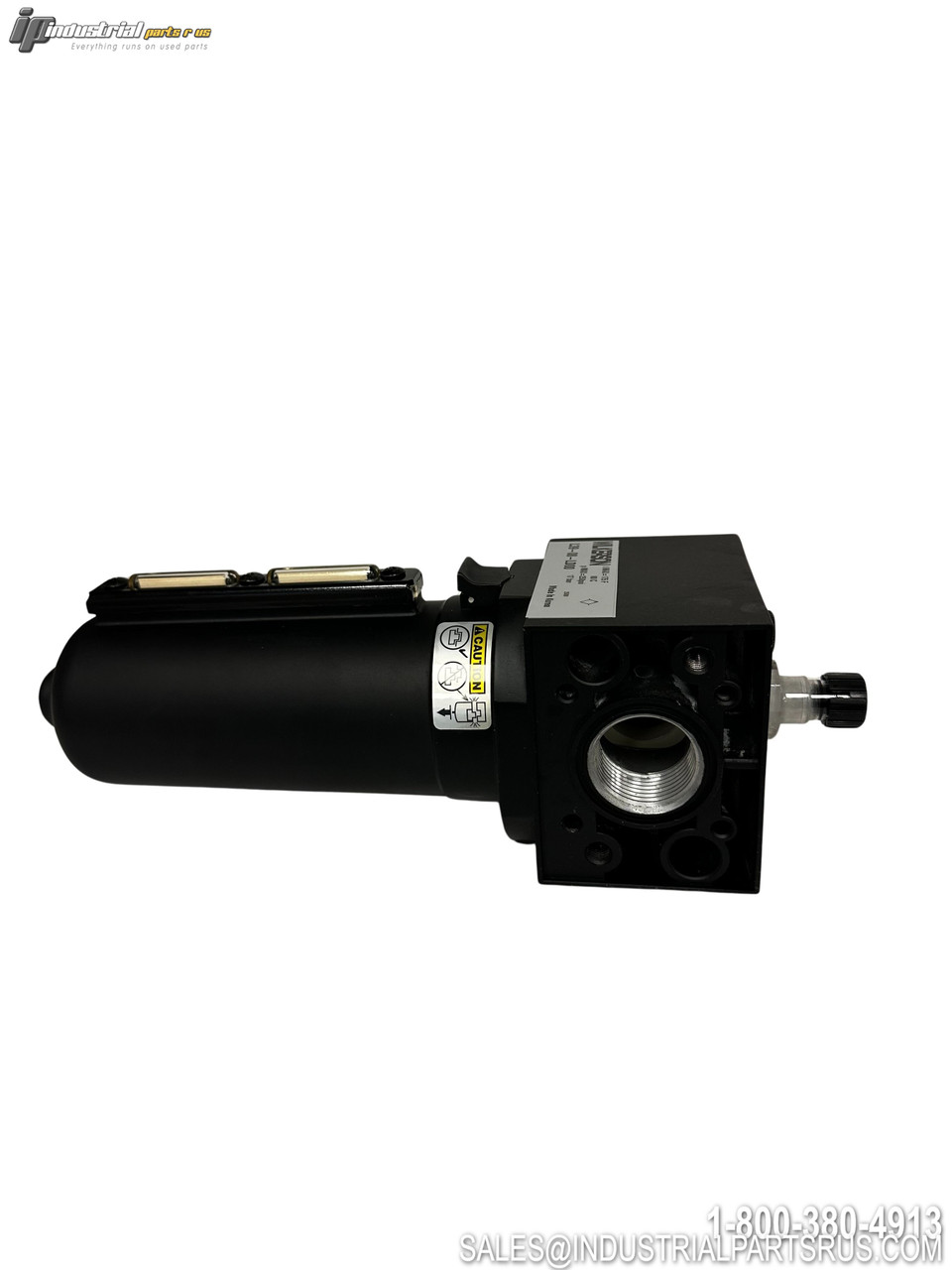

The Wilkerson L39-08-LD00 is a pneumatic air filter from the L39 EconOmist series designed for compressed air treatment applications. This unit features a 1" NPT port size with a maximum working pressure of 250 PSIG and flow capacity of 270 SCFM. It includes a metal bowl construction with sight gauge for visual monitoring and operates without a drain system.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | WILKERSON |
| Model/Part Number | L39-08-LD00 |
| Series | L39 EconOmist |
| Port Size | 1" NPT |
| Maximum Pressure | 250 PSIG (17.2 bar) |
| Flow Capacity | 270 SCFM (127 dm³/s) |
| Operating Temperature | 32° to 175°F (0° to 80°C) |
| Weight | 3.5 lb (1.6 kg) |
| Body Material | Aluminum |
| Bowl Material | Aluminum |
| Sight Dome Material | Polycarbonate |
| Seal Material | Nitrile |
| Sight Gauge Material | Polyamide (Nylon) |
| Drain Type | No Drain |
| Bowl Type | Metal with Sight Gauge |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Korea
GTIN 679523686185
Application Pneumatic System Air Preparation
Manufacturer Wilkerson
Part Number L39-08-LD00
Shelf K-46
Model L39-08-LD00
MPN L39-08-LD00
Type Air Filter
