Product Description

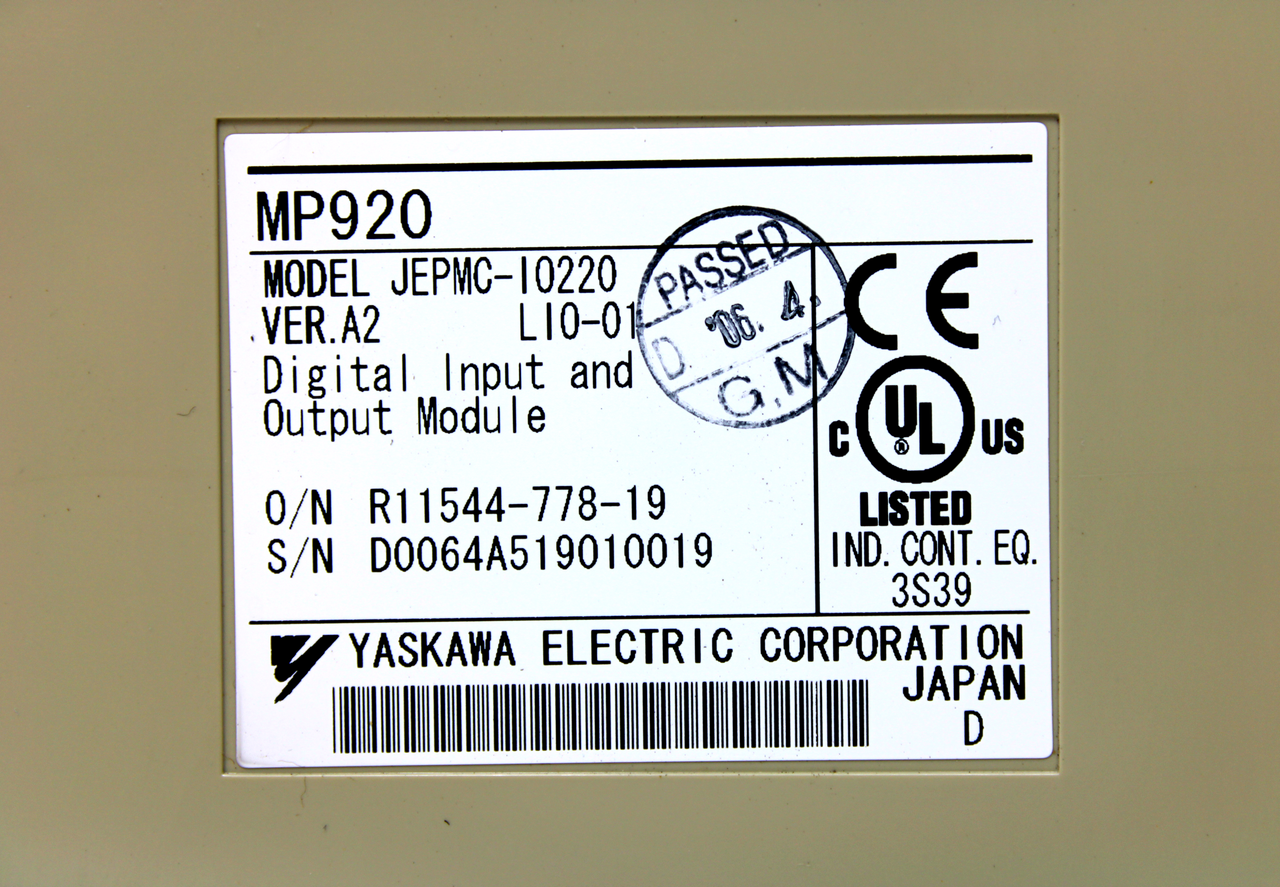

Yaskawa Electric JEPMC-IO220 Ver. A2 Digital Input and Output Module, 35V DCINPUT SIGNALS:
-32 Points
-Working Voltage: 19.2 to 28.8V DC / 35VDC (Peak)
-Rated Current: 4.9 mA/24VDC
-Operating Voltages: ON VOLTAGE: 15V DC or more / OFF VOLTAGE: 5V DC or less
-Off Current: 1.0 mA Max.
-Current Consumption: 100mA
OUTPUT SIGNALS:
-32 Points
-Load Voltage: 19.2 to 28.8 VDC / 35V DC (Peak)
-Load Current: 0.1A/ Circuit, 0.8A/ Common
-ON Voltage: 0.5 V max. (10 ms max.)
-External Power Supply: 24VDC ±20% - 60mA
-Fuse Rating: 1.5 A
-Response Time: Off to On: 0.5 ms or less On to Off: 1.5 ms or less
-Current Consumption: 400mA
MADE IN JAPAN
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type PLC Input/output Module
MPN JEPMC-IO220
Model JEPMC-IO220
Shelf E-8 Tub 8
Part Number JEPMC-IO220
Manufacturer Yaskawa Electric Corp.
Country/Region of Manufacture Japan
