Product Description

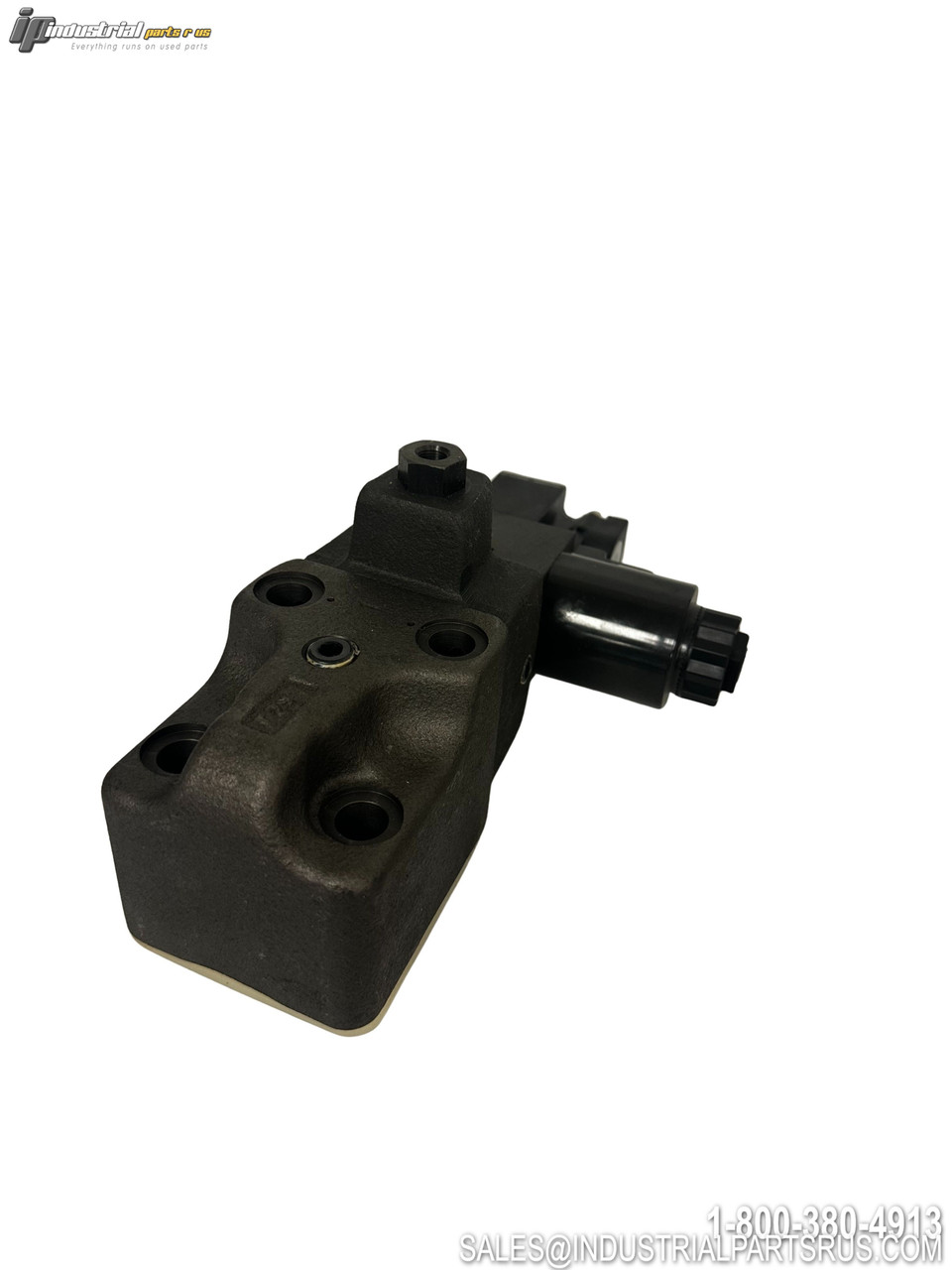

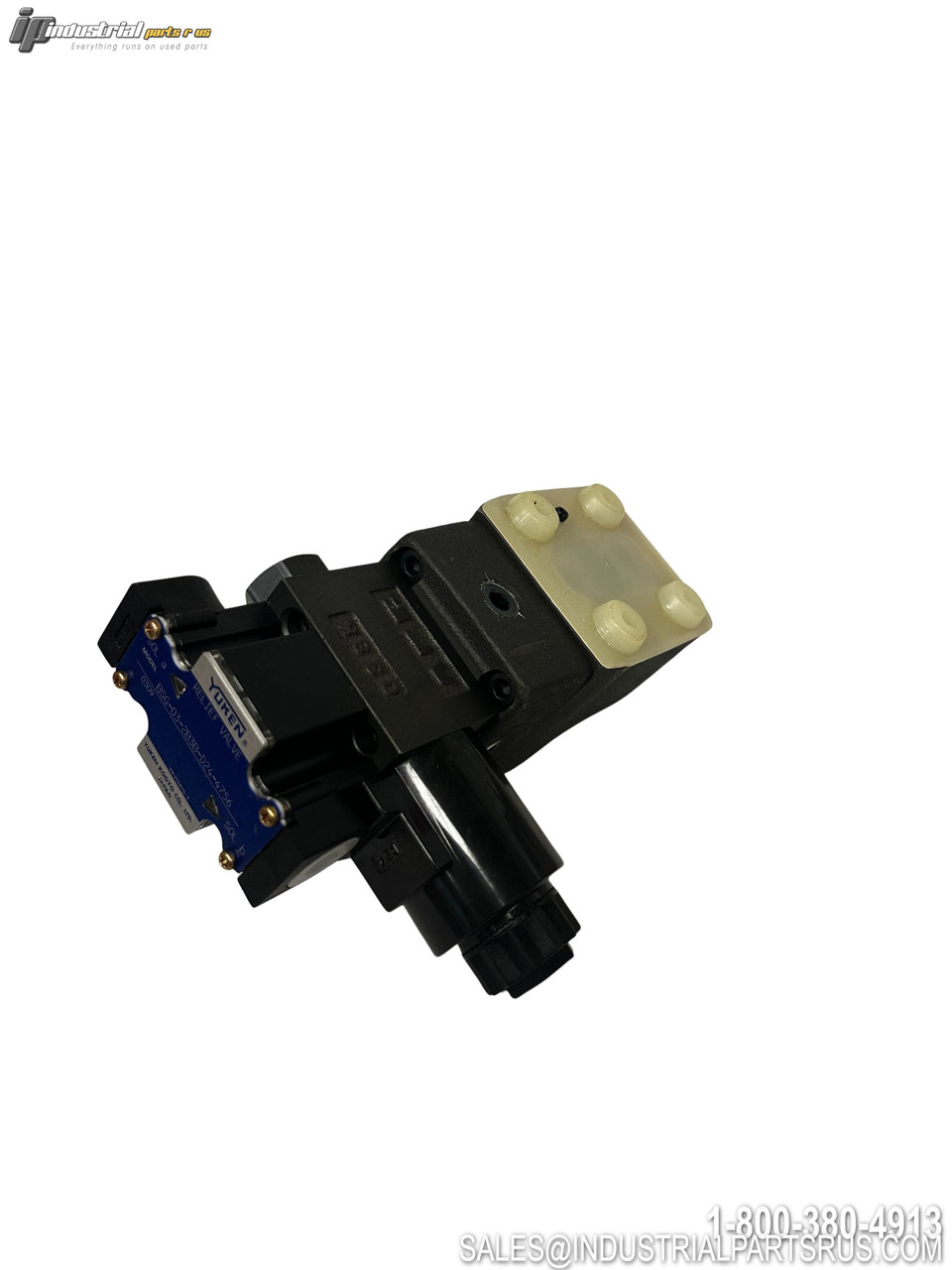

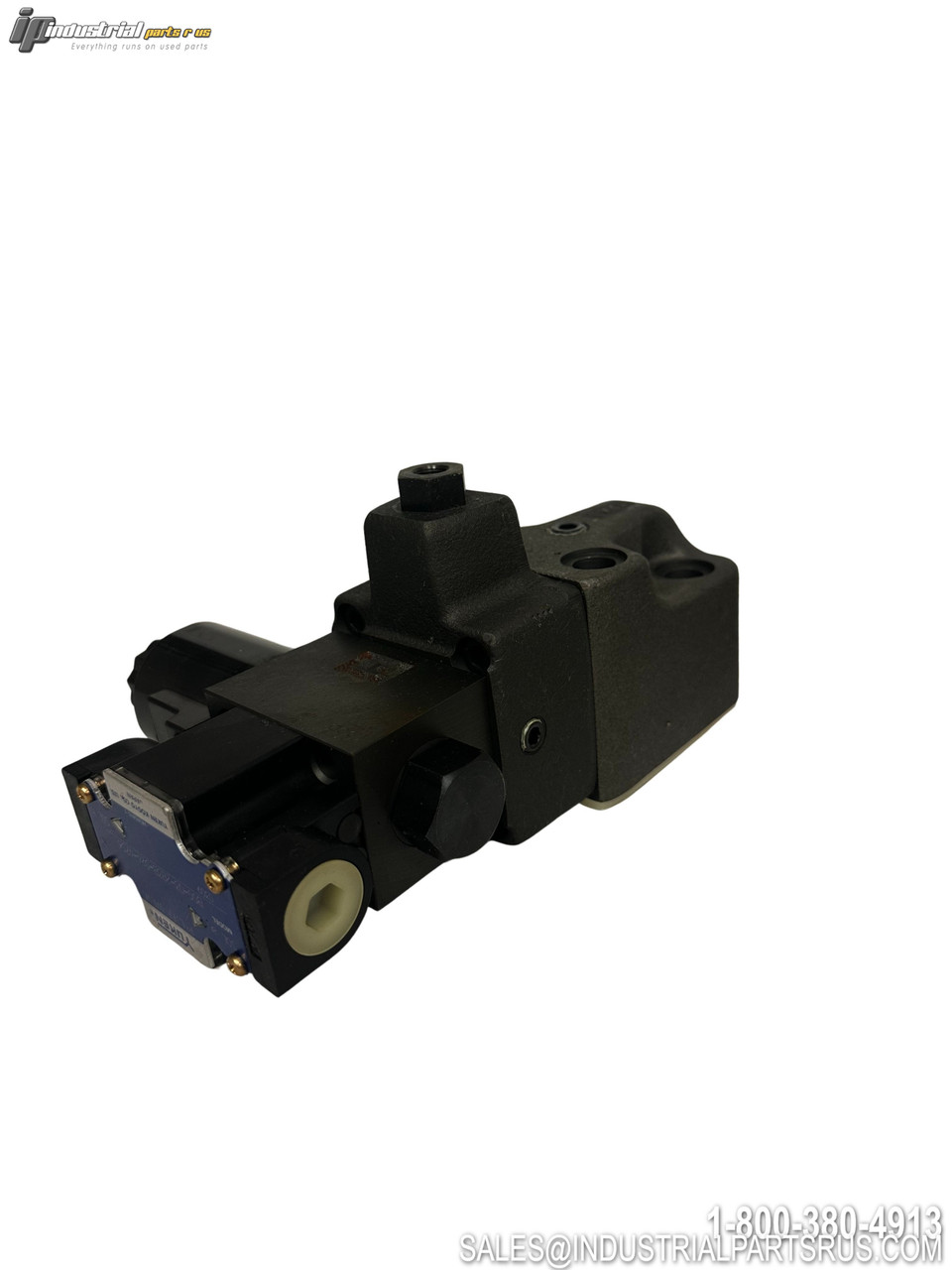

The YUKEN BSG-03-2B3B-D24-4756 is a solenoid controlled relief valve that combines a pilot operated relief valve with a solenoid operated directional valve. This solenoid-controlled pilot-operated relief valve eliminates piping between components as the solenoid valve is directly mounted on the relief valve and connected to the vent, allowing pump pressure to be unloaded remotely by electrical signal. It regulates hydraulic system pressure to prevent overload, ensuring safe and consistent operation of hydraulic actuators and circuits.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | YUKEN |
| Model/Part Number | BSG-03-2B3B-D24-4756 |
| Type | Solenoid Controlled Relief Valve |
| Series | BSG-03 |
| Valve Size | 03 |
| Vent Type | 2B3B |
| Coil Voltage | 24VDC |
| Maximum Operating Pressure | 25 MPa (3630 PSI) |
| Maximum Flow Rate | 100 L/min (26.4 U.S. GPM) |
| Mounting Type | Threaded Connection |
| Design Standard | Design 48 |
| Approximate Mass | 6.8 kg (15.0 lbs) Single Solenoid |
| Connection Type | Terminal Box Type |
| Application | Hydraulic Pressure Control |
| Function | Relief Valve with Remote Solenoid Control |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Equipment Type Hydraulic Valve
Manufacturer Yuken
Part Number BSG-03-2B3B-D24-4756
Shelf K-33
Model BSG-03-2B3B-D24-4756
MPN BSG-03-2B3B-D24-4756
Type Hydraulic Valve
