Product Description

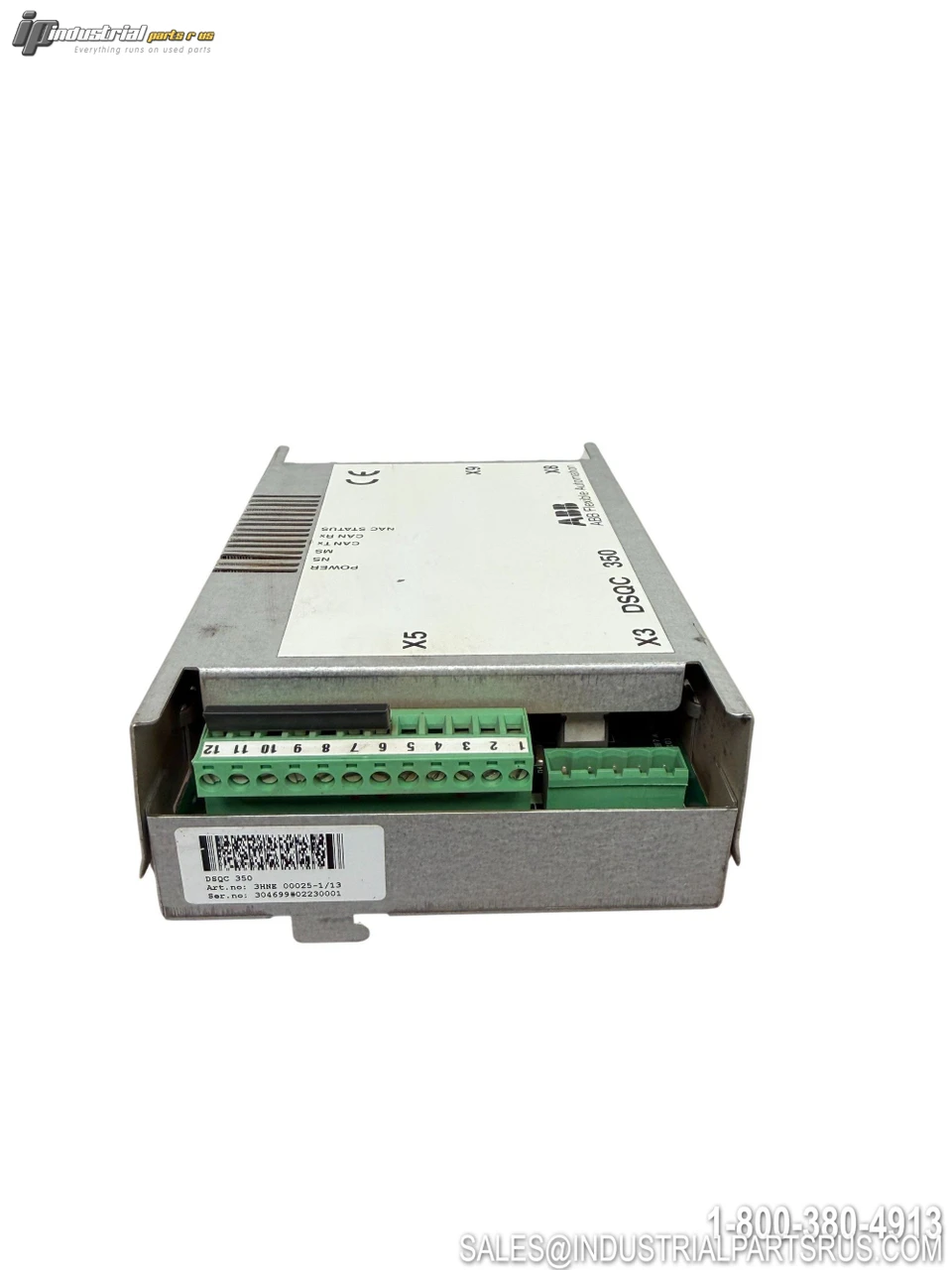

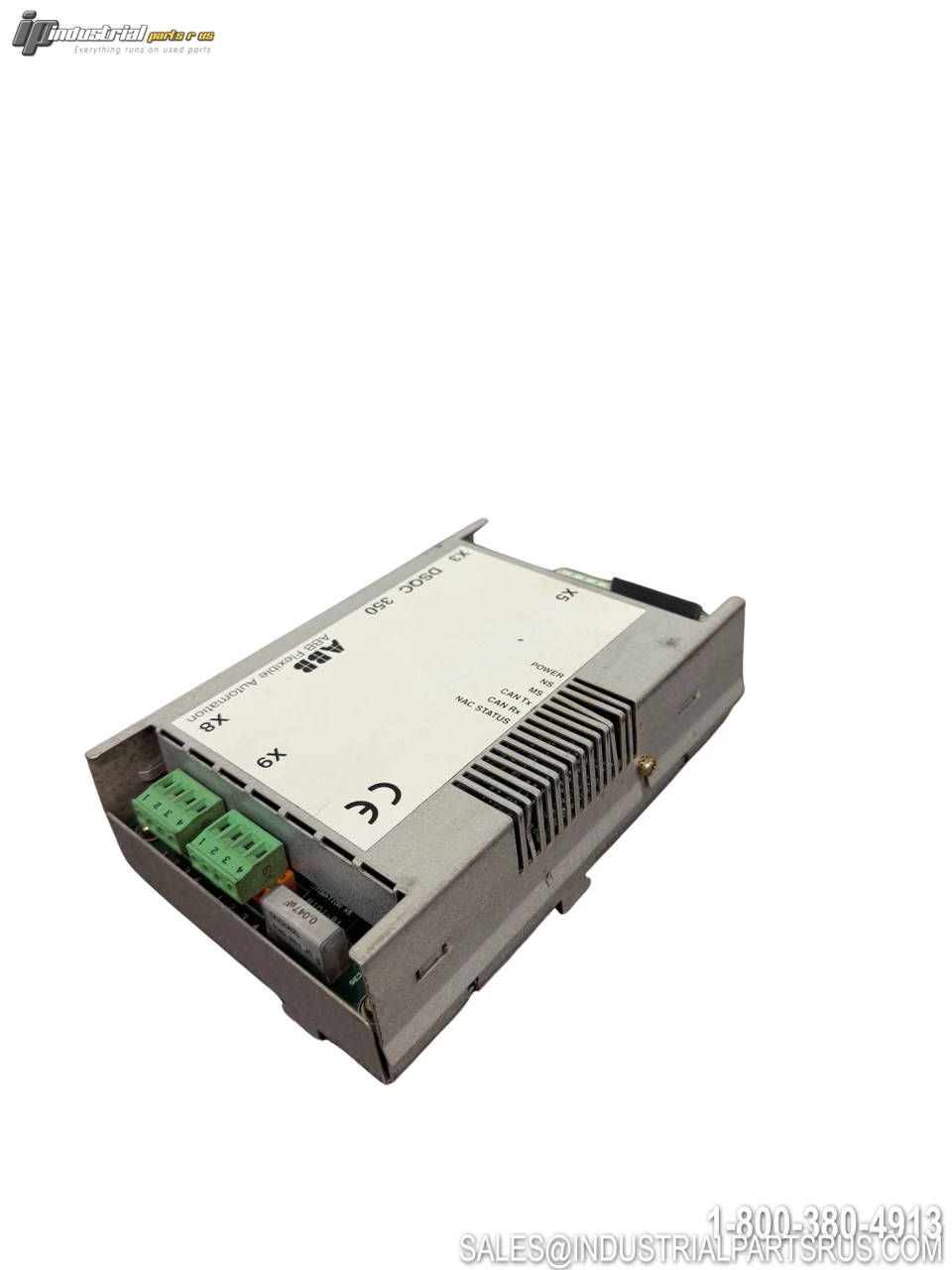

The ABB DSQC 350 (article number 3HNE 00025-1/13) is a DeviceNet/Allen-Bradley Remote I/O gateway module designed for use in ABB S4C and S4C+ robotic control systems. It functions as a slave gateway that bridges the ABB DeviceNet CAN fieldbus to the Allen-Bradley Remote I/O protocol, enabling seamless integration with Allen-Bradley PLCs and I/O infrastructure. The module supports up to 128 digital inputs and 128 digital outputs operating at 24 VDC and connects via the CAN/DeviceNet bus inside the robot controller cabinet.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | ABB |
| Manufacturer | ABB Flexible Automation (Asea Brown Boveri) |
| Model / Part Number | DSQC 350 3HNE 00025-1/13 |
| Article Number (Base) | 3HNE 00025-1 |
| Revision | /13 |
| Product Type | Communication Module — DeviceNet / Allen-Bradley Remote I/O Gateway |
| Function | Allen-Bradley Remote I/O Slave Gateway (DeviceNet to AB RIO protocol bridge) |
| Compatible Controllers | ABB S4C and S4C+ Robot Controllers |
| Communication Protocol (Robot Side) | DeviceNet (CAN bus) |
| Communication Protocol (Field Side) | Allen-Bradley Remote I/O (RIO) |
| Max Digital Inputs | 128 |
| Max Digital Outputs | 128 |
| I/O Voltage | 24 VDC |
| DeviceNet Data Rate (CAN1) | 500 Kbit/s (fixed) |
| DeviceNet Data Rate (CAN2) | 125 / 250 / 500 Kbit/s (selectable) |
| Max Cable Length (DeviceNet) | 100 m trunk + 39 m drop (CAN1); up to 500 m (CAN2) |
| Mounting Location | Inside or external to robot controller cabinet |
| Approximate Dimensions (W × H × D) | 120 mm × 100 mm × 80 mm |
| Alternate Part Numbers | DSQC350, DSQC-350, 3HNE00025-1/13, 3HNE-00025-1/13 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer ABB
Part Number DSQC 350 3HNE 00025-1/13
Controller Platform ABB S4C / S4C+
Shelf D-11 Tub 4
Model DSQC 350 3HNE 00025-1/13
MPN DSQC 350 3HNE 00025-1/13
Type Communication Module
