Product Description
The Acme Electric T2535153S is a 7.5 kVA general purpose transformer designed for industrial and commercial power applications. The unit is rated for a 240 x 480 VAC primary and 120/240 VAC secondary at 60 Hz. It features a shielded design for cleaner power and is housed in a durable metal enclosure. Electrical ratings and specifications below are based on the unit's manufacturer nameplate.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Acme Electric |
| Catalog Number | T2535153S |
| Product Type | General Purpose Transformer |
| Style | SR |
| Power Rating | 7.5 kVA |
| Primary Voltage | 240 x 480 VAC |
| Secondary Voltage | 120/240 VAC |
| Frequency | 60 Hz |
| Primary Taps | 4 FC Taps |
| Impedance | 2.40% |
| Temperature Rise | 135°C |
| Winding Rise | 115°C |
| Insulation System | Class 155 |
| Shielded | Yes |
| Enclosure | Type 3R Outdoor |
| Weight | 110 lb |
| Country of Manufacture | Mexico |

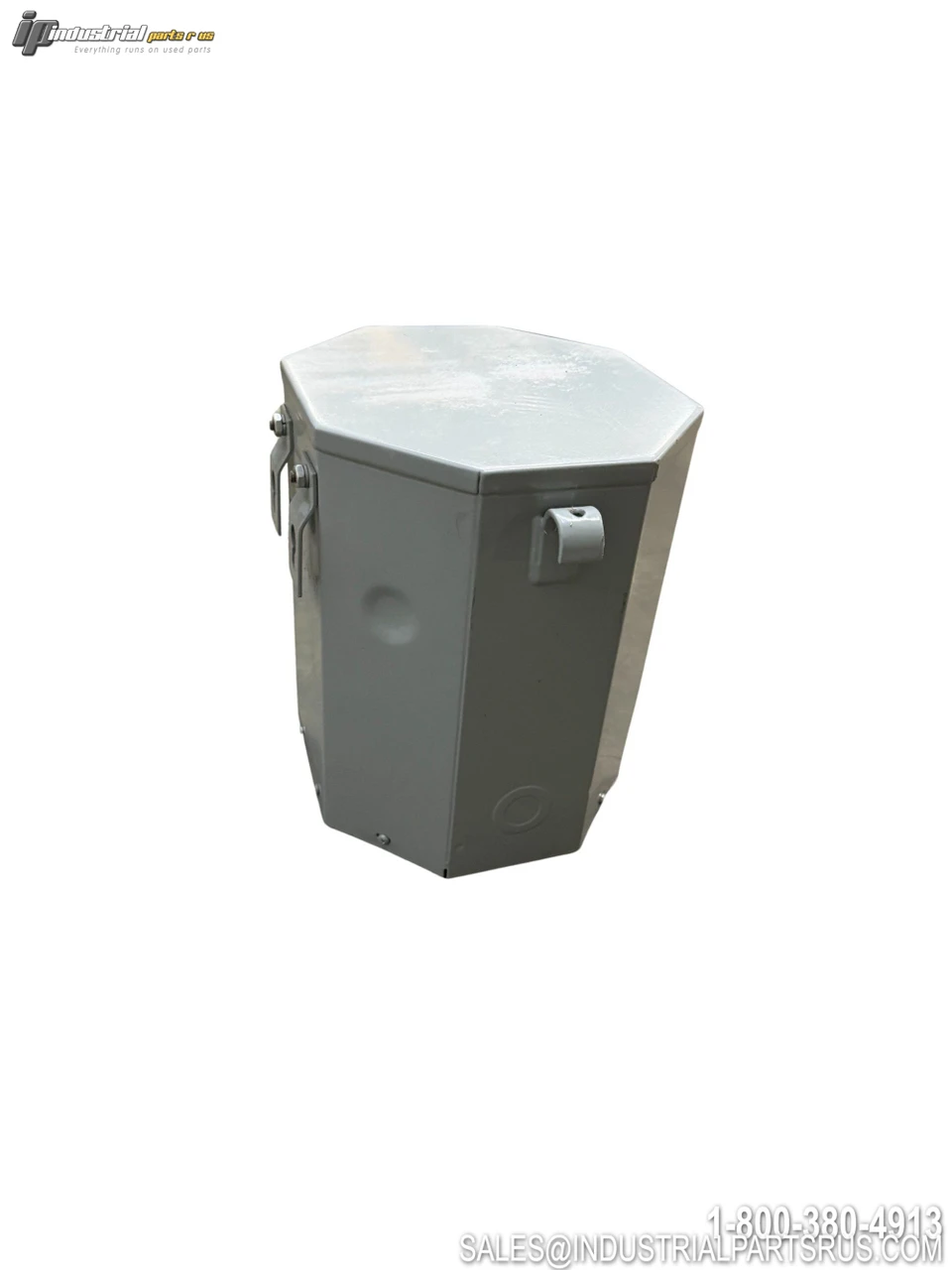

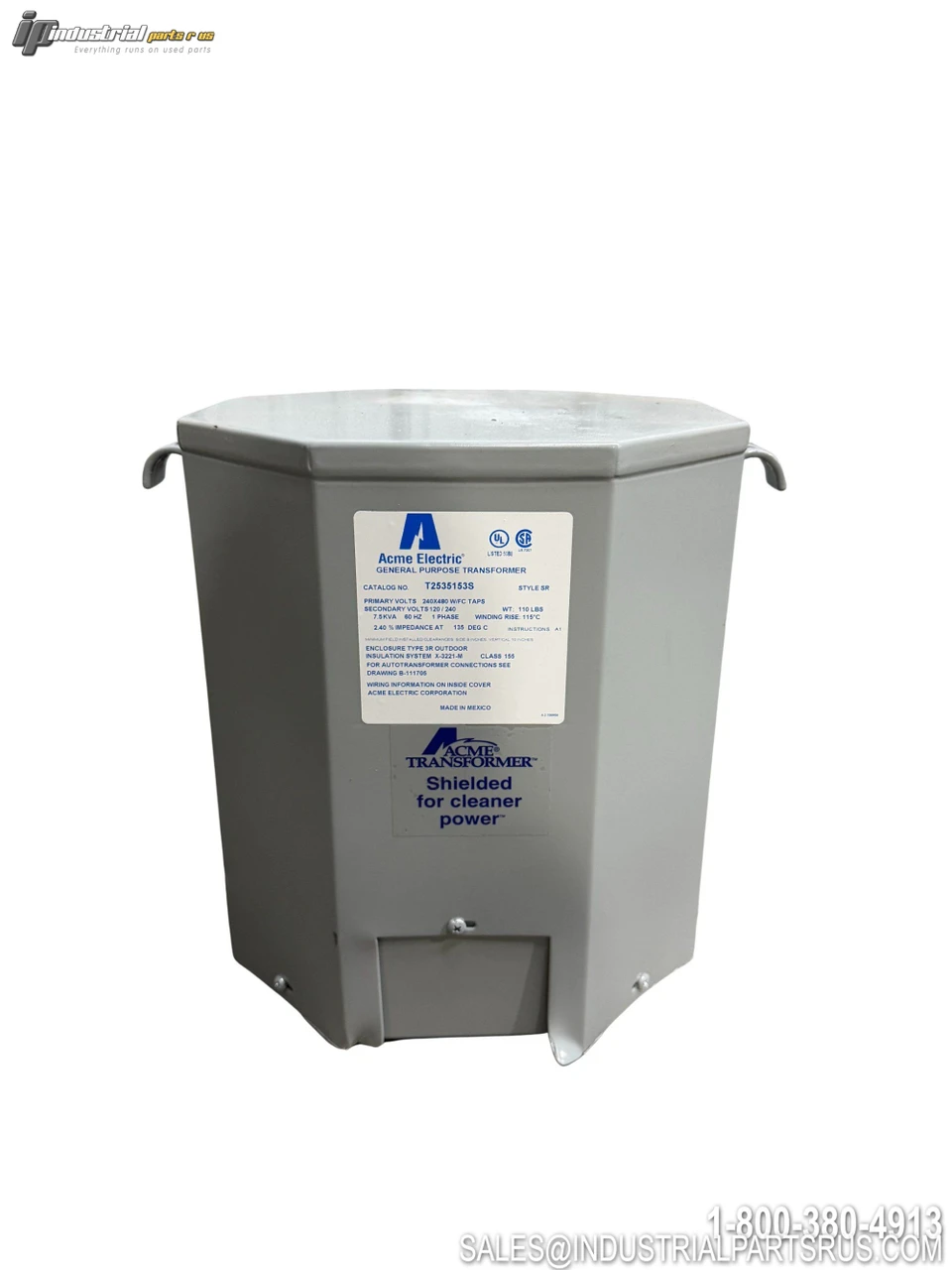

Please refer to the photos for the exact configuration, connections, and physical condition of the unit.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Acme Electric
Enclosure Type NEMA 3R
Part Number T2535153S
Shelf I-23
Model T2535153S
MPN T2535153S
Type Transformer
