Product Description

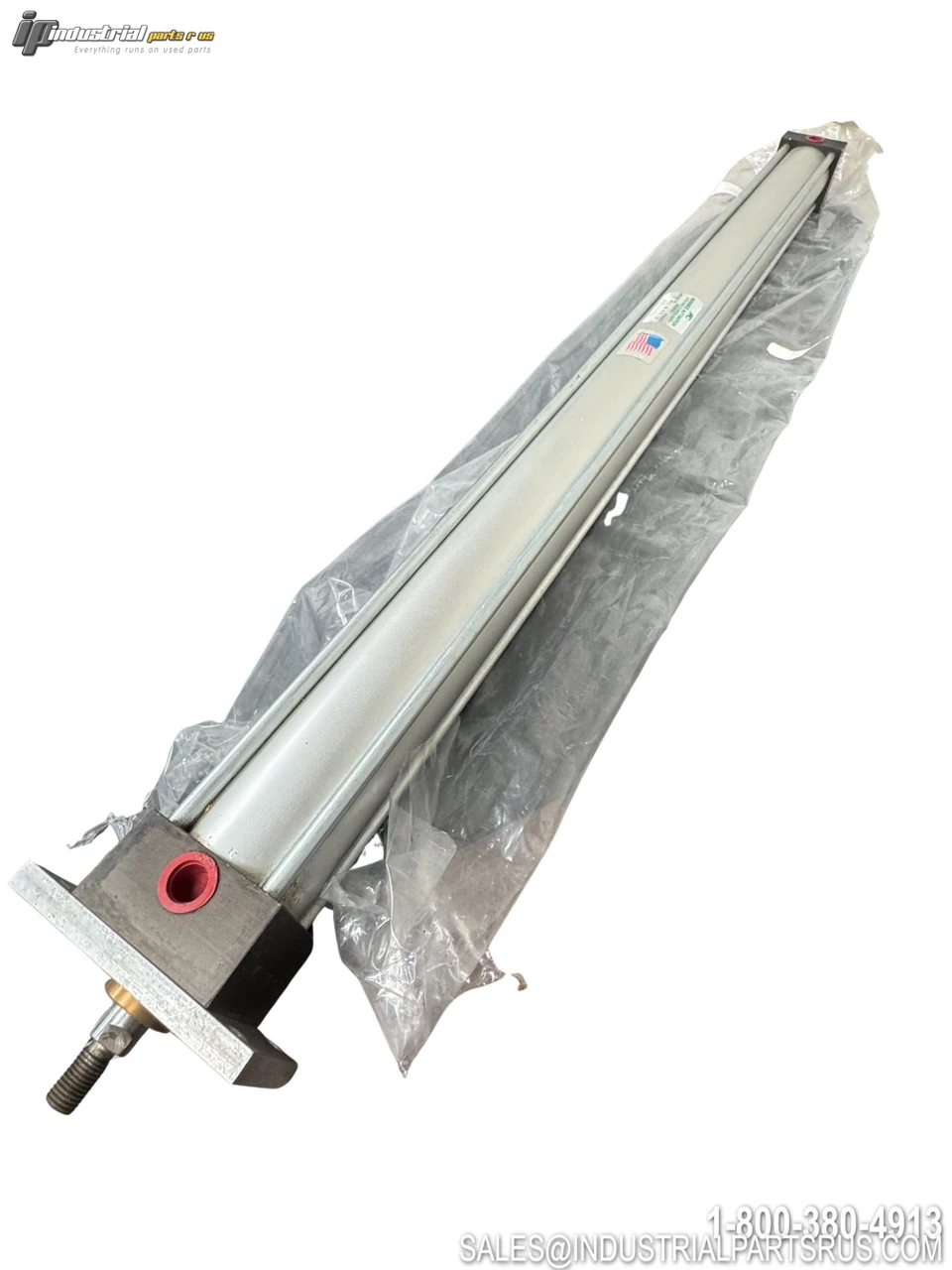

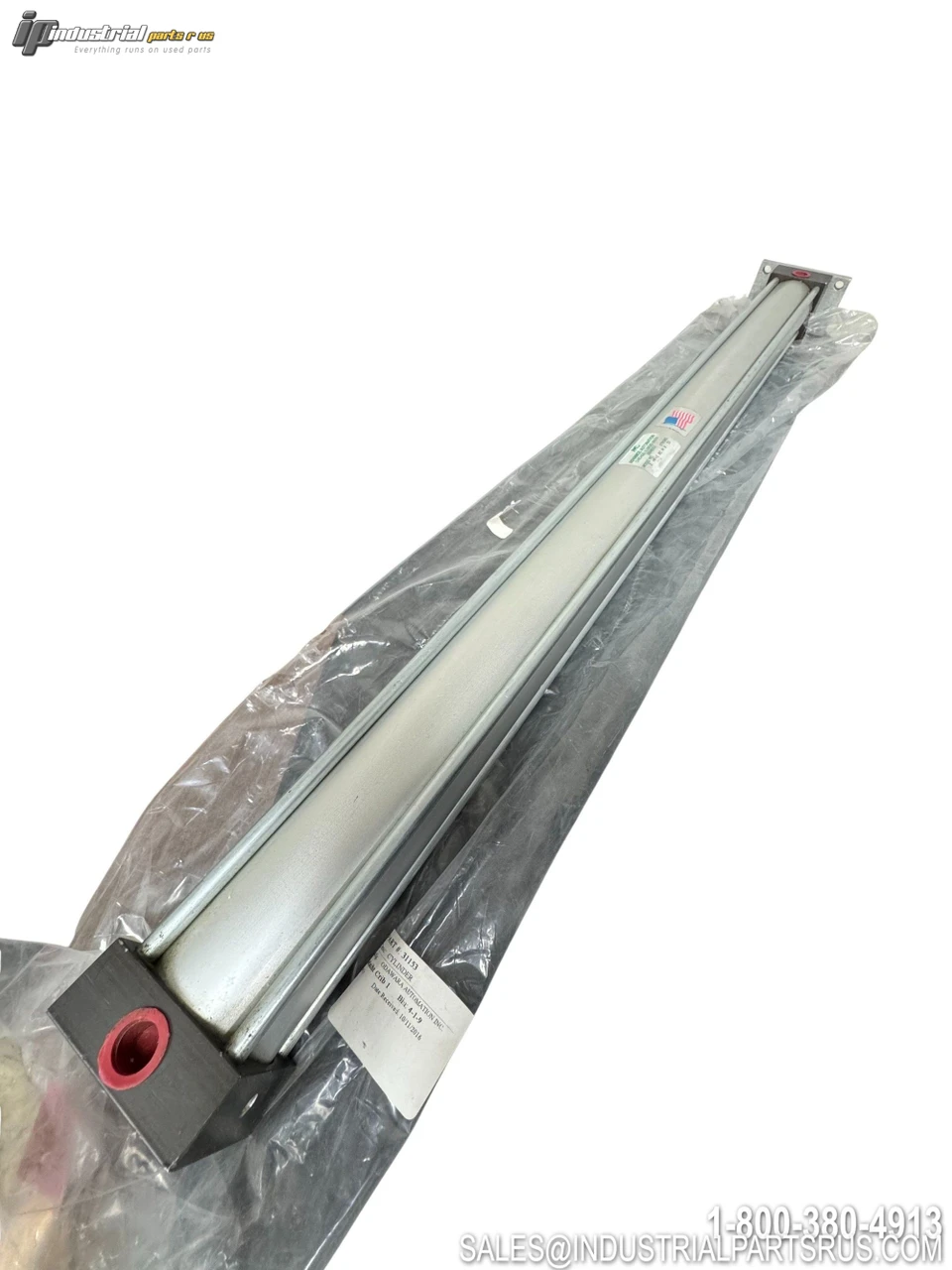

The Advanced Automation 2 MF-1RC M V is a Series I NFPA-interchangeable aluminum pneumatic cylinder featuring a 2-inch bore with an MF1 (front/head rectangular flange) mounting style. This cylinder is configured with a rod clevis (RC) rod end, magnetic piston (M) for position sensing compatibility, and Viton (V) seals for enhanced chemical and temperature resistance. Advanced Automation cylinders are built around an advanced design concept using high-grade extruded aluminum caps and heads, cast bronze bushings, nylon piston bearing strips, and a unique cushion design.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Advanced Automation |
| Model / Part Number | 2 MF-1RC M V |
| Product Type | Pneumatic Cylinder |
| Series | NFPA I-Series |
| Bore Diameter | 2 in |
| NFPA Mount Style | MF1 – Head Rectangular Flange |
| Cushion Type | RC – Rod/Head-End Adjustable Cushion |
| Piston Type | M – Magnetic (position-sensing compatible) |
| Seal Material | V – Viton (FKM) |
| Cylinder Action | Double-Acting |
| Max Operating Pressure (Pneumatic) | 250 PSI |
| Max Operating Pressure (Non-Shock Hydraulic) | 250 PSI |
| NFPA Interchangeable | Yes |
| Suitable Media | Compressed Air / Non-Shock Hydraulic |
| Rod Type | Single Rod |
| Body Material | Hard Anodized Aluminum |
| Rod Material | Hard Chrome Plated Steel |
| Rod Bushing | Cast SAE 660 Bronze |
| Port Size (Standard) | 3/8 NPT |

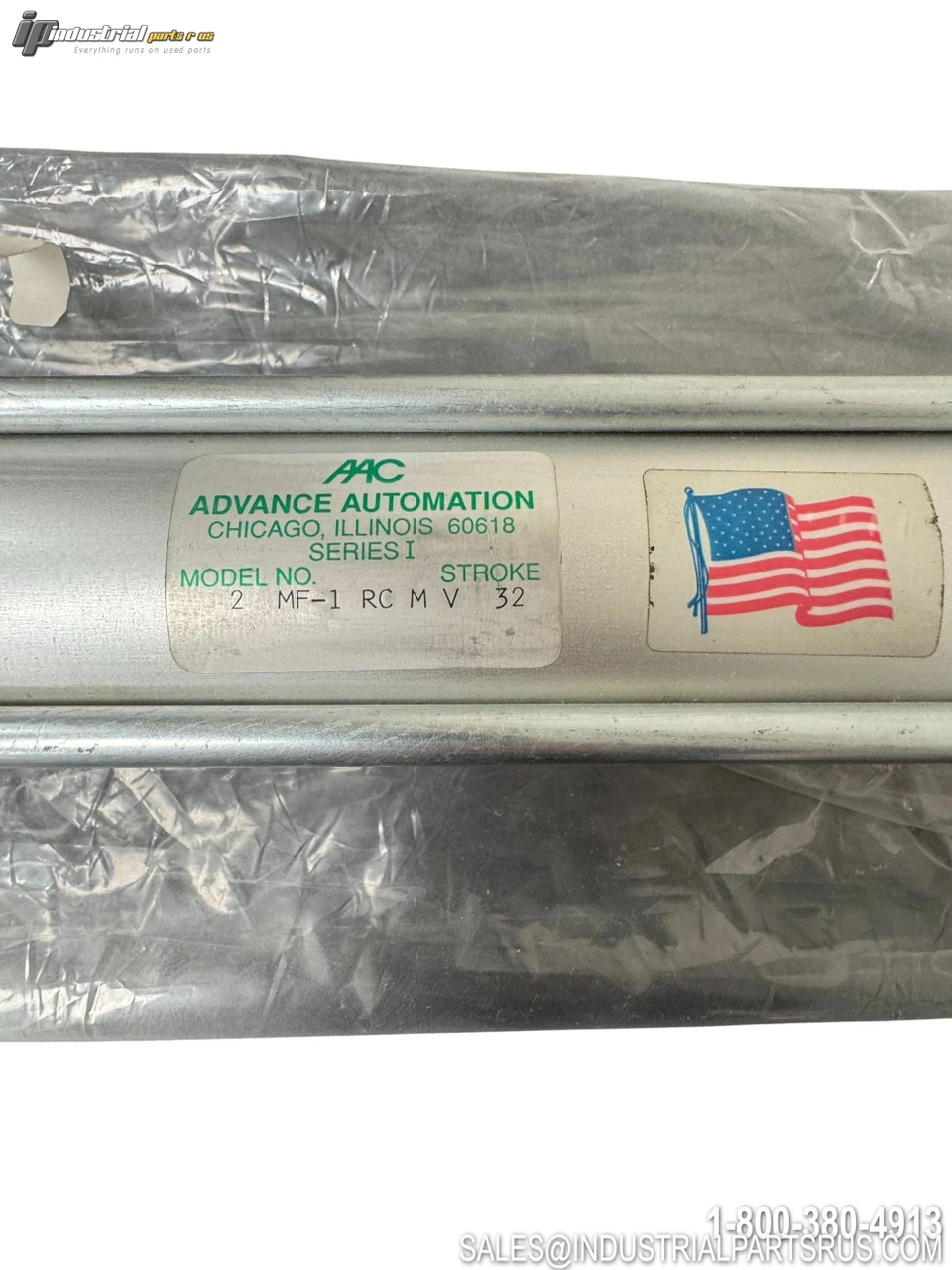

| Stroke Note | See label / as specified at time of order |
| Manufacturer | Advance Automation Company (AAC) |
| Made In | USA |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Advanced Automation
Part Number 2 MF-1RC M V
Shelf B-7
Bore Diameter 2 in
Model 2 MF-1RC M V
MPN 2 MF-1RC M V
Type Pneumatic Cylinder
