Product Description

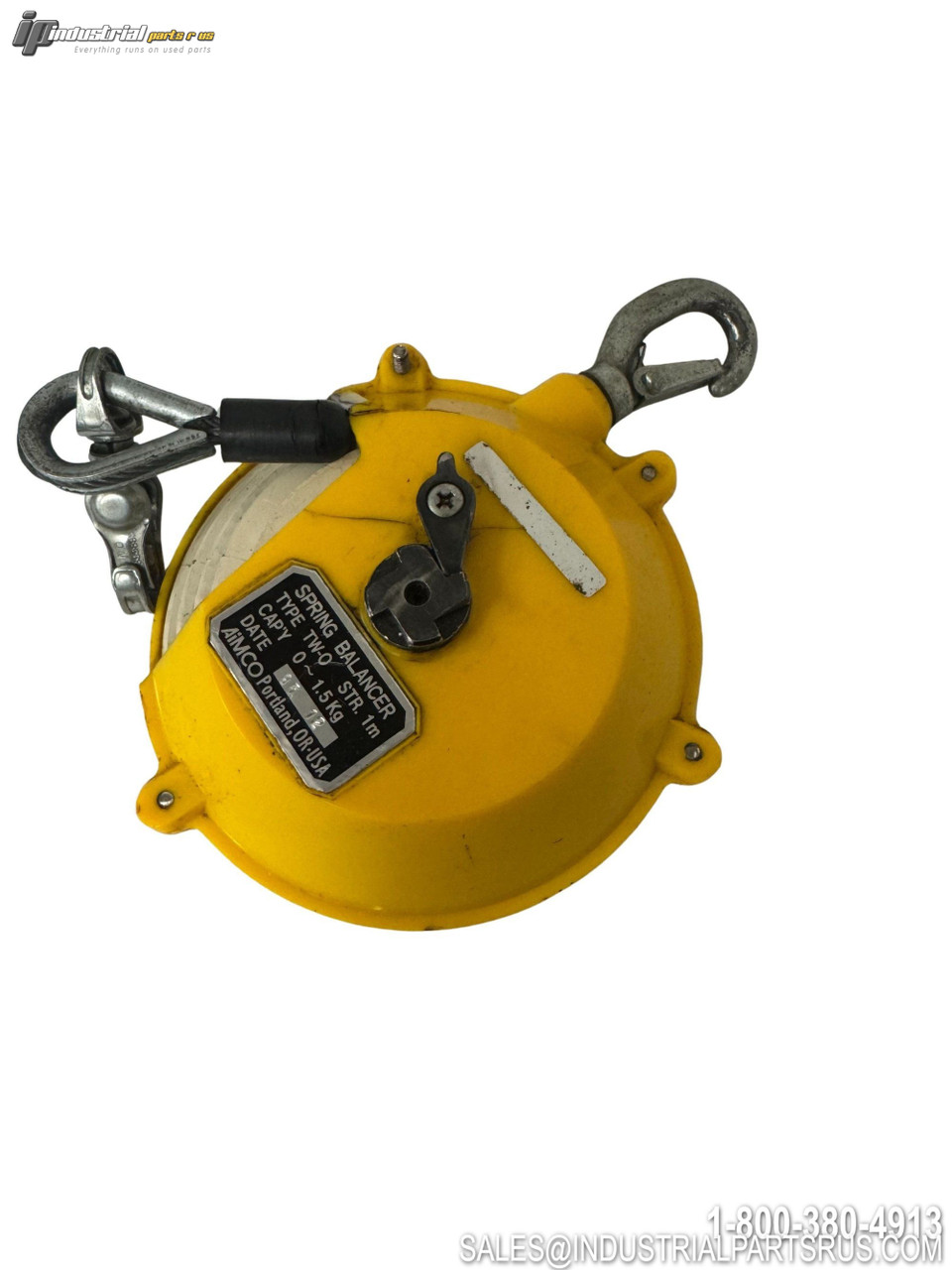

The Aimco TW-0 is a lightweight spring tool balancer designed to support and suspend assembly tools weighing between 0 and 1.5 kg (0–3.3 lbs), providing gravity-defying "true balance" that eliminates tension build-up and reduces worker fatigue. It features easy external direct drive tensioning, a 360-degree upper swivel, and a 3.3 ft. (1 m) aircraft-grade stranded steel cable of 1/8" diameter. The TW-0 is suited for light assembly line applications where ergonomic tool support and operator comfort are critical.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Aimco |
| Model / Part Number | TW-0 0~1.5Kg |
| Product Type | Spring Tool Balancer (Gravity Defying / True Balancer) |
| Weight Capacity (Max) | 1.5 kg (3.3 lbs) |
| Weight Capacity (Min) | 0.5 kg (1.1 lbs) |
| Cable Length / Stroke | 1 m / 3.3 ft (approx. 18 in stroke travel) |
| Cable Type | Aircraft stranded steel, 1/8" (3.2 mm) diameter |
| Body Diameter | 3.7 in (95 mm) |
| Body Width | 1.5 in (38 mm) |
| Unit Weight | 0.2 kg (0.44 lbs) |
| Swivel | 360° upper swivel |
| Tensioning | Easy external direct drive tensioning |
| Safety Cable Provision | Yes |
| Included Accessories | Tool clip included |
| Balancer Series | TW Series |
| Application | Lightweight assembly tools, pneumatic screwdrivers, hand tools |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture United States
Manufacturer Aimco
Part Number TW-0 0~1.5KG
Shelf D-6
Model TW-0 0~1.5KG
MPN TW-0 0~1.5KG
Type Other
