Product Description

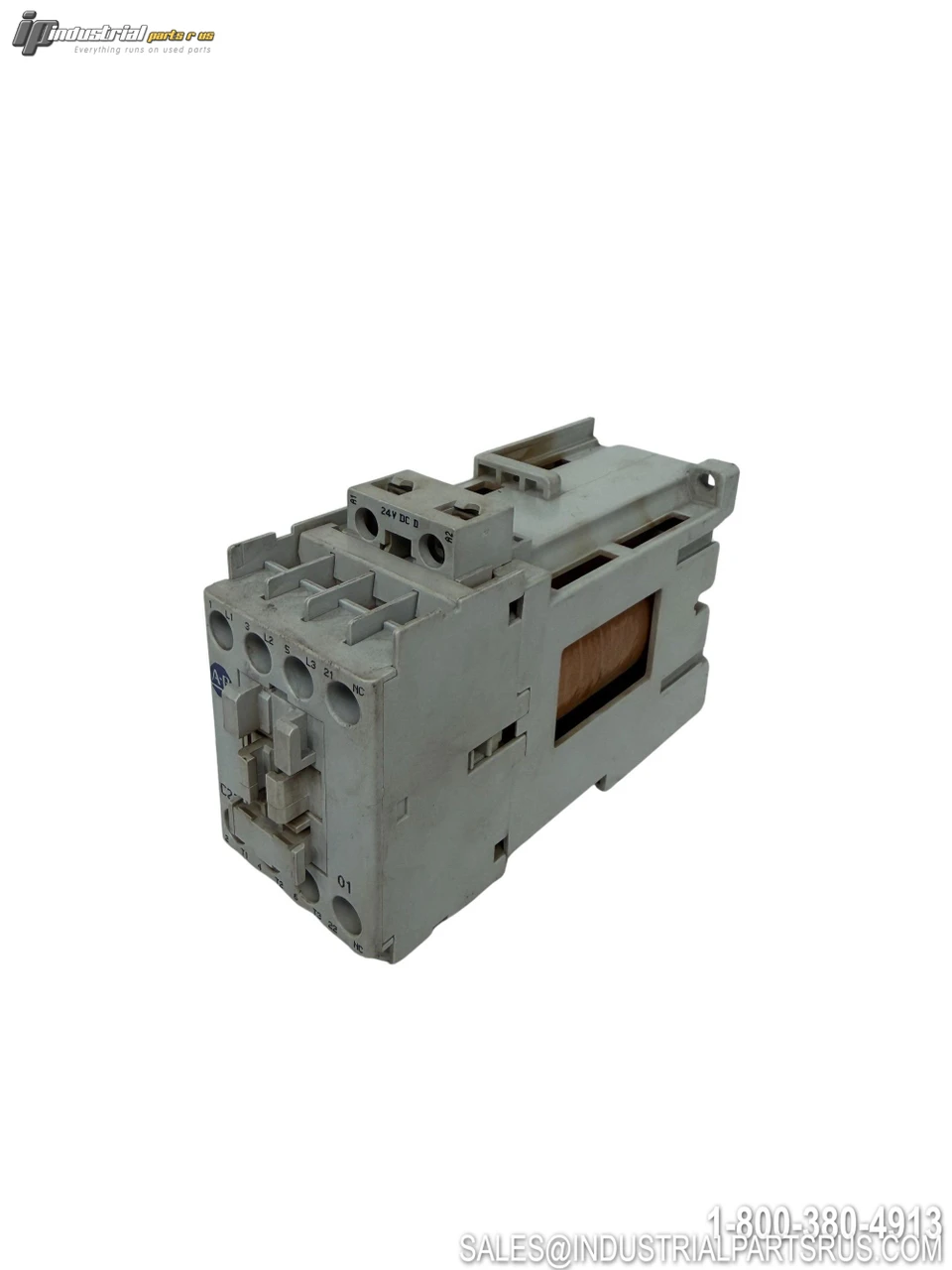

The Allen-Bradley 100-C23Z*01 is a Bulletin 100-C IEC contactor designed for industrial motor control and load-switching applications. This unit features a 3-pole configuration and includes one normally closed (NC) auxiliary contact.
The complete device number shown on this unit is 100-C23DJ01. The main contactor marking is 100-C23Z*01, Series C. The asterisk (*) is part of the catalog marking shown on the unit and represents additional coil/catalog information.
The exact coil/control voltage should be verified from the coil markings before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 100-C23Z*01 |
| Complete Device Number | 100-C23DJ01 |
| Series | C |
| Product Type | IEC Contactor |
| Product Family / Bulletin | Bulletin 100-C |
| Number of Poles | 3 |
| Auxiliary Contact | 1 N.C. (Normally Closed) |
| AC-1 Rating | 690V / 32A |
| AC-12 Rating | 25A |
| AC-3 Motor Ratings | 7.5 kW @ 230V; 7.5 kW @ 240V; 11 kW @ 400V; 11 kW @ 415V; 11 kW @ 500V; 10 kW @ 690V |
| Maximum UL Voltage | 600 VAC |
| General Purpose Rating | 30A |
| 3-Phase Motor Rating @ 200V | 5 HP |
| 3-Phase Motor Rating @ 230V | 7.5 HP |
| 3-Phase Motor Rating @ 460V | 15 HP |
| 3-Phase Motor Rating @ 575V | 15 HP |
| Coil / Control Voltage | Not Identified - Verify Coil Markings |
| Standards | IEC 60947-4-1 / IEC 60947-5-1 |
| Mounting Type | DIN Rail / Panel Mount |
| Country of Manufacture | Switzerland |
| Manufacturer | Allen-Bradley |
Important: The main contactor is marked 100-C23Z*01. The exact coil/control voltage is not confirmed from the visible markings. Please verify the coil information and review all photos for the exact configuration, markings, and condition of the item being sold.
We warranty all items for 30 days from date of purchase.
