Product Description

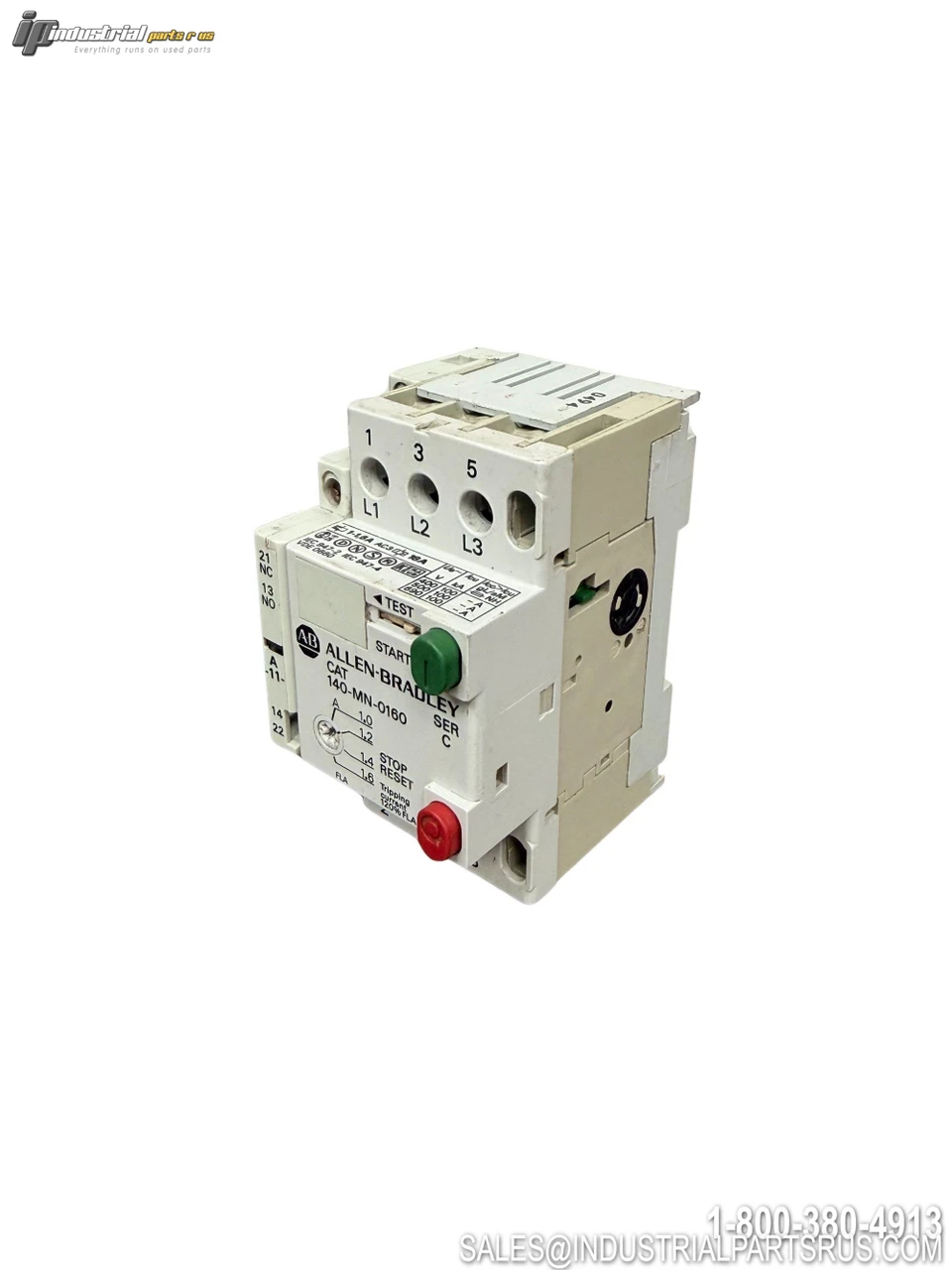

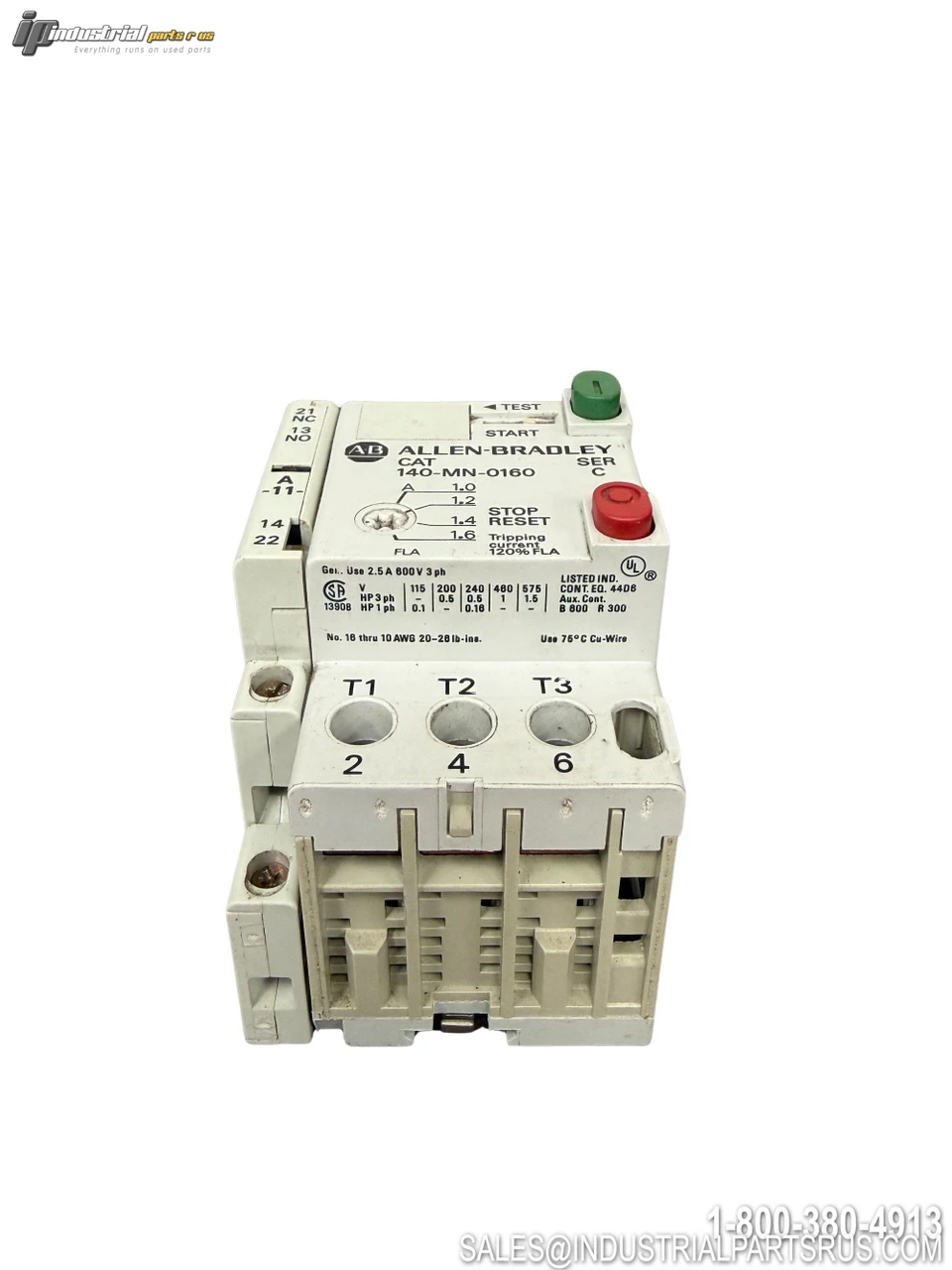

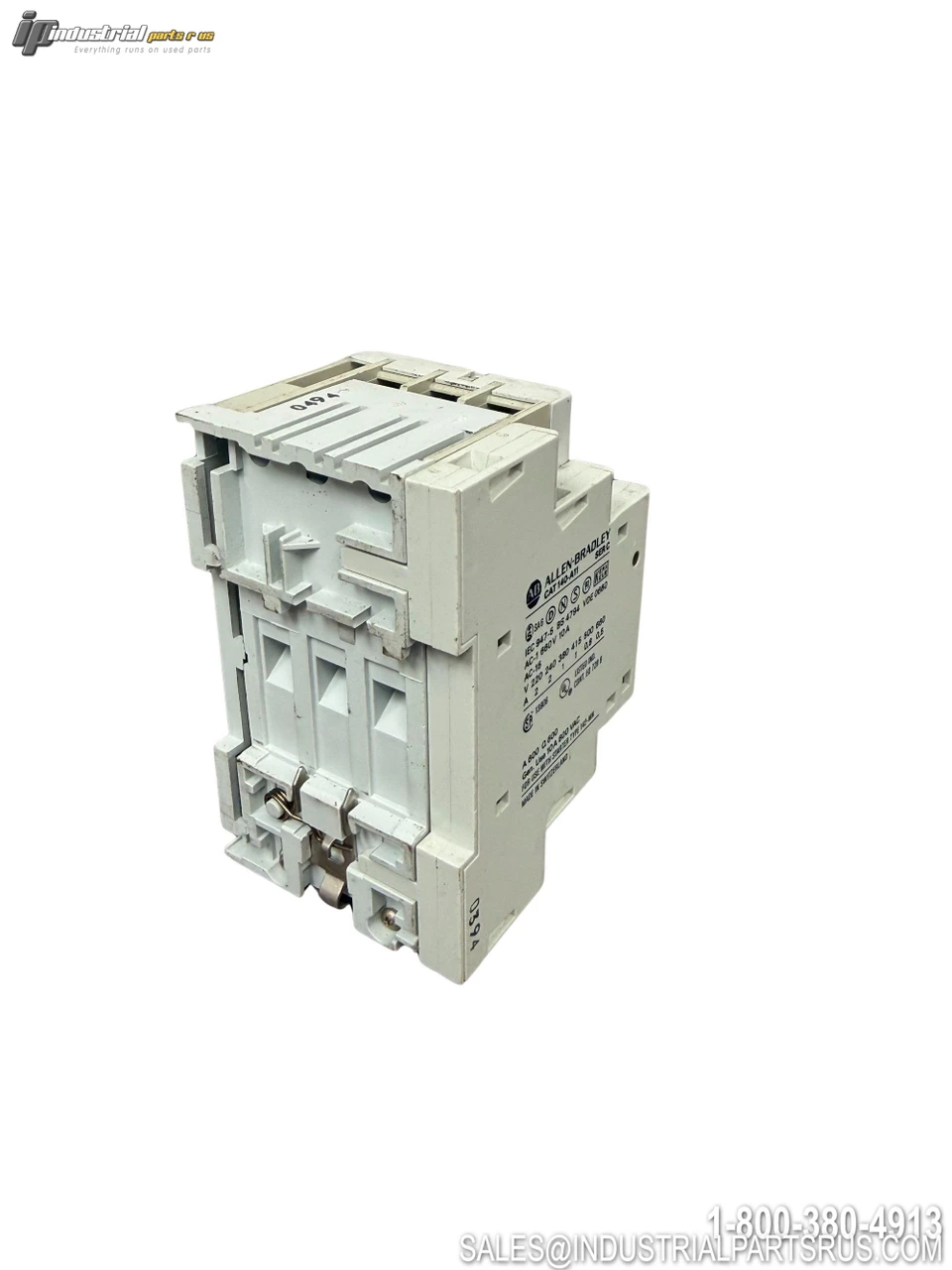

The Allen-Bradley 140-MN-0160 is a manual motor starter and motor protector designed for industrial motor control and protection applications. This 3-pole unit features an adjustable current range of 1.0–1.6A with thermal overload and magnetic short-circuit protection. The unit includes an Allen-Bradley 140-A11 auxiliary contact block with one normally open (N.O.) and one normally closed (N.C.) contact.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 140-MN-0160 |
| Series | C |
| Product Type | Manual Motor Starter / Motor Protector |
| Number of Poles | 3 |
| Current Adjustment Range | 1.0–1.6 A |
| Magnetic Trip Rating | 18 A |
| Maximum Voltage | 600 VAC |
| General Use Rating | 2.5 A @ 600 VAC, 3-Phase |
| Tripping Current | 120% FLA |
| HP Rating – 3-Phase | 0.5 HP @ 200V / 0.5 HP @ 240V / 1 HP @ 460V / 1.5 HP @ 575V |
| HP Rating – 1-Phase | 0.1 HP @ 115V / 0.16 HP @ 240V |
| Auxiliary Contact Block | Allen-Bradley 140-A11 |
| Auxiliary Contacts | 1 N.O. + 1 N.C. |
| Auxiliary Contact Rating | B600 / R300 |
| Wire Range | No. 16–10 AWG |
| Terminal Torque | 20–26 lb-in |
| Conductor | 75°C Copper Wire |
| Controls | Start / Stop-Reset / Test |
| Standards | IEC 947-2 / IEC 947-4 / VDE 0660 |
| Country of Manufacture | Switzerland |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 120% FLA
Manufacturer Allen-Bradley
Part Number 140-MN-0160
Shelf C-15 Tub 5
Model 140-MN-0160
MPN 140-MN-0160
Type Motor Starter
