Product Description

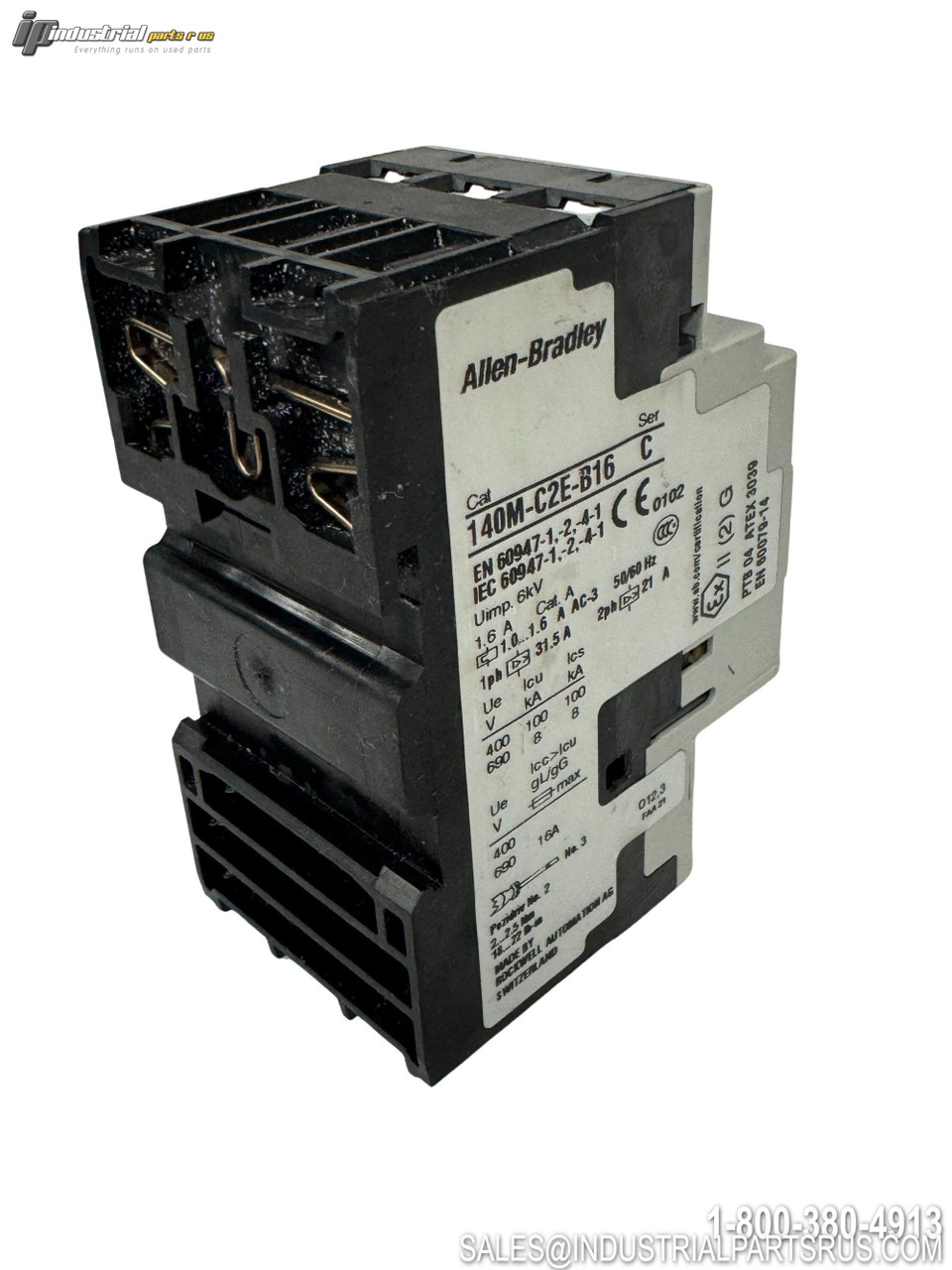

The Allen Bradley 140M-C2E-B16 is a Motor Protection Circuit Breaker (MPCB) from the Bulletin 140M series designed to provide comprehensive motor protection including overload, short-circuit, and branch-circuit protection. This 3-pole unit features a C-frame design with adjustable thermal and magnetic trip protection for motors up to 1.6 amperes, offering reliable protection for small motor applications in industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen Bradley |
| Model/Part Number | 140M-C2E-B16 |
| Product Type | Motor Protection Circuit Breaker |
| Bulletin Series | 140M |
| Frame Size | C |
| Number of Poles | 3 |
| Current Rating | 1.6 A |
| Trip Range | 1.0 - 1.6 A |
| Maximum Current (Ie) | 2.5 A |
| Voltage Rating | 600V |
| Interrupt Rating | 65 kAIC @ 480V |
| Trip Type | Adjustable Thermal/Adjustable Magnetic |
| Breaking Capacity | Standard (65 kA @ 450V) |
| Mounting Type | 35 mm DIN Rail |
| Temperature Rating | -25°C to 60°C |
| Power Rating @ 230V | 0.25 kW |
| Power Rating @ 400/415V | 0.55 kW |
| Power Rating @ 500V | 0.75 kW |
| Power Rating @ 690V | 1.1 kW |
| UL Listed | Yes |
| Status | Discontinued (Feb 2022) |
| Replacement Product | 140MT-C3E-B16 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 1.6 A
Country/Region of Manufacture Switzerland
Material Thermoplastic
Full Load Amps 1.6A
Manufacturer Allen-Bradley
Part Number 140M-C2E-B16
Shelf C-15 Tub 5
Model 140M-C2E-B16
MPN 140M-C2E-B16
Voltage 600V AC
Type Circuit Breaker
