Product Description

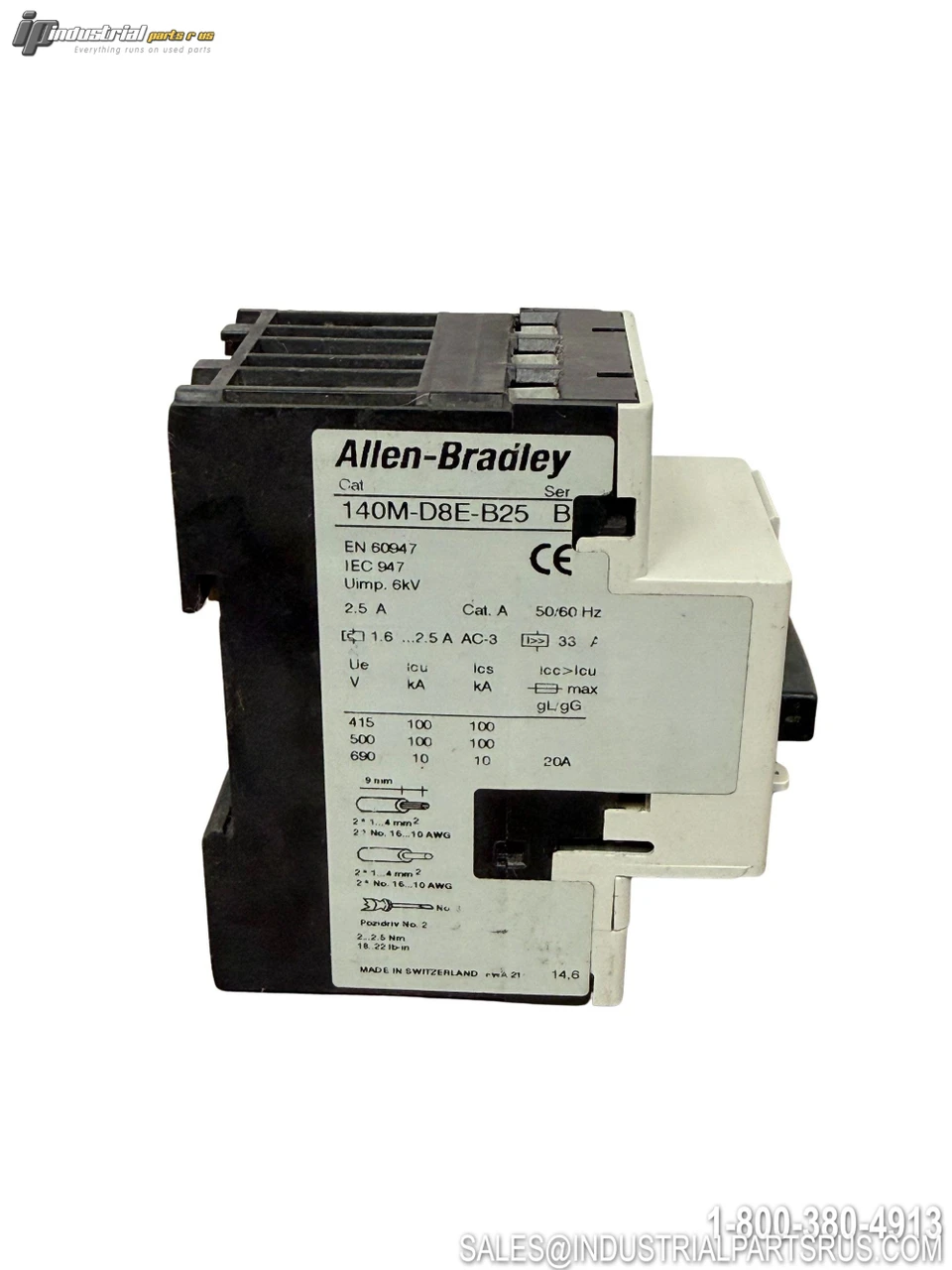

The Allen-Bradley 140M-D8E-B25 is a Bulletin 140M manual motor controller / motor protection circuit breaker designed for industrial motor control and protection applications. This 3-pole unit features an adjustable current range of 1.6–2.5A, a rotary operating handle, and a 33A instantaneous trip rating. This unit is Series B and is designed for 50/60 Hz applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 140M-D8E-B25 |
| Series | B |
| Product Type | Manual Motor Controller / Motor Protection Circuit Breaker |
| Bulletin | 140M |
| Number of Poles | 3 |
| Adjustable Current Range | 1.6–2.5 A |
| Rated Current | 2.5 A |
| Instantaneous Trip | 33 A |
| Frequency | 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| IEC Utilization Category | AC-3 |
| IEC Breaking Capacity (Icu / Ics) | 100 / 100 kA @ 415V; 100 / 100 kA @ 500V; 10 / 10 kA @ 690V |
| Maximum Backup Fuse at 690V | 20 A gL/gG |
| UL General Use Rating | 2.5 A Max., 600V, 3-Phase |
| UL Short-Circuit Rating | 65 kA @ 480V; 30 kA @ 600V |
| Motor Rating – 230V 3-Phase | 0.75 HP |
| Motor Rating – 480V 3-Phase | 1.5 HP |
| Motor Rating – 575V 3-Phase | 2 HP |
| Operating Mechanism | Rotary Handle |
| Standards | EN 60947 / IEC 947 |
| Country of Manufacture | Switzerland |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 1.6 - 2.5A
Material Thermoplastic Housing
Manufacturer Allen-Bradley
Part Number 140M-D8E-B25
Shelf C-15 Tub 5
Model 140M-D8E-B25
MPN 140M-D8E-B25
Voltage 600V AC (UL/CSA), 200-690V AC (IEC)
Type Circuit Breaker
