Product Description

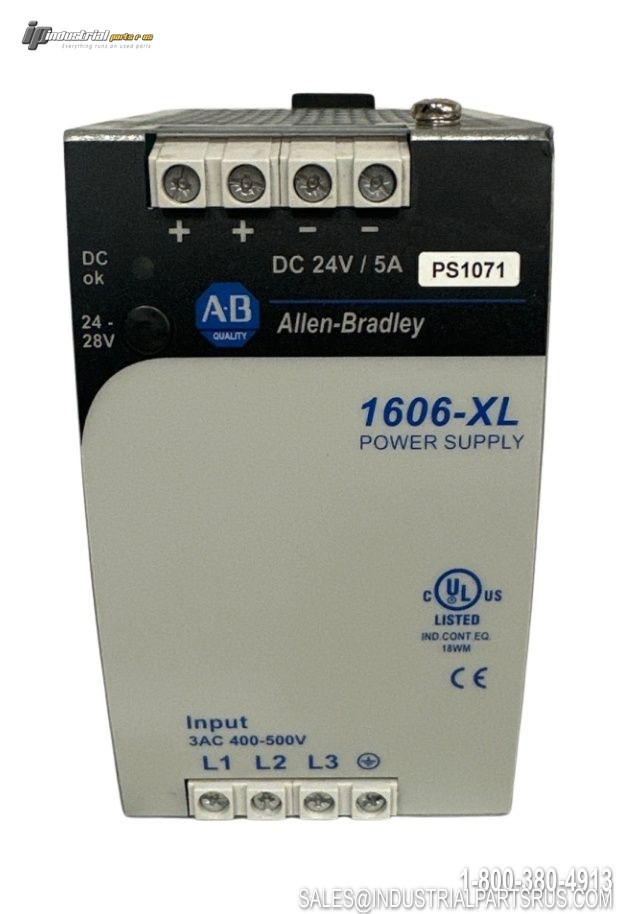

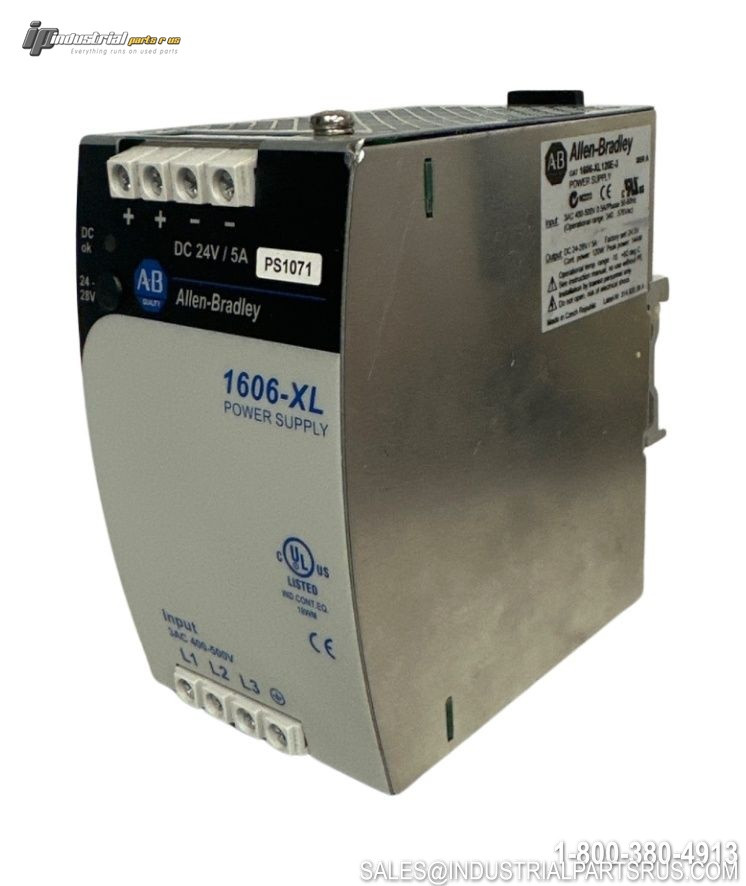

The Allen-Bradley 1606-XL120E-3 is an industrial three-phase switched mode power supply designed for demanding automation and control applications. This 120-watt unit converts 480VAC three-phase input to stable 24-28VDC output with high efficiency and reliability. Features DIN rail mounting for easy integration into control panels and systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1606-XL120E-3 |
| Product Type | Switched Mode Power Supply |
| Series | 1606-XL |
| Output Power | 120W Continuous / 144W Peak |
| Output Voltage | 24-28 VDC (Factory Set: 24.5V) |
| Output Current | 5A at 24V, 4.3A at 28V |
| Input Voltage | 400-500 VAC / 450-820 VDC |
| Operating Range | 340-576 VAC |
| Input Current | 0.5A per phase |
| Phase | 3-Phase |
| Frequency | 47-63 Hz |
| Efficiency | 89% |
| Mounting Type | DIN Rail |
| Dimensions | 73 x 124 x 117 mm (W x H x D) |
| Weight | 730 grams (1.65 lbs) |
| Operating Temperature | -10 to +70°C |
| Storage Temperature | -25 to +85°C |
| Ripple and Noise | < 50 mV peak-to-peak |
| Cable Size | 20-10 AWG |
| Features | PFC Choke, Auto Input Select, Parallel Operation |
| Indicators | Green and Red LEDs |
| Certifications | CE, UL, GOST, MARINE, Class 1 Div 2 |
