Product Description

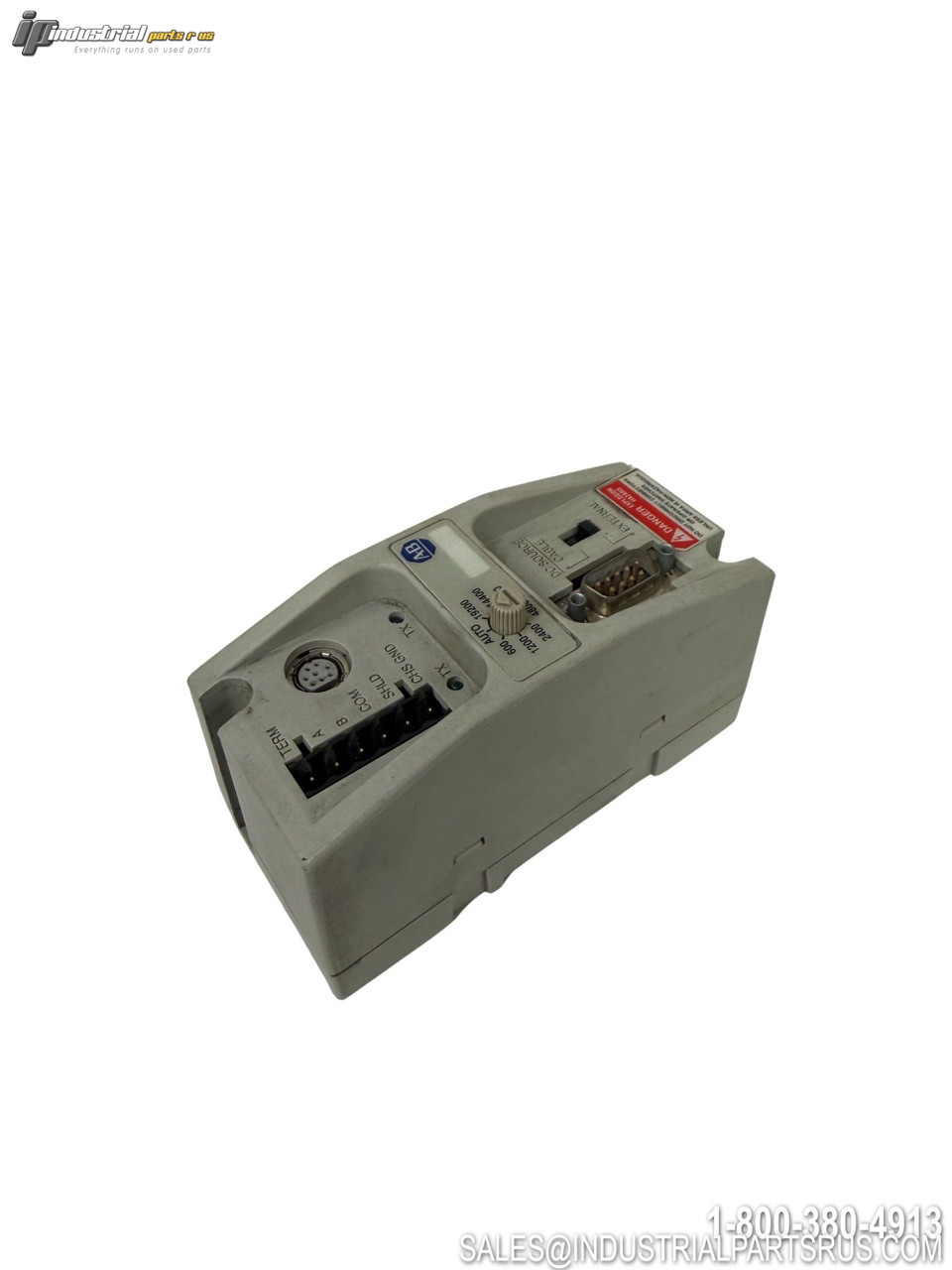

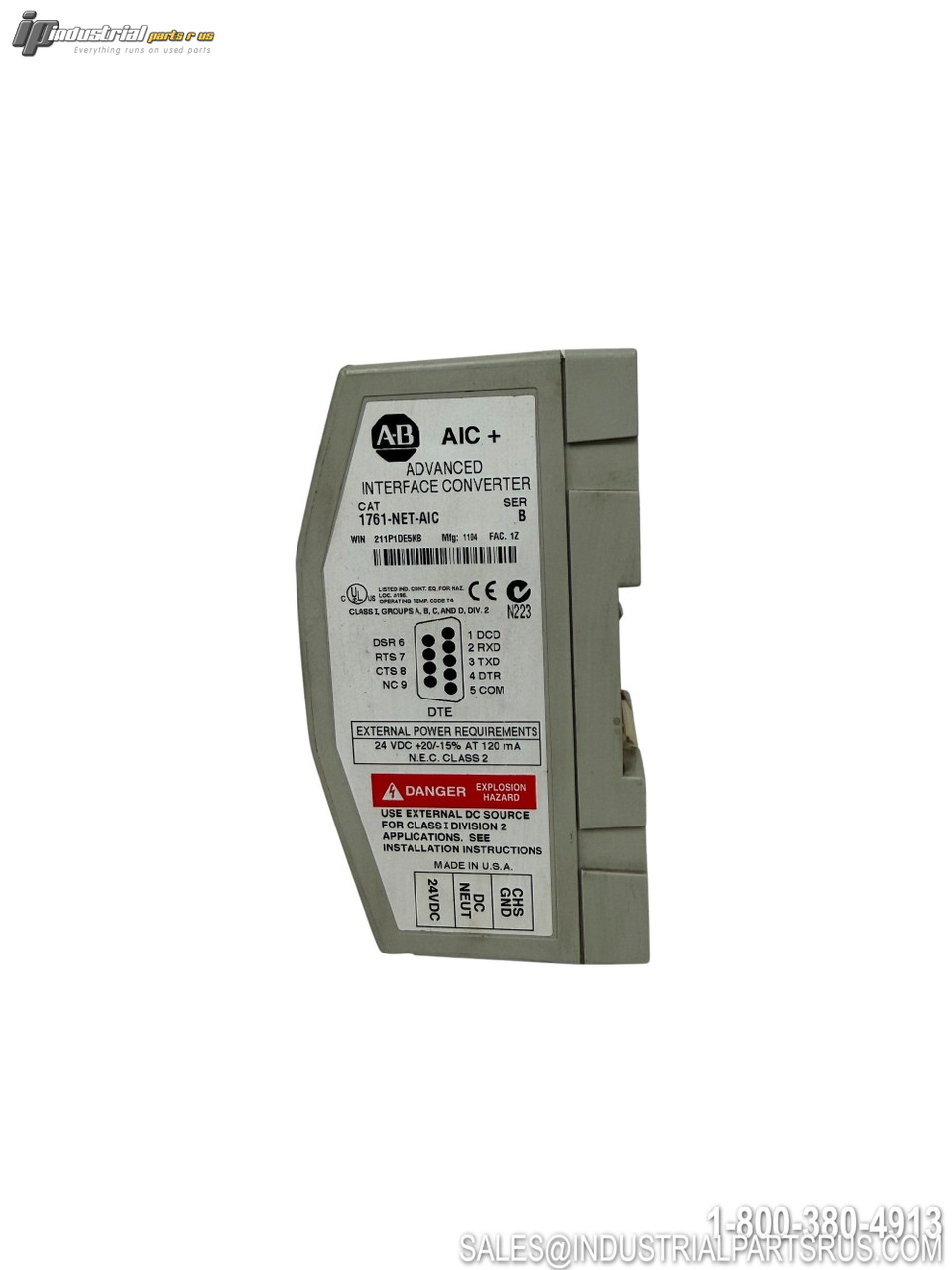

The Allen-Bradley 1761-NET-AIC is an Advanced Interface Converter (AIC+) designed for connecting DF1-enabled devices to DH-485 communication networks. This module provides electrical isolation and serves as a communication bridge between MicroLogix controllers, SLC processors, and other network devices with flexible connection options.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1761-NET-AIC |
| Product Type | Advanced Interface Converter (AIC+) |
| Platform | MicroLogix 1000 |
| Supply Voltage | 24VDC |
| Current Draw | 120mA |
| Communication Ports | 2 RS-232 Ports, 1 DH-485 Port |
| RS-232 Connectors | DB-9 and 8-Pin Mini-DIN |
| Isolation | 500VDC |
| Communication Protocol | DF1, DH-485 |
| Compatible Controllers | MicroLogix 1000/1200/1500, SLC 5/01-5/05 |
| Power Source | External 24VDC or Communication Cable |
| Application | Point-to-Point Isolator, RS-232 to RS-485 Converter |
| Maximum Network Length | 1219m (4000ft) |
| Maximum Nodes | 32 per Network |
| Weight | 0.40 lbs |
| Lifecycle Status | Discontinued (Dec 2016) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 120mA
Manufacturer Allen-Bradley
Part Number 1761-NET-AIC
Controller Platform MicroLogix 1000
Shelf F-3 Tub 9
Model 1761-NET-AIC
MPN 1761-NET-AIC
Type Communication Module
