Product Description

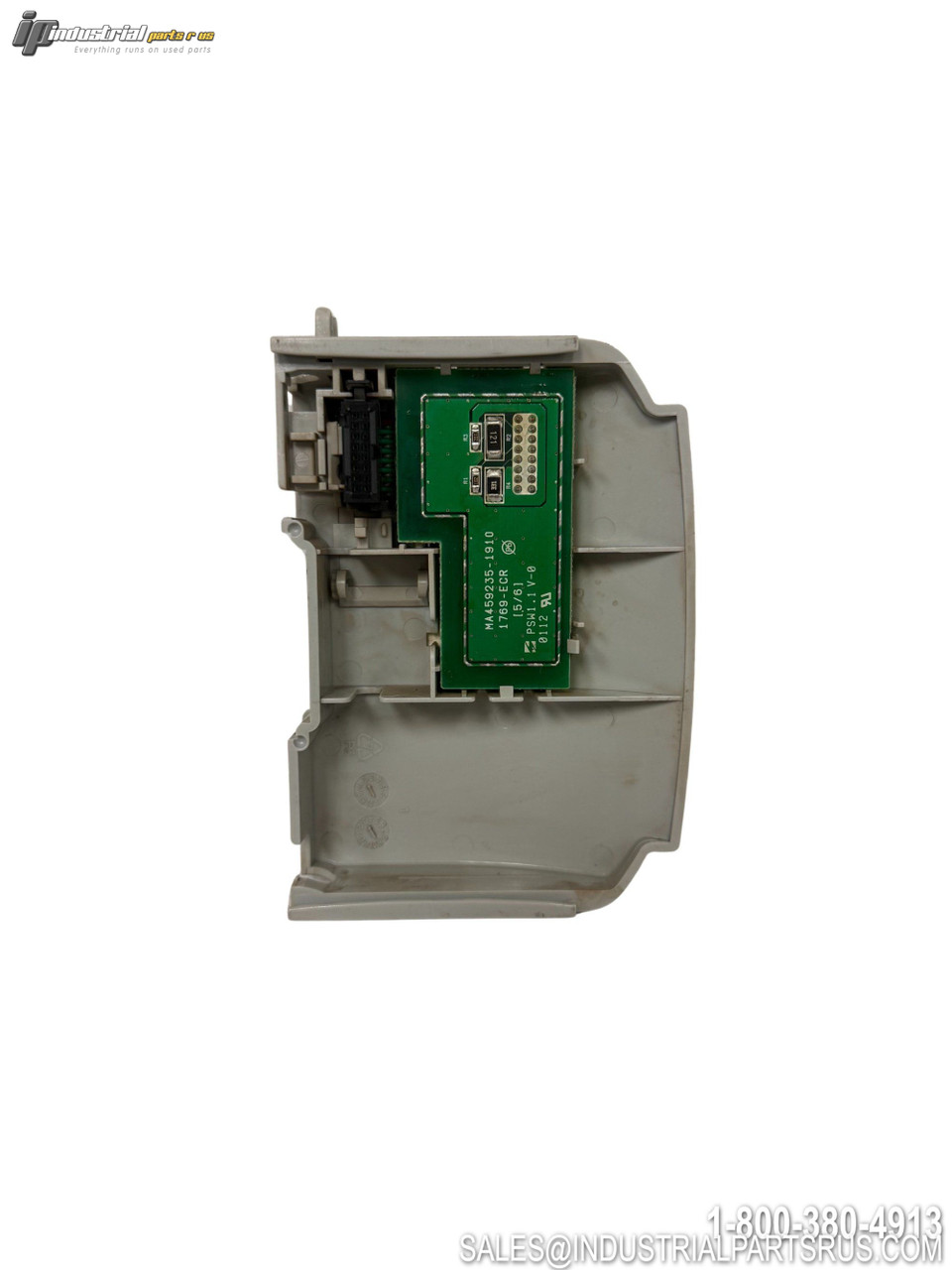

The Allen-Bradley 1769-ECR is a right end cap/terminator module designed specifically for use with CompactLogix controllers and 1769 Compact I/O systems. This module functions as a bus terminator that terminates the end of the communication bus, ensuring proper signal integrity and system performance. The module is essential for qualifying the CompactLogix configuration and maintaining reliable system operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1769-ECR |
| Type | PLC Chassis |
| Platform | CompactLogix |
| Controller Platform | CompactLogix |
| Function | Right End Cap/Bus Terminator |
| Current Draw | 5 mA at 5.1 VDC |
| Enclosure Type | Open Style |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 5-95% Non-condensing |
| Operating Altitude | 2000 m (6562 ft) |
| Mounting Type | DIN Rail, Panel |
| Weight | 130 g (0.286 lb) |
| Dimensions (H x W x L) | 4.65" x 3.35" x 1.26" |
| Certifications | C-TICK, CCC, CE, CUL, GOST, KC, MARINE, UL |
| UPC | 662468993043 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 5 mA at 5.1 VDC
Manufacturer Allen-Bradley
Enclosure Type Open Style
Part Number 1769-ECR
Controller Platform CompactLogix
Shelf K-46
Model 1769-ECR
MPN 1769-ECR
Type PLC Chassis
