Product Description

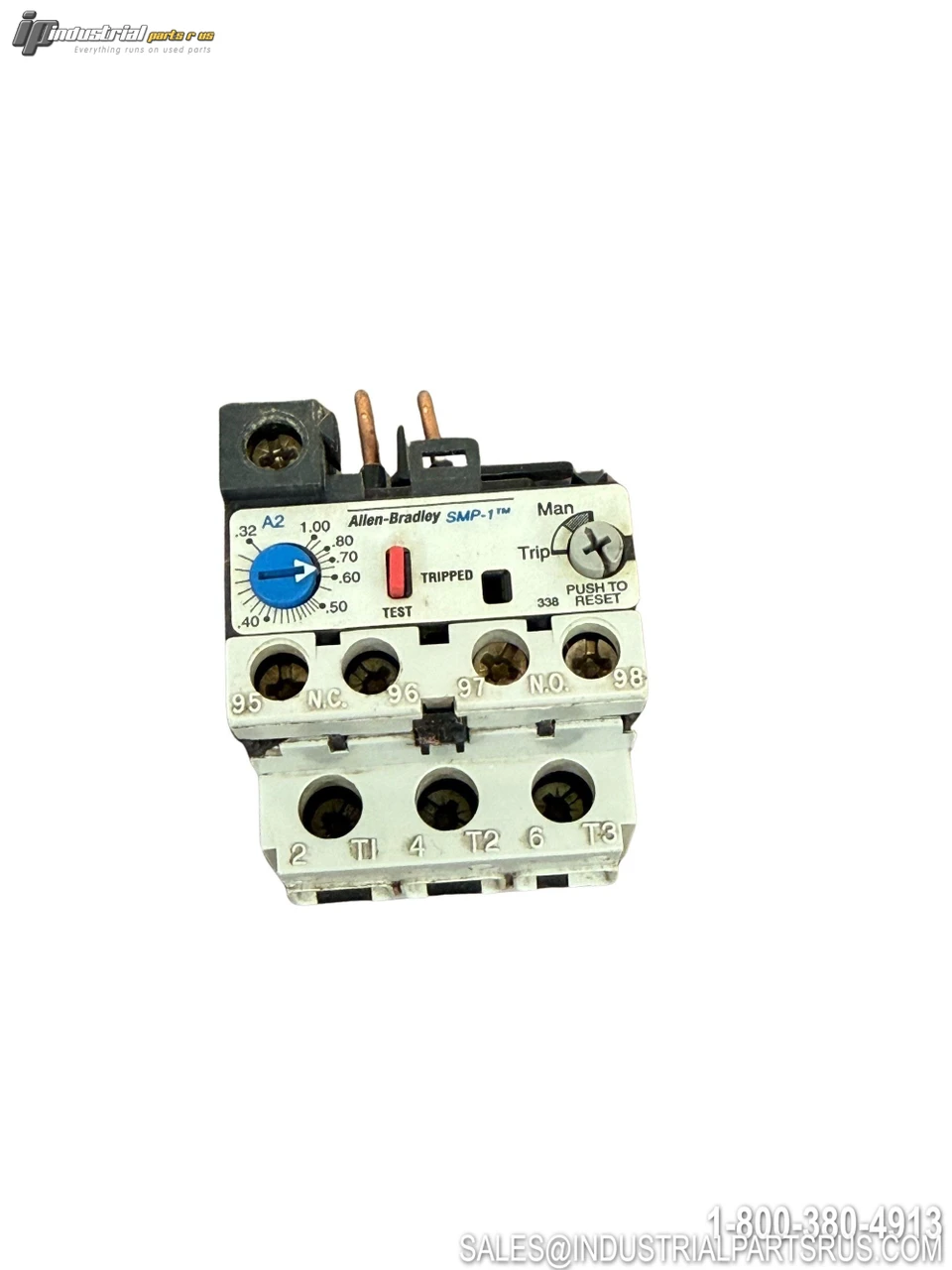

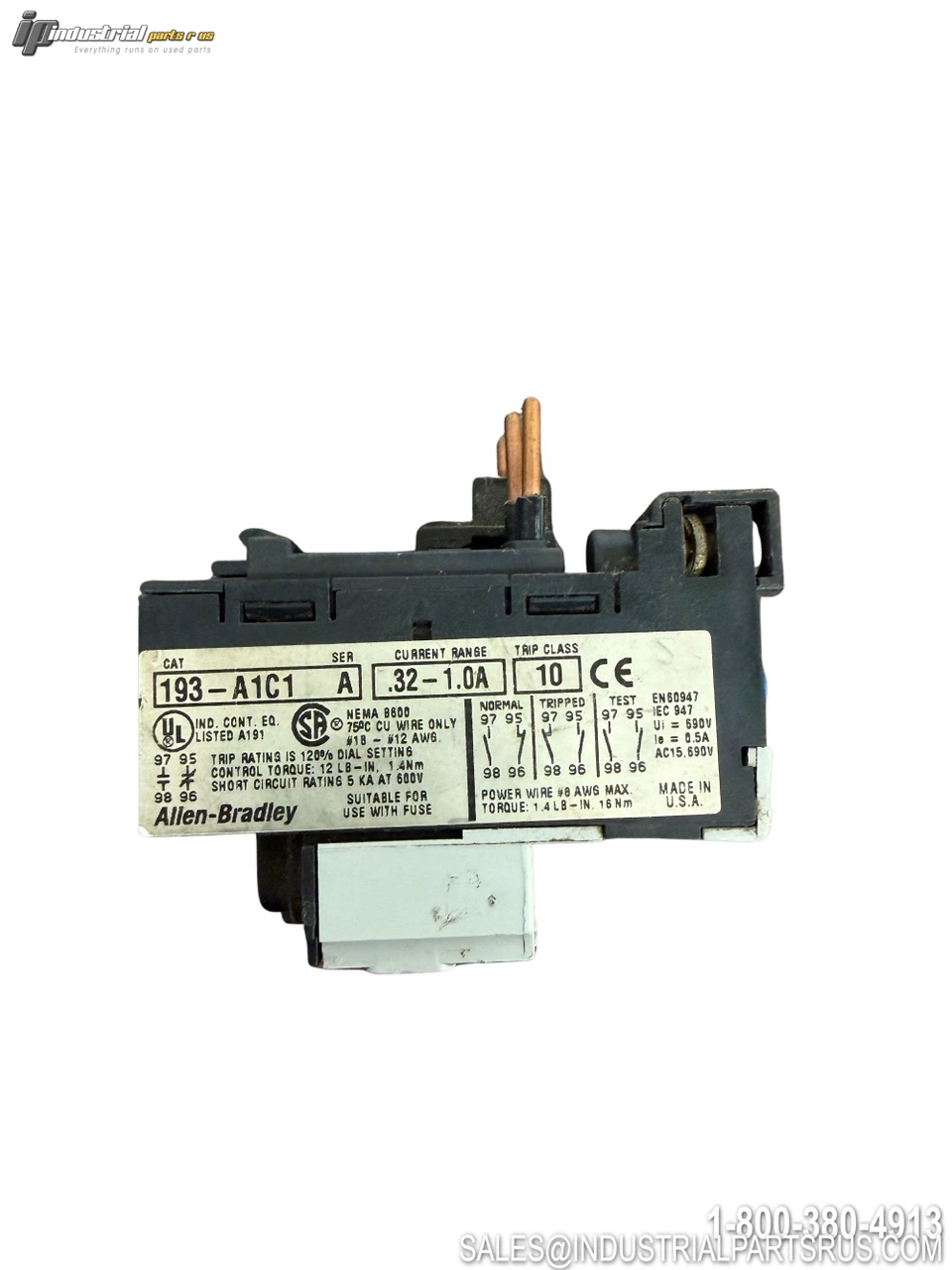

The Allen-Bradley 193-A1C1 Series A is a Bulletin 193 SMP-1 thermal overload relay designed for motor overload protection in industrial motor control applications. It features an adjustable current range of 0.32 to 1.0 amps, Class 10 trip characteristics, and selectable manual or automatic reset. The relay also includes auxiliary trip contacts for integration into motor control circuits.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 193-A1C1 |
| Series | A |
| Product Family | SMP-1 |
| Product Type | Thermal Overload Relay |
| Adjustable Current Range | 0.32–1.0 A |
| Trip Class | Class 10 |
| Trip Rating | 120% of Dial Setting |
| Reset | Manual / Automatic Selectable |
| Test Function | Yes |
| Auxiliary Contacts | 1 N.C. + 1 N.O. |
| Auxiliary Terminals | 95-96 N.C. / 97-98 N.O. |
| Insulation Voltage (Ui) | 690 V |
| Operational Current (Ie) | 0.5 A |
| Utilization Category | AC-15, 690 V |
| Short Circuit Rating | 5 kA at 600 V (when suitably fused) |
| Control Wire | #18–#12 AWG |
| Power Wire | #8 AWG Maximum |
| Standard | IEC 947 / EN 60947 |
| Country of Manufacture | USA |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer Allen-Bradley
Part Number 193-A1C1
Shelf C-15 Tub 6
Model 193-A1C1
MPN 193-A1C1
Type Overload Relay
