Product Description

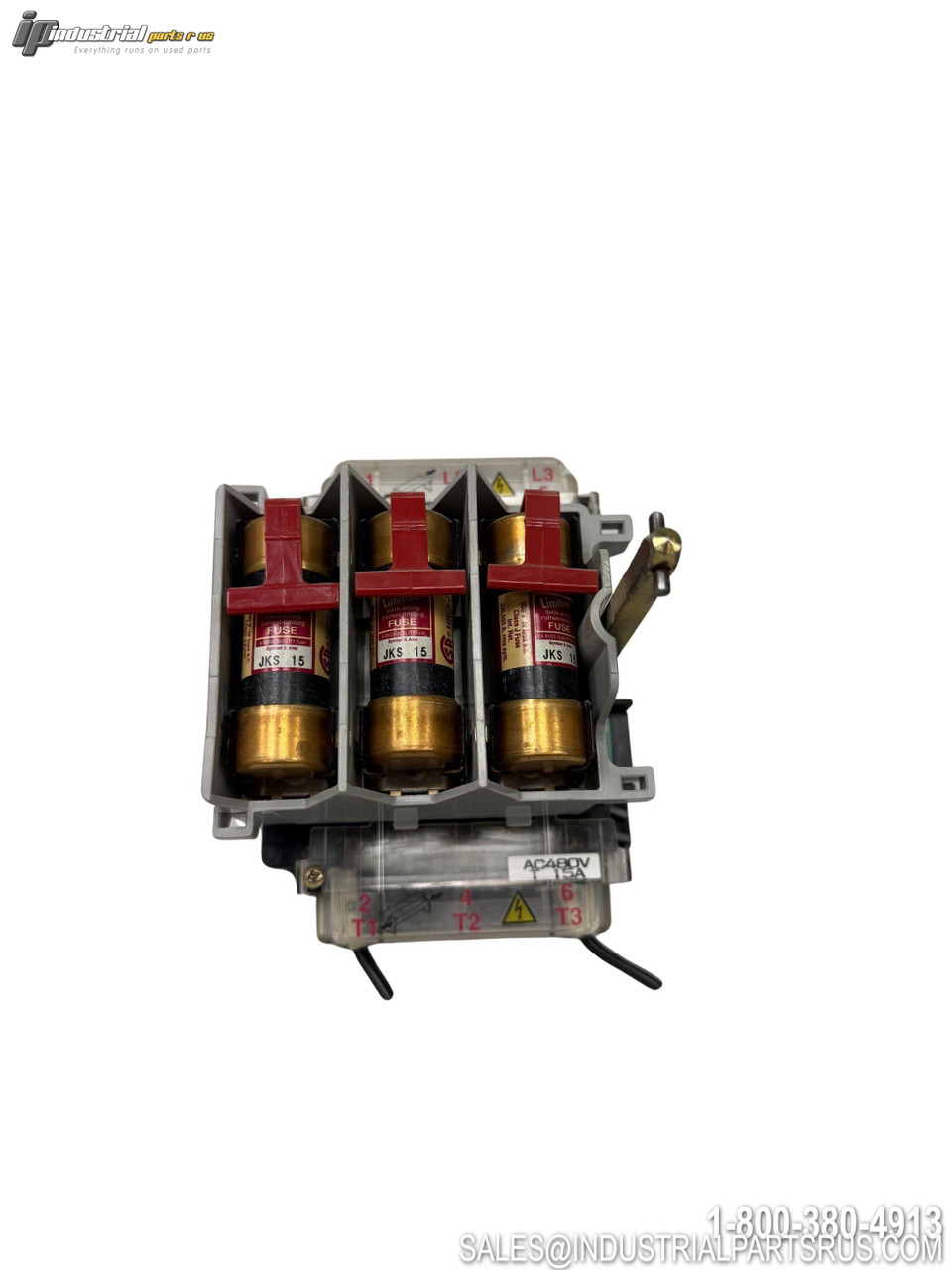

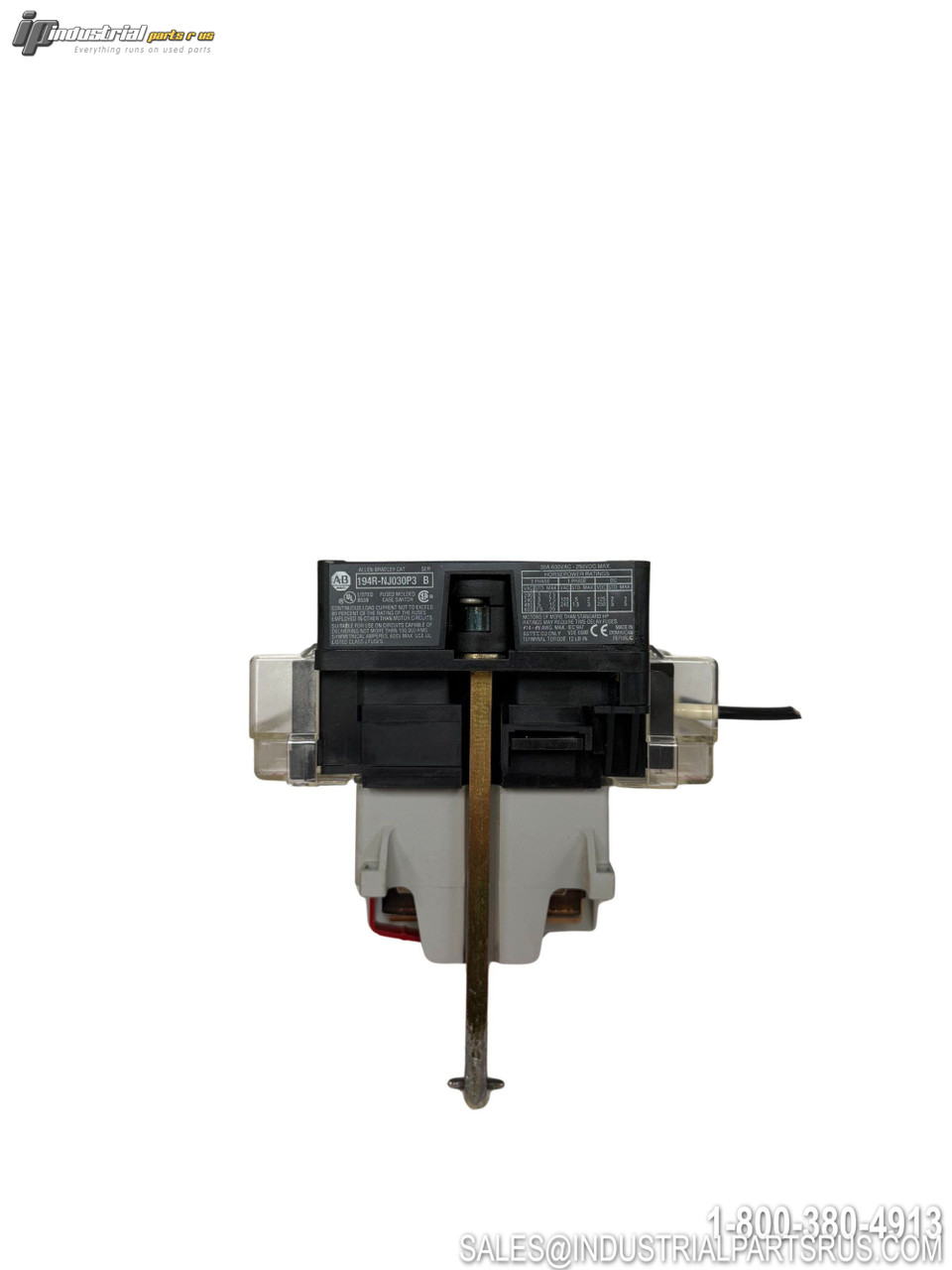

The Allen-Bradley 194R-NJ030P3 is a fusible rotary disconnect switch designed for reliable power isolation in industrial applications. This open-style switch provides safe circuit disconnection with its touch-safe design and electrically isolated phases. It is suitable for motor disconnections and service entrance applications with NFPA 79 compliance and high short circuit current rating of 200kA.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 194R-NJ030P3 |
| Manufacturer | Rockwell Automation |
| Current Rating | 30 Amps |
| Voltage Rating | 600 VAC / 250 VDC |
| Poles | 4 |
| Enclosure Type | Open Style |
| Mounting Type | DIN Rail / Flange |
| Fuse Type | UL Class CC & J, CSA HRCI-J |
| Short Circuit Rating | 200 kA |
| Operating Temperature | -20°C to 60°C |
| Ambient Operating Temperature (Enclosed) | -20°C to 40°C |
| Operating Temperature (Open) | -2°C to 55°C |
| Maximum Operating Altitude | 2000 meters |
| Weight | 1.74 lbs |
| Handle Type | Rotary |
| Compliance | NFPA 79, IEC 60947-1, RoHS |
| Phase Configuration | Single-phase or Three-phase |
| Product Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type Open Style
Part Number 194R-NJ030P3
Shelf C-12
Model 194R-NJ030P3
MPN 194R-NJ030P3
Type Disconnect Switch
