Product Description

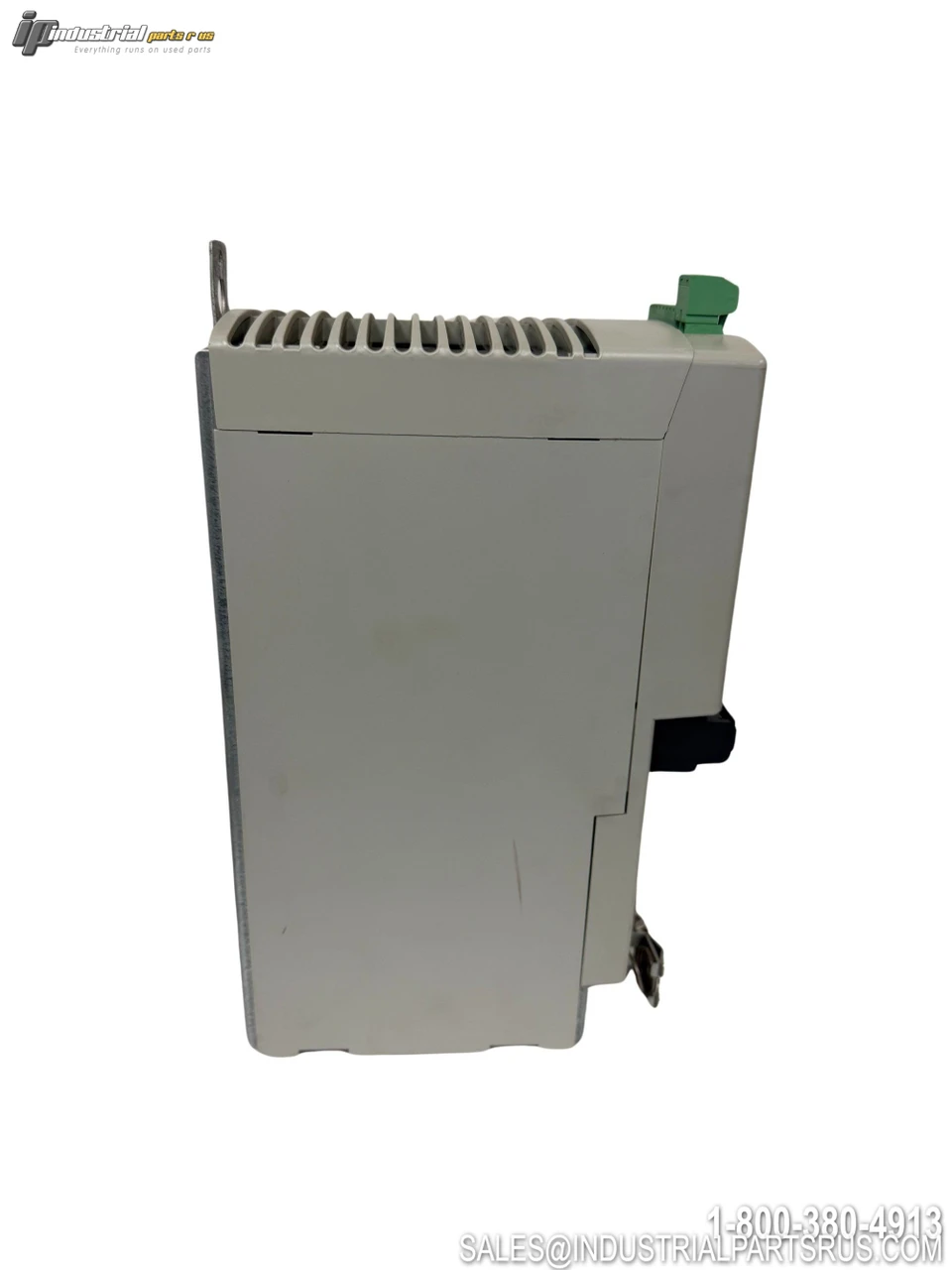

The Allen-Bradley 2090-XB120-03 is a Bulletin 2090 Resistive Brake Module (RBM) designed for use with Kinetix servo drive systems operating at 230V or 460V AC. It provides a panel-mounted, externally wired dynamic braking solution that dissipates motor regenerative energy as heat through a 3 Ohm resistive load, rated at 120 Amps peak and 45 Watts continuous power. The module contains no field-replaceable components and is compatible with Allen-Bradley Kinetix 2000, 6000, 6200, and 5700 servo drive families.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 2090-XB120-03 |
| Product Type | Resistive Brake Module (RBM) |
| Bulletin / Series | Bulletin 2090 / Kinetix |
| Platform | Kinetix |
| Resistance | 3 Ohm |
| Peak Current Rating | 120 A |
| Continuous Power Rating | 45 Watts |
| Compatible Drive Voltage | 230V AC / 460V AC |
| System Voltage Range | 200/230V and 400/460/600V |
| I/O Supply Voltage | 24V DC (external, 22.4–26.4V, 0.5A) |
| Auxiliary Power (XB120 only) | 230V AC (external, 207–253V, 1A) |
| Dimensions (H x W x D) | 13.38 x 4.37 x 7.68 in. |
| Weight | 2.75 kg (6.06 lbs) |
| Mounting Type | Panel Mount (two M6 / 1/4-20 bolts) |
| Minimum Clearance (Top/Bottom) | 50 mm (1.97 in.) top and bottom; 0 mm side |
| Field Replaceable Components | None |
| Compatible Drive Families | Kinetix 2000, 6000, 6200, 5700 |
| Installation Publication | 2090-IN009F-EN-P |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Lifecycle Status | End of Life / Discontinued |
