Product Description

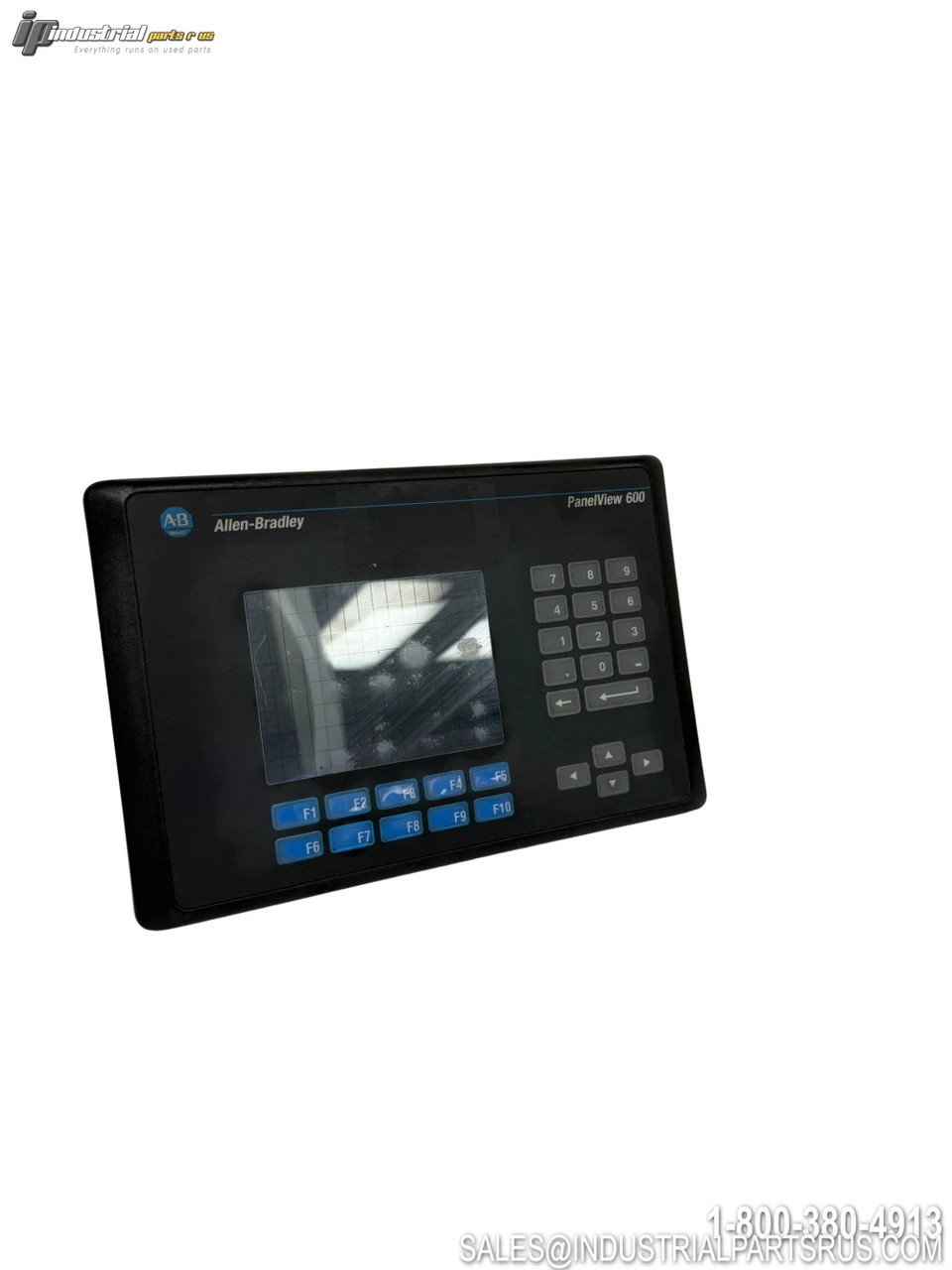

The Allen-Bradley 2711-B6C8 is a PanelView 600 Standard Operator Terminal designed for machine-level visualization and control in industrial environments. It features a 5.7-inch color TFT LCD display with dual input via an analog resistive touchscreen (128 touch cells, 1,000,000 actuation rating) and 10 function keys (F1–F10), communicating over Data Highway Plus (DH+) and RS-232. This terminal is compatible with Allen-Bradley PLC platforms including PLC-5, SLC 500, MicroLogix, CompactLogix, and ControlLogix, and is configured using PanelBuilder 32 software. It is a discontinued legacy product still widely used in surplus and replacement applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 2711-B6C8 |
| Product Family | PanelView 600 Standard |
| Platform | PanelView |
| Series | See label (A, B, or C) |
| Firmware Revision (FRN) | 1.00 to 4.48 (See label) |
| Display Size | 5.7 inches |
| Display Type | Color TFT LCD |
| Display Area | 115 x 86 mm (4.54 x 3.4 in.) |
| Resolution | 320 x 234 pixels |
| Input Type | Keypad & Touchscreen |
| Touchscreen Technology | Analog Resistive |
| Touch Cells | 128 |
| Touchscreen Actuation Rating | 1,000,000 presses |
| Function Keys | 10 (F1–F10) |
| Communication Port 1 | Data Highway Plus (DH+) |
| Communication Port 2 | RS-232 (Printer) |
| Compatible PLCs | PLC-5, SLC 500, MicroLogix, CompactLogix, ControlLogix |
| Input Voltage | 85–264V AC |
| Input Frequency | 47–63 Hz |
| Application Memory (Runtime) | 170 KB |
| Nonvolatile Memory | 240 KB |
| Backlight Life | 50,000 hrs (half-life at 25°C / 77°F) |
| Backlight Replacement Part | 2711-NL5 |
| Real-Time Clock | Yes, battery-backed |
| Clock Battery Replacement | 2711-NB3 or 2711-NB4 |
| ATA Memory Card Support | Yes |
| Screen Security | Yes – up to 16 passwords/users |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -25 to 70°C (-13 to 158°F) |
| Enclosure Rating | NEMA 4X (IP65) – front face |
| Mounting Type | Panel Mount |
| Configuration Software | PanelBuilder 32 |
| Communication Cable | 2711-NC14 |
| Product Lifecycle Status | Discontinued / Obsolete |
| Shipping Weight | 6 lbs |
| Shipping Dimensions | 14 x 11 x 8 inches |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type NEMA 4X / IP65 (front face)
Part Number 2711-B6C8
Controller Platform PanelView 600 Standard
Shelf D-15
Model 2711-B6C8
MPN 2711-B6C8
Type HMI
