Product Description

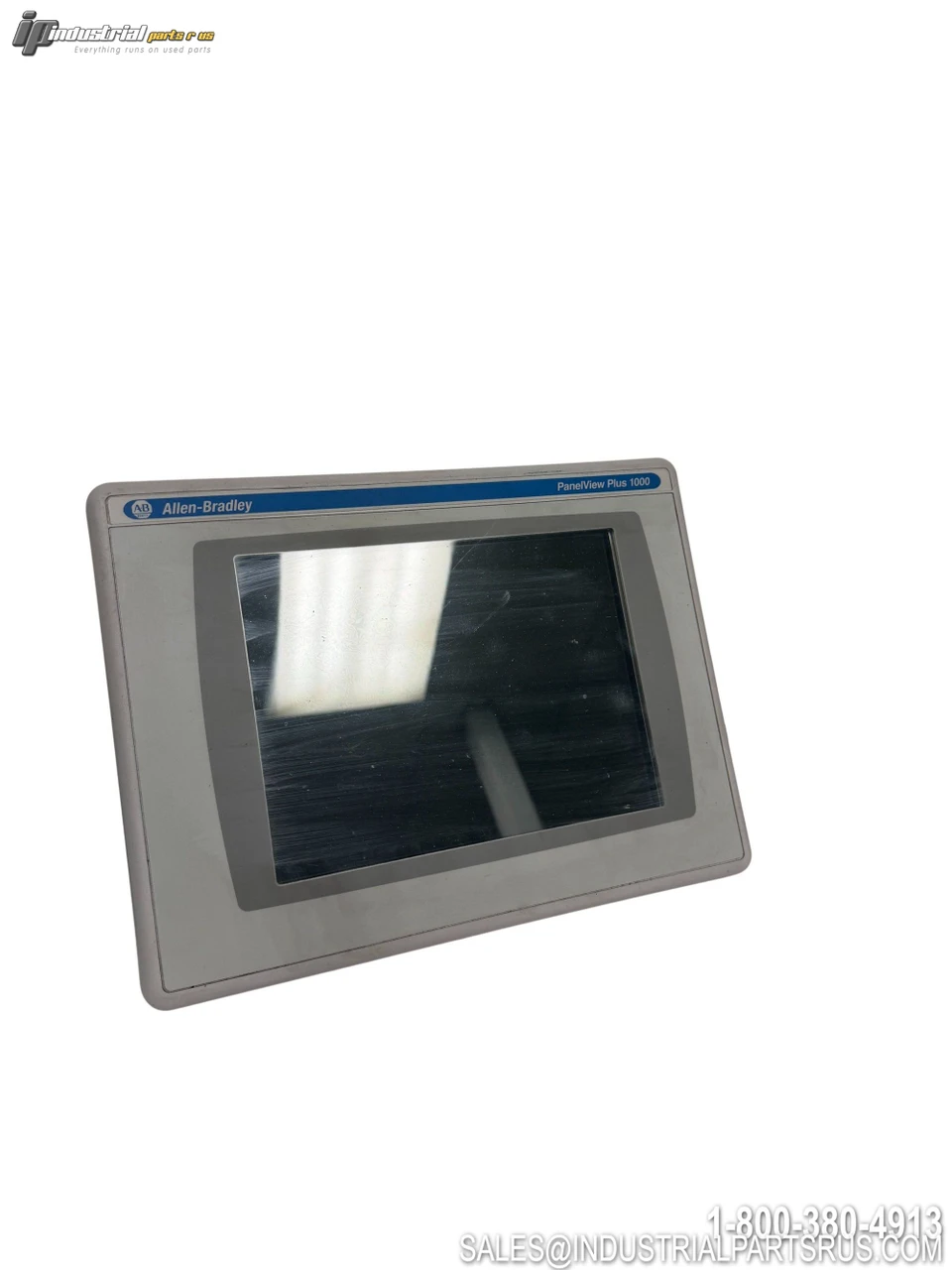

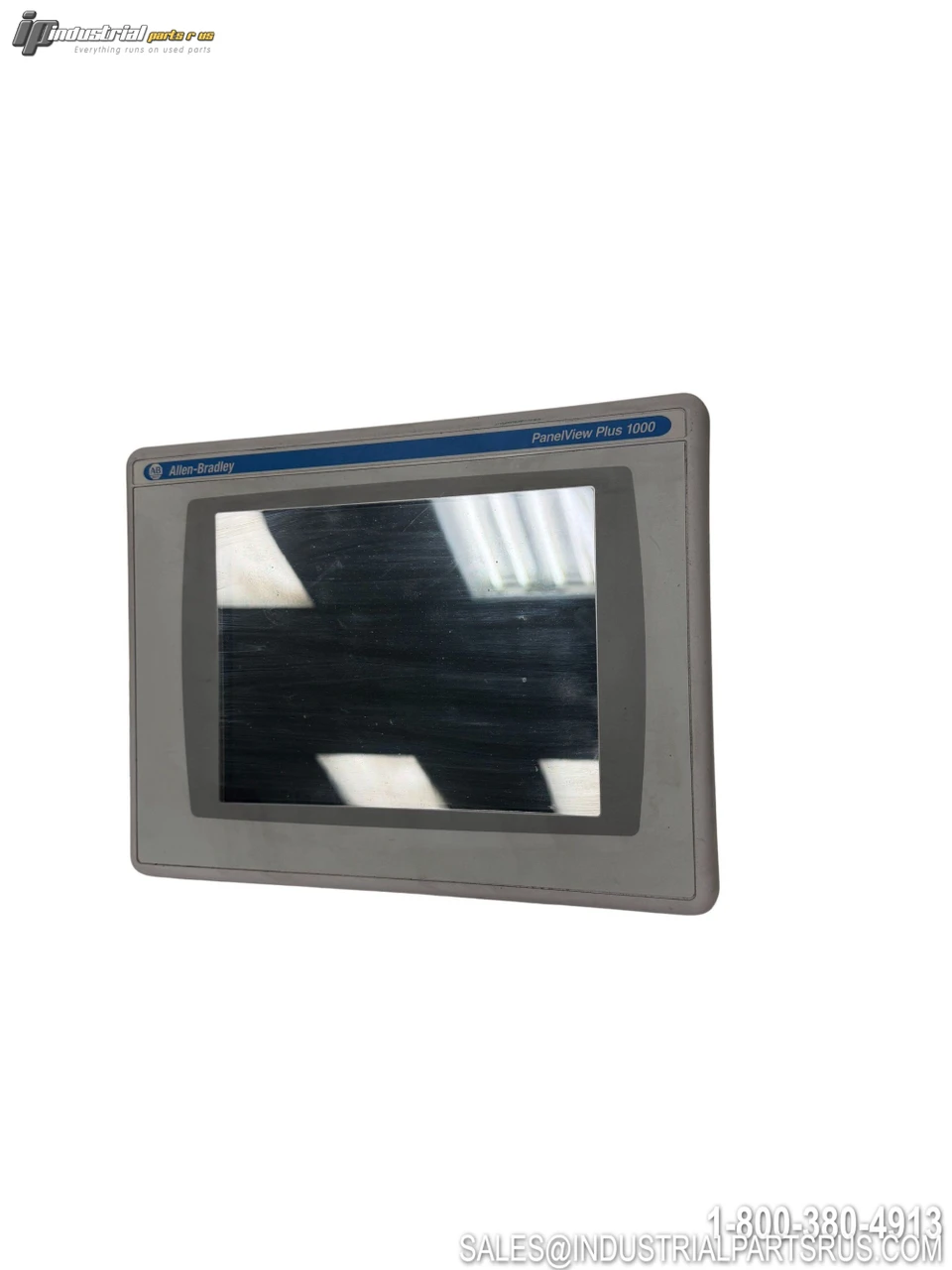

The Allen-Bradley 2711P-RDT10C is a replacement display module designed for PanelView Plus and PanelView Plus 6 1000-series operator interface terminals. It features a 10.4-inch TFT color LCD with 640×480 (VGA) resolution, 18-bit color depth, and an analog resistive touchscreen for reliable industrial human-machine interface (HMI) operation. Running Windows CE 4.1, this module is compatible with PanelView Plus, PanelView Plus 6, and PanelView Plus CE logic modules that mount to the rear of the terminal, and supports optional communication modules for EtherNet/IP, DH+/DH-485, or ControlNet connectivity. It accepts both AC and DC power input and includes a CompactFlash slot for expanded storage.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 2711P-RDT10C |
| Platform / Product Family | PanelView Plus 1000 |
| Assembly Type | Display Module Only (Replacement) |
| Display Size | 10.4 in (diagonal) |
| Display Type | TFT Color LCD |
| Resolution | 640 x 480 pixels (VGA) |
| Color Depth | 18-bit |
| Active Display Area | 211 x 158 mm (8.31 x 6.22 in) |
| Luminance | 300 cd/m² (Nits) |
| Backlight Type | CCFL |
| Backlight Life (Min.) | 50,000 hours |
| Touchscreen Type | Analog Resistive |
| Touch Actuation Force | 10–110 g |
| Touch Actuations (Rated) | 1,000,000 (1 million) |
| Stylus Compatibility | Finger, gloved finger, or plastic stylus (min. 1.3 mm tip radius) |
| Input Voltage (AC) | 85–264V AC |
| Power Consumption (Max AC) | 160 VA maximum |
| Power Consumption (Typical DC) | 39 W / 1.6 A at 24V DC |
| Power Consumption (Max DC) | 70 W / 2.9 A at 24V DC |
| Line Frequency | 47–63 Hz |
| Physical Dimensions (W x H) | 329 x 248 mm |
| Depth | 55 mm |
| Panel Cutout Dimensions | 224 x 305 mm |
| Weight (approx.) | 2.6 kg (approx. 3.99–6.38 lbs) |
| Max External CompactFlash | 512 MB |
| Enclosure Rating | NEMA Type 12, 13, 4X (indoor); C-TICK, CCC |
| Certifications / Standards | C-TICK, CCC |
| Lifecycle Status | Discontinued (December 30, 2021) |
| Compatible Platforms | PanelView Plus, PanelView Plus 6, PanelView Plus CE (AC or DC Logic Modules) |
| Series | See label |
We warranty all items for 30 days from date of purchase.
