Product Description

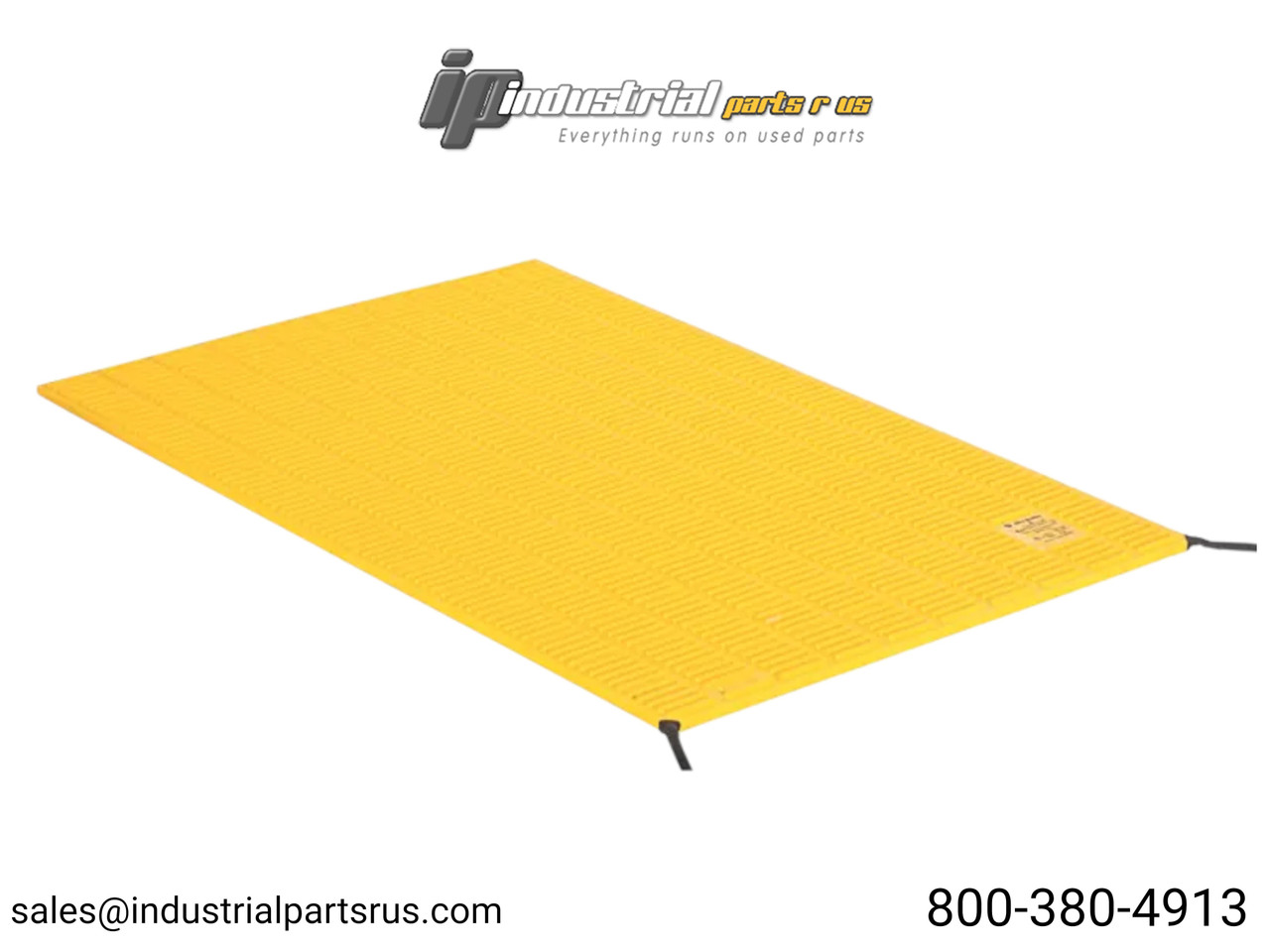

The Allen-Bradley 440F-M1015BYNN is a Guardmaster MatGuard™ pressure-sensitive safety mat designed to detect the presence of personnel on industrial sensing surfaces and trigger a machine stop signal via a compatible safety controller. Measuring 500mm x 750mm in yellow, it features hardened steel plate construction with a 4-wire system capable of detecting both open and short circuit faults, providing no-dead-spot coverage across its entire surface. Suitable for robotic work cells, press and stamping equipment, assembly lines, and hazardous area personnel detection. The mat ships without trim or controller and requires a compatible MatGuard control unit such as the 440F-C4000P or equivalent safety relay.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 440F-M1015BYNN |
| Product Series | 440F MatGuard™ |
| Product Family | Guardmaster Safety Mats |
| Product Type | Pressure-Sensitive Safety Mat |
| Mat Width (A Dimension) | 500 mm (1.64 ft) |
| Mat Length (B Dimension) | 750 mm (2.46 ft) |
| Thickness | 16 mm (0.63 in) |
| Color | Yellow |
| Construction | Hardened Steel Plate |
| Detection System | 4-Wire System (detects opens and shorts) |
| Cable Configuration | Two 4.5m (15 ft) 2-wire cables, exit out "B" corners |
| Cable Length | 4.5 m (15 ft) |
| Nominal Supply Voltage | 24V DC |
| Static Pressure Rating | 4500 PSI |
| IP Rating | IP67 |
| Safety Category (EN ISO 13849-1) | Category 3 |
| Operating Temperature | -10°C to +55°C |
| Edge Trim Included | No (order separately: 440F-T1015) |
| Controller Included | No (compatible: 440F-C4000P) |
| Lifecycle Status | Active |
| Applicable Standards | EN 1760-1, EN ISO 13849-1, IEC/EN 60204-1, ANSI RIA R15.06, ANSI/B11.19 |
| Manufacturer | Rockwell Automation |
We warranty all items for 30 days from date of purchase.
