Product Description

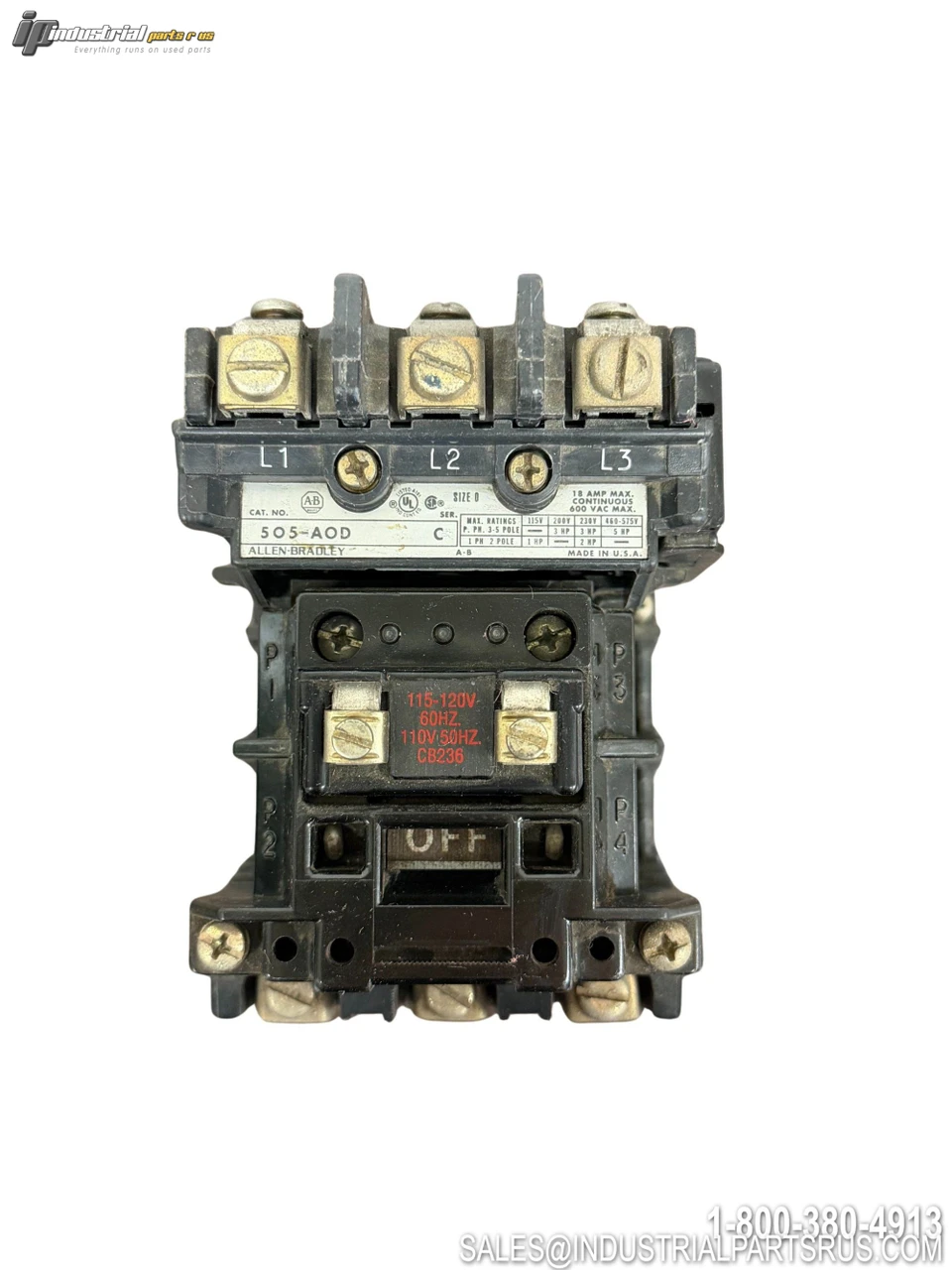

The Allen-Bradley 505-AOD Series C is a NEMA Size 0 magnetic motor starter designed for industrial motor control applications. This unit features a 3-pole configuration and a 115-120V AC 60Hz coil (110V AC 50Hz). The nameplate indicates a maximum continuous current rating of 18A and a maximum operating voltage of 600V AC.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 505-AOD |
| Series | C |
| Product Type | Magnetic Motor Starter |
| NEMA Size | Size 0 |
| Number of Poles | 3 |
| Coil Voltage @ 60Hz | 115-120V AC |
| Coil Voltage @ 50Hz | 110V AC |
| Maximum Continuous Current | 18A |
| Maximum Operating Voltage | 600V AC |
| Phase | 3-Phase |
| Horsepower @ 115V | 1 HP |
| Horsepower @ 200V | 3 HP |
| Horsepower @ 230V | 3 HP |
| Horsepower @ 460-575V | 5 HP |
| Line Terminals | L1, L2, L3 |
| Mounting Style | Panel Mount / Open Style |
| Country of Manufacture | USA |
Please review all photos for the exact configuration and condition of the item included.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 9A
Manufacturer Allen-Bradley
Enclosure Type Open
Part Number 505-AOD
Shelf C-15 Tub 6
Model 505-AOD
MPN 505-AOD
Type Motor Starter
