Product Description
The Allen-Bradley 509-TOD is a NEMA Size 00 magnetic motor starter assembly designed for motor control and overload protection applications. This unit combines a 3-pole magnetic contactor with a 3-pole thermal overload relay and manual reset mechanism. The starter is an open-type assembly intended for panel mounting.

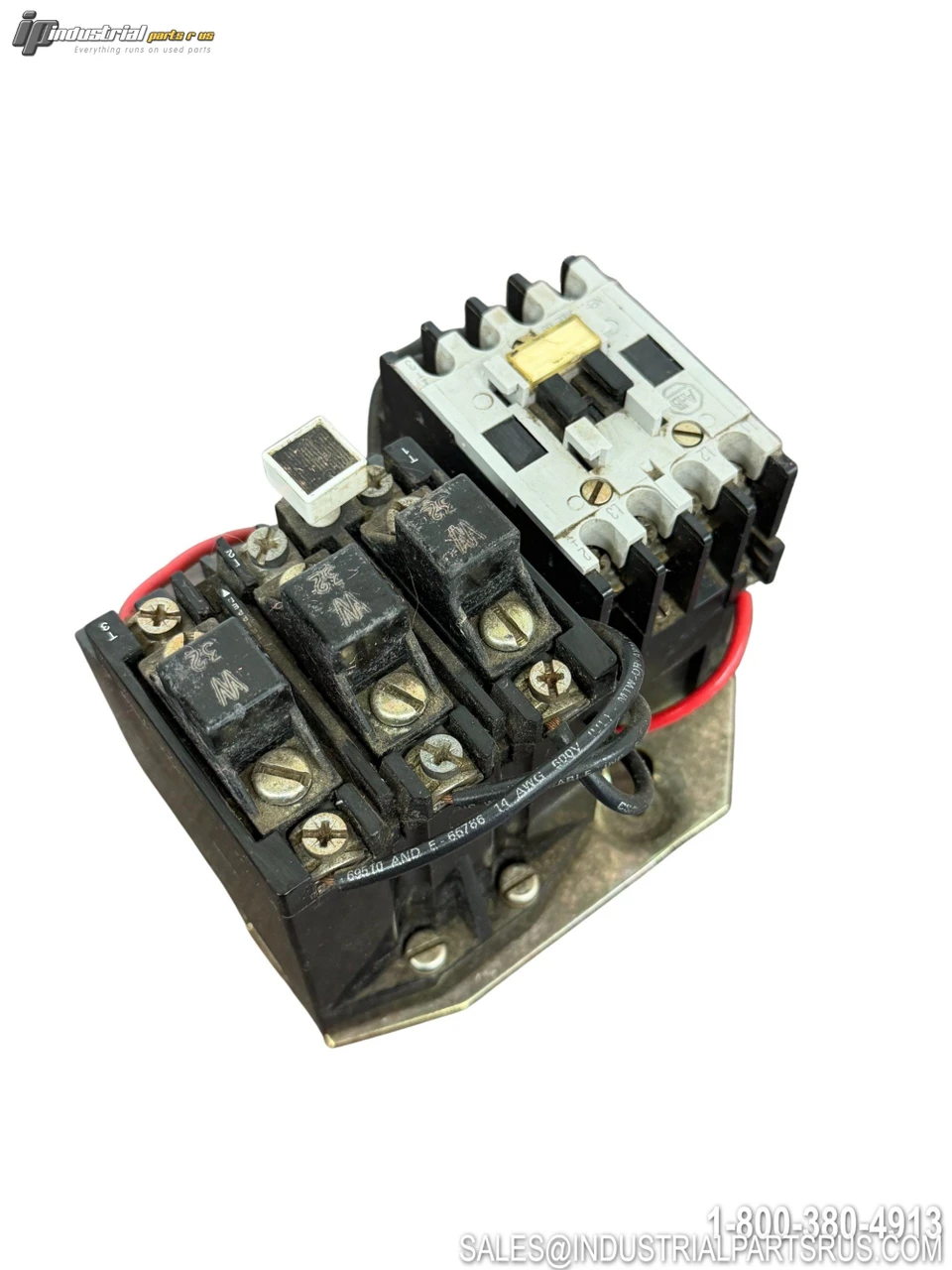

This unit includes three Allen-Bradley W32 overload heater elements, as shown in the photos. Please verify the installed heater element rating and motor application requirements before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 509-TOD |
| Product Type | Magnetic Motor Starter |
| NEMA Size | 00 |
| Number of Poles | 3 |
| Maximum Voltage | 600 VAC |
| Maximum Continuous Current | 9 A |
| Maximum Fuse | 20 A |
| Maximum Circuit Breaker | 30 A |
| 3-Phase Motor Rating @ 200V | 1.5 HP |
| 3-Phase Motor Rating @ 230V | 1.5 HP |
| 3-Phase Motor Rating @ 460V | 2 HP |
| 3-Phase Motor Rating @ 575V | 2 HP |
| Single-Phase Motor Rating @ 115V | 1/3 HP |
| Single-Phase Motor Rating @ 230V | 1 HP |
| Overload Protection | 3-Pole Thermal Overload Relay |
| Installed Heater Elements | 3 × Allen-Bradley W32 |
| Reset | Manual Reset |
| Enclosure | Open Type |
| Mounting | Panel Mount |
| Terminal Type | Screw Terminal |
| Manufacturer | Allen-Bradley |
Included: Allen-Bradley 509-TOD motor starter assembly with three W32 overload heater elements installed, as pictured.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Full Load Amps 11A
Manufacturer Allen-Bradley
Enclosure Type Open Type (No Enclosure)
Part Number 509-TOD
Shelf C-15 Tub 6
Model 509-TOD
MPN 509-TOD
Type Motor Starter
