Product Description
The Allen-Bradley 700-HAX272A is a general-purpose plug-in control relay from the Bulletin 700-HA family. This unit features a 24VDC coil and DPDT (2 Form C) contact configuration rated at 10A. The clear relay housing allows visual inspection of the internal relay mechanism.

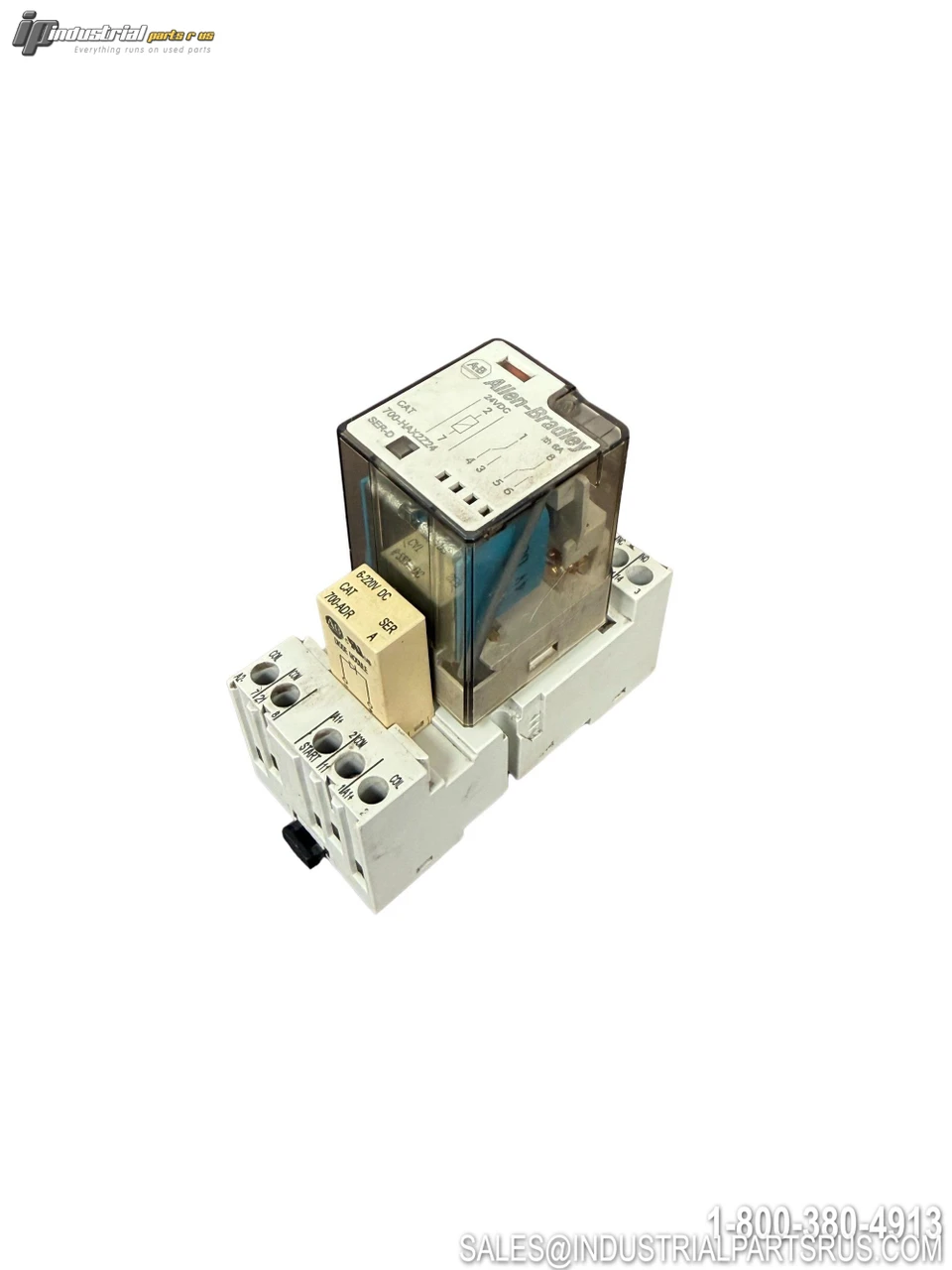

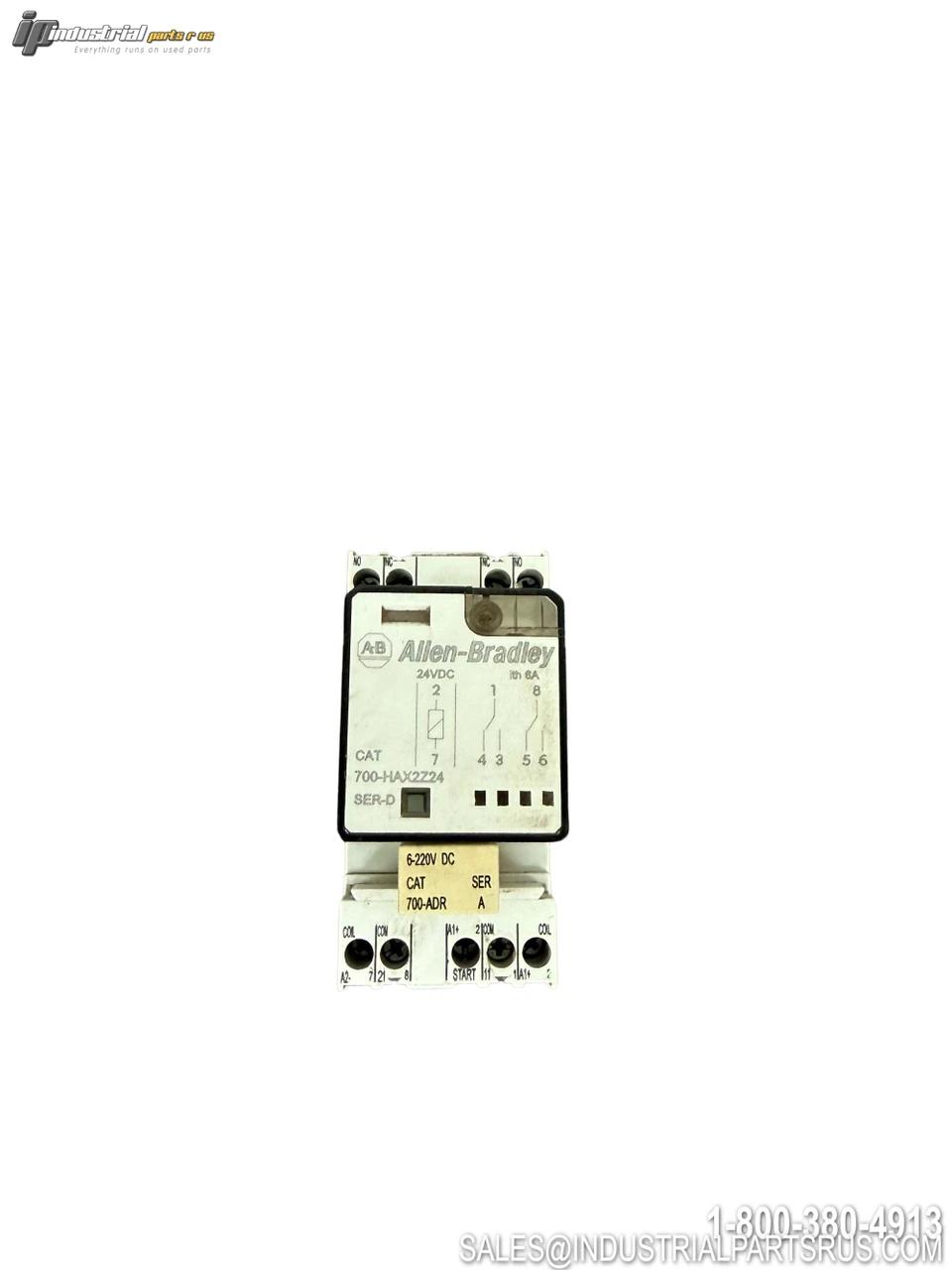

This unit is supplied with the Allen-Bradley 700-HN204 Series A relay socket and a 700-ADR Series A module rated for 6–220VDC, as shown in the photos.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Relay Catalog Number | 700-HAX272A |
| Relay Series | D |
| Product Type | General Purpose Plug-In Relay |
| Coil Voltage | 24VDC |
| Contact Configuration | DPDT / 2 Form C |
| Contact Rating | 10A |
| Relay Mounting | Plug-In Socket |
| Cover | Clear Plastic |
| Socket Catalog Number | 700-HN204 |
| Socket Series | A |
| Socket Rating | 10A, 300V |
| Accessory Module | 700-ADR |
| Accessory Module Series | A |
| Accessory Module Rating | 6–220VDC |
| Manufacturer | Allen-Bradley |
Included: 700-HAX272A relay, 700-HN204 socket, and 700-ADR module as pictured.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Plug-In (Octal/Tube Base)
Current Rating 6 A
Manufacturer Allen-Bradley
Part Number 700-HAX272A
Shelf C-15 tub 5
Model 700-HAX272A
Coil Voltage 72V AC
MPN 700-HAX272A
Type Control Relay
