Product Description

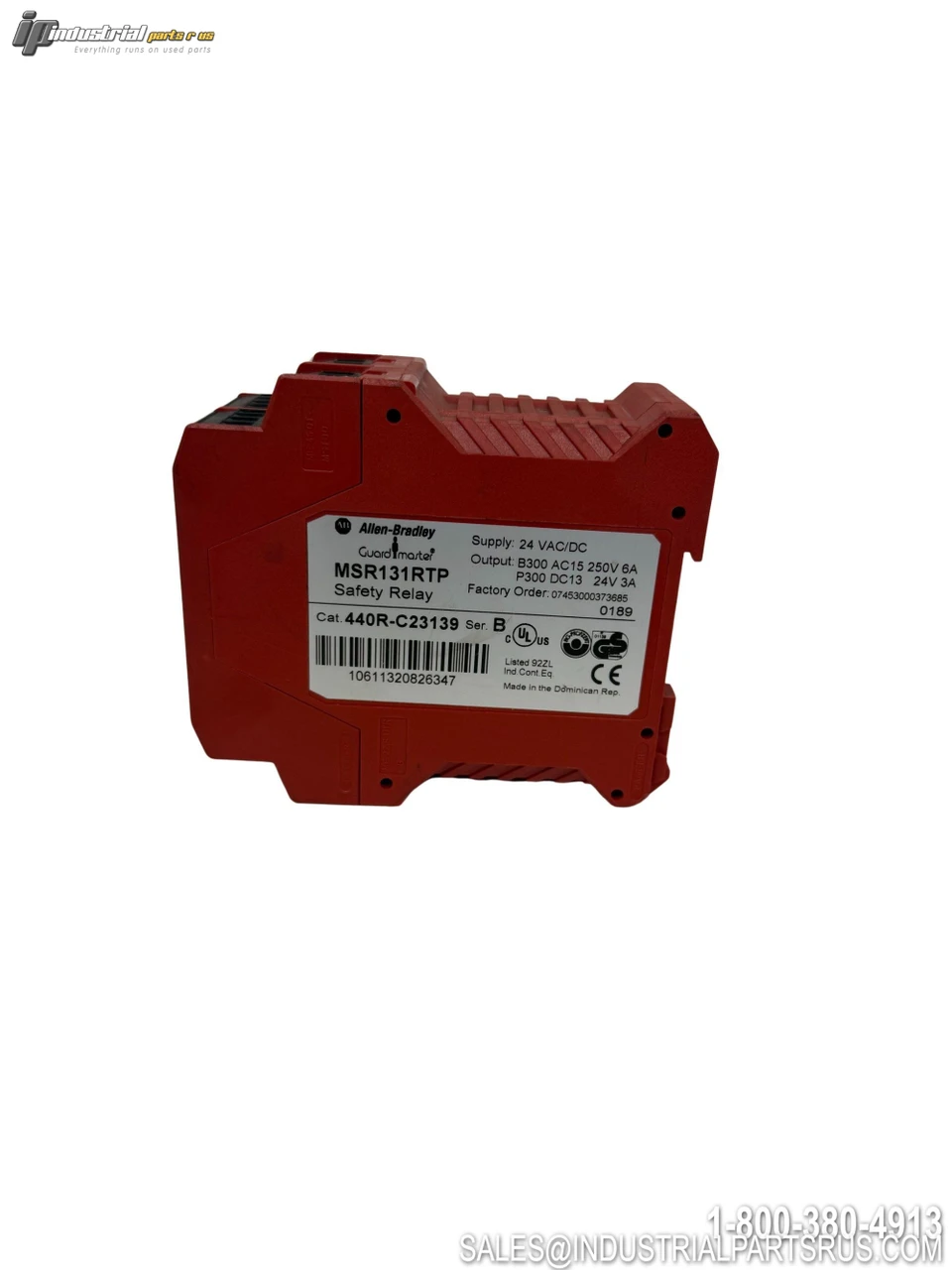

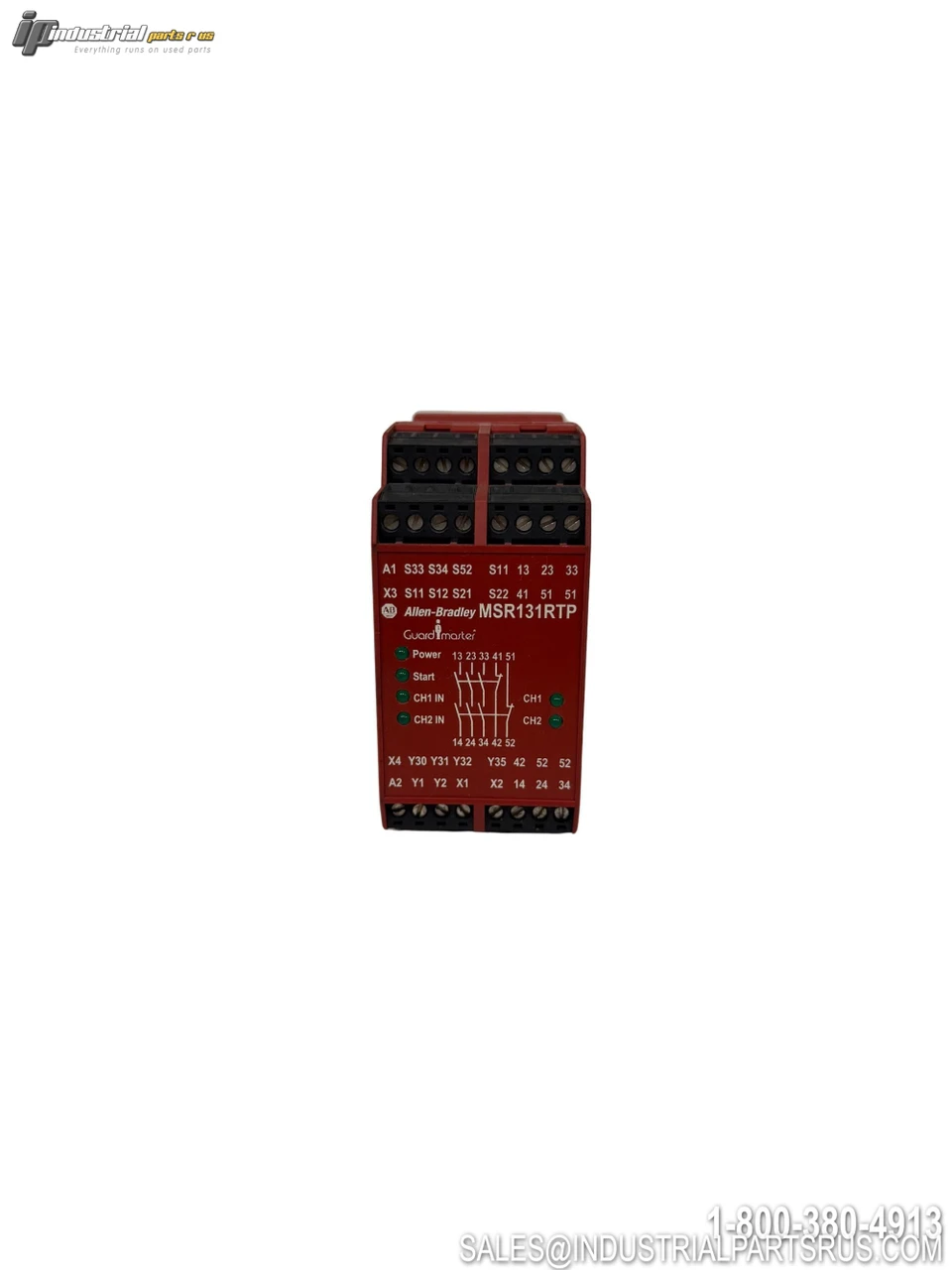

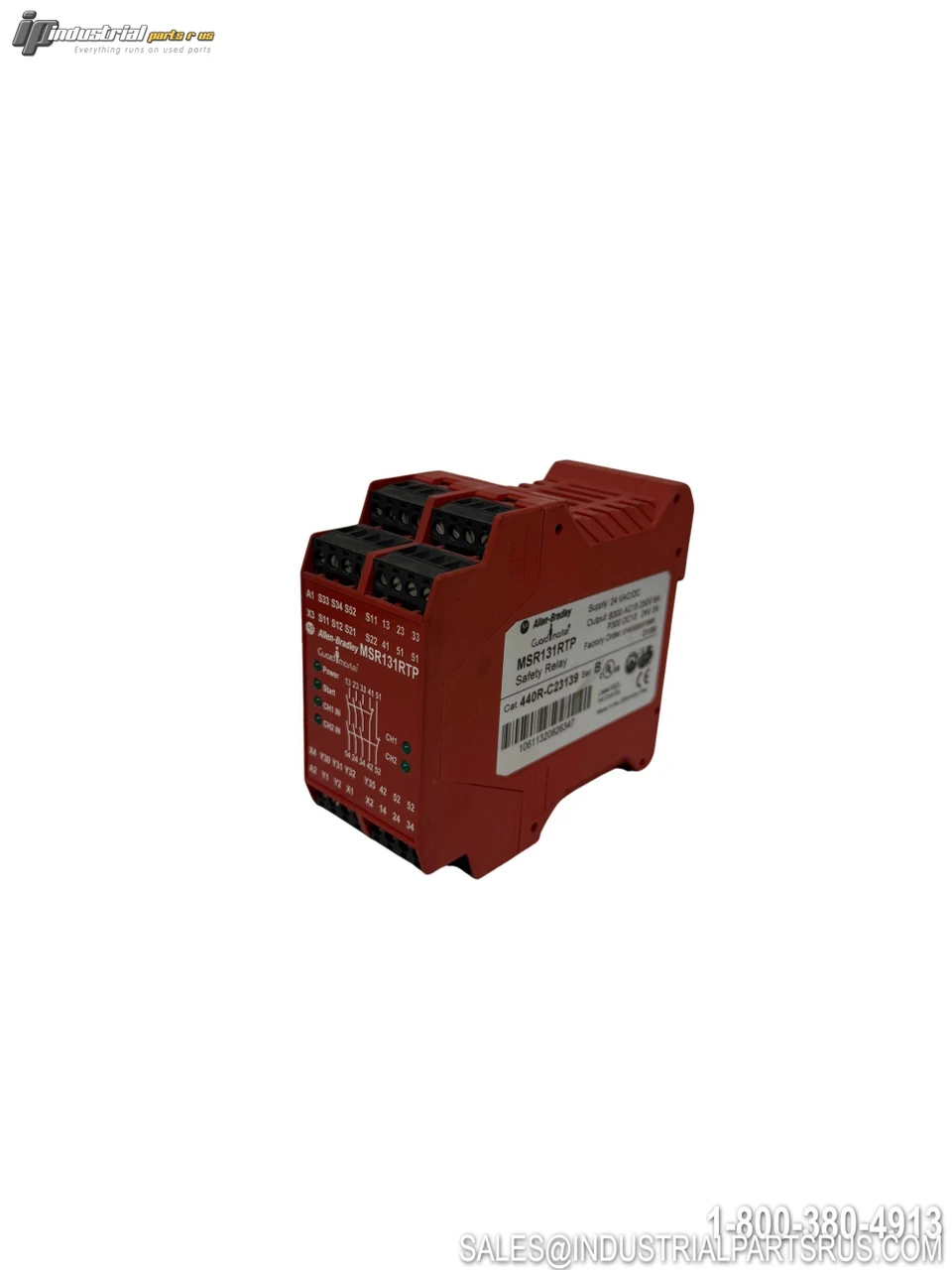

The Allen-Bradley MSR131RTP is a single-function monitoring safety relay from the Guardmaster Minotaur series, designed to monitor emergency-stop circuits, light curtains, safety mats, and safety gates. It accepts four different input wiring configurations — one N.C., two N.C., two PNP OSSD connections from a light curtain, or a four-wire safety mat — and provides three normally open safety-rated outputs, two normally closed auxiliary outputs, and two PNP solid-state outputs. The relay supports automatic/manual reset or monitored manual reset and achieves the highest safety ratings of Category 4 per ISO 13849-1 (Performance Level e) and SIL 3 per IEC 61508. Cross-fault detection is included for enhanced system integrity.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | MSR131RTP |
| Catalog Number | 440R-C23139 |
| Series (Hardware Rev.) | B |
| Platform / Range | Guardmaster Minotaur |
| Supply Voltage | 24V AC/DC |
| AC Output Rating | B300, AC15, 250V, 6A |
| DC Output Rating | P300, DC13, 24V, 3A |
| Contact Rating | 2.5 Amps |
| Safety Outputs (N.O.) | 3 |
| Auxiliary Outputs (N.C.) | 2 |
| Solid-State Outputs | 2 PNP Solid-State |
| Number of Channels | 2 |
| Input Configurations | 1 N.C., 2 N.C., OSSD (Light Curtain), 4-Wire Safety Mat |
| Reset Method | Automatic/Manual or Monitored Manual |
| Terminal Type | Removable Screw Terminals |
| Mounting Type | DIN Rail |
| Enclosure / Housing Width | 45mm |
| Depth | 99mm |
| Length / Height | 114.5mm |
| Safety Category (ISO 13849-1) | Category 4 |
| Performance Level (ISO 13849-1) | PLe |
| SIL (IEC 61508) | SIL 3 |
| Certifications / Standards | BG, C-Tick, CE, cULus, EN 954-1, DIN EN 60204-1 |
| Application / Function | E-Stop, Light Curtain, Safety Mat/Edge, Safety Gate Monitoring |
| Device Type | Basic Device, 1-Channel or 1 and 2-Channel |
We warranty all items for 30 days from date of purchase.
