Product Description

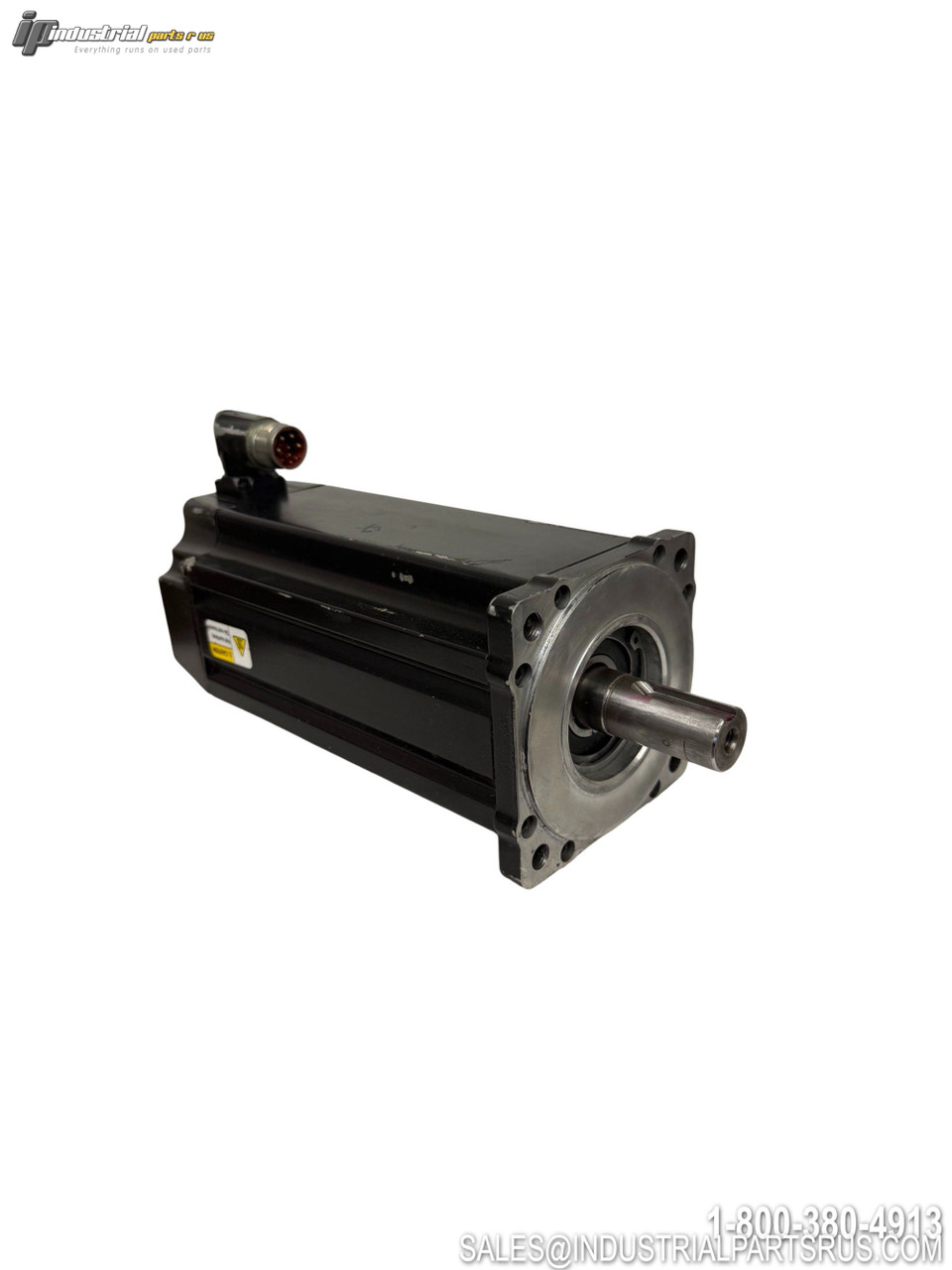

The Allen-Bradley VPL-B1304E-PJ14AA is a high-performance Kinetix VP Low Inertia Servo Motor designed for demanding motion control applications. This compact brushless servo motor features a 130mm bolt circle frame size with 4 magnet stacks and delivers 3500 RPM rated speed. It includes an integrated 24V DC holding brake and high-resolution digital encoder for precise positioning control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | VPL-B1304E-PJ14AA |
| Motor Type | Low Inertia Servo Motor |
| Series | Kinetix VP (VPL) |
| Voltage | 480V AC |
| Frame Size | 130mm Bolt Circle |
| Magnet Stack Length | 4 (Four) Magnet Stacks |
| Winding Type | E Winding |
| Rated Speed | 3500 RPM |
| Speed Range | 3300-3900 RPM |
| Encoder Type | 18-bit Single-turn and 12-bit Multi-turn Digital High Resolution |
| Encoder Technology | Hiperface DSL Encoder |
| Shaft Type | Keyed Shaft |
| Connector Type | Single SpeedTec Right Angle DIN |
| Brake | 24V DC Holding Brake |
| Mounting Type | IEC Metric Mounting Flange |
| Mounting Holes | Free Mounting Holes (Type FF) |
| Weight | 11.6 kg (24 lbs) |
| UPC | 885630796635 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Stall Torque 2.82 Nm
Manufacturer Allen-Bradley
Shaft Diameter 24.4mm
Part Number VPL-B1304E-PJ14AA
Shelf G-10
Model VPL-B1304E-PJ14AA
MPN VPL-B1304E-PJ14AA
Type AC Servo Motor
