Product Description

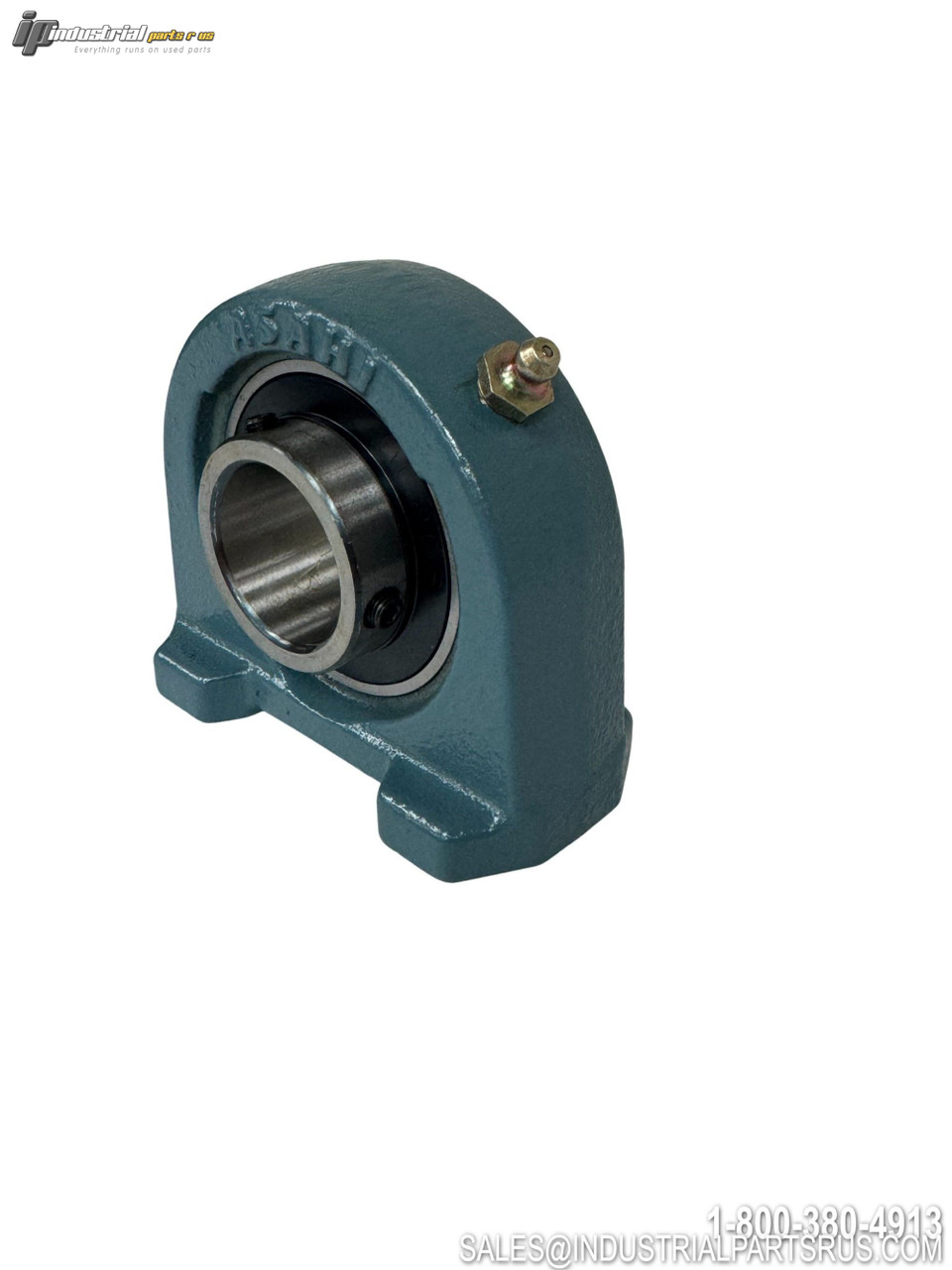

The AMI UCPA206 is a tapped base pillow block bearing unit designed for applications requiring space-efficient mounting. This unit features a 30mm bore, wide inner ring construction, and cast iron housing for reliable shaft support in industrial applications. The tapped base design allows mounting with two bolts through threaded holes in the base.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AMI |
| Model/Part Number | UCPA206 |
| Bore Diameter | 30mm (1.181 in) |
| Series | UCPA200 |
| Bearing Insert | UC206 |
| Housing Number | PA206 |
| Housing Material | Cast Iron |
| Inner Ring Width | Wide (38.10mm / 1.500 in) |
| Overall Length | 94mm (3.7 in) |
| Overall Height | 84mm (3.307 in) |
| Overall Width | 48mm (1.890 in) |
| Center to Base Height | 42.9mm (1.689 in) |
| Bolt Center Spacing | 66mm (2.598 in) |
| Mounting Type | Tapped Base |
| Number of Bolts | 2 |
| Bolt Size | M14 x 2 |
| Locking Type | Set Screw |
| Seal Type | Contact Seal with Slinger |
| Dynamic Load Rating | 19.5 kN |
| Static Load Rating | 11.3 kN |
| Lubrication Fitting | 1/8-27 NPT |
| Weight | 2.16 lbs |
| Application | General Purpose |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material Bearing Steel
Manufacturer Ami
Part Number UCPA206
Shelf GS-33
Bore Diameter 30 mm
Model UCPA206
MPN UCPA206
Type Pillow Block
