Product Description

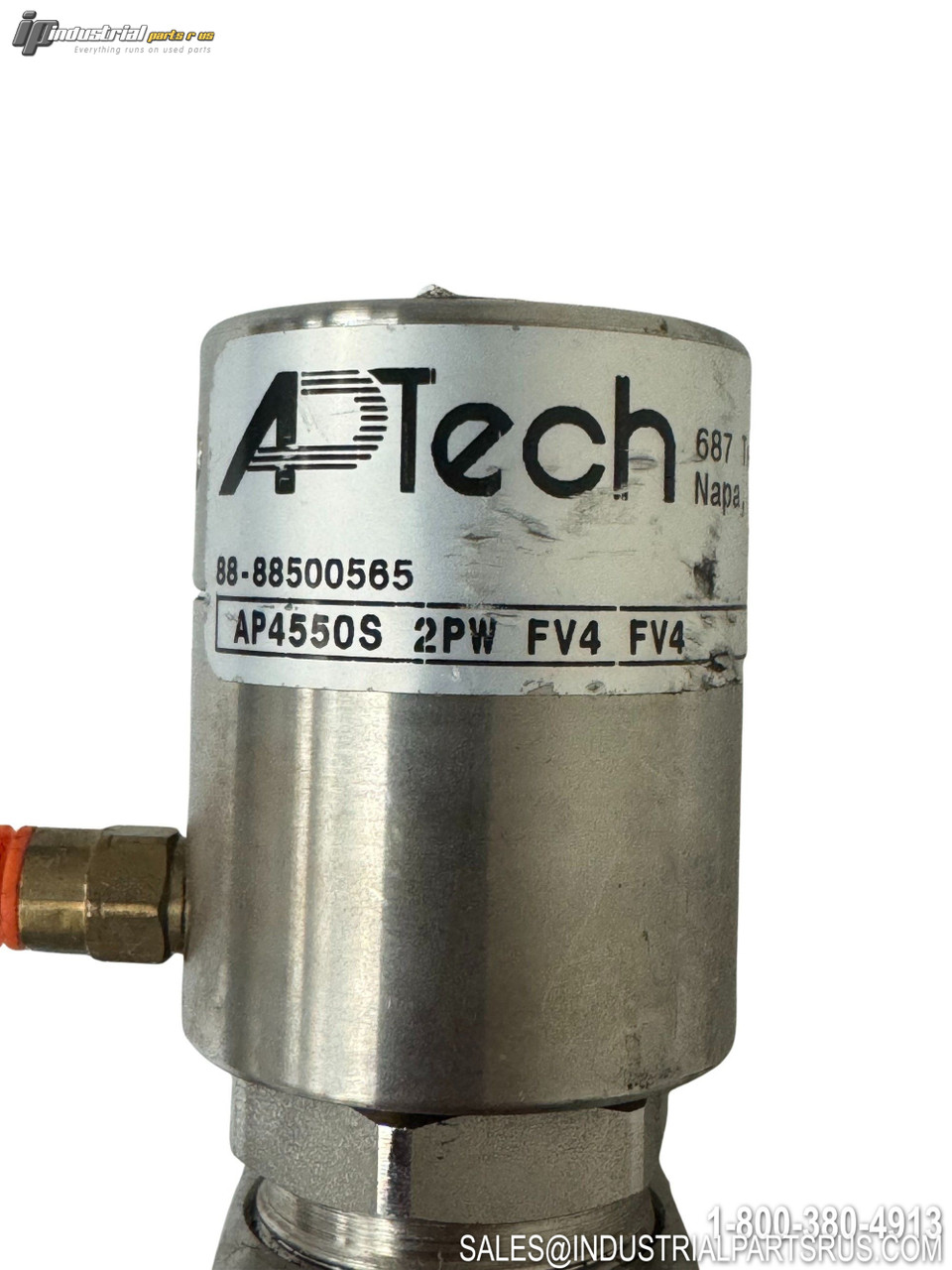

The AP Tech AP4550S 2PW FV4 is an Ultra High Purity (UHP) pneumatically-actuated diaphragm valve from Advanced Pressure Technology's AP4550 series. It features a 316L stainless steel secondary remelt body with 2-port welded construction and 1/4-inch face seal female (FV4) connections on both inlet and outlet. Designed for use in semiconductor gas delivery systems, wafer fabrication, and other cleanroom environments requiring contamination-free gas control, this normally closed, 2-way 2-position valve operates up to 300 PSIG and delivers a flow coefficient (Cv) of 0.5.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AP Tech (Advanced Pressure Technology) |
| Model / Part Number | AP4550S 2PW FV4 |
| Product Type | Pneumatic Diaphragm Valve (Air Operated, UHP) |
| Series | AP4550 |
| Body Material | 316L SS Secondary Remelt (S) |
| Diaphragm Material | Elgiloy® |
| Seat Material | PCTFE (standard; Vespel® optional) |
| Surface Finish | Electropolish + Passivation, Ra max 15 µin (0.4 µm) standard |
| Number of Ports | 2 Ports Welded (2PW) |
| Inlet Connection | 1/4" Face Seal Female (FV4) |
| Outlet Connection | 1/4" Face Seal Female (FV4) |
| Valve Status (Default) | Normally Closed (N.C.) |
| Maximum Operating Pressure | 300 PSIG (2.1 MPa / 21 BAR) |
| Operating Pressure Range | Vacuum to 300 PSIG (Vacuum to 2.1 MPa) |
| Proof Pressure | 1.5x Maximum Operating Pressure |
| Burst Pressure | 3x Maximum Operating Pressure |
| Flow Coefficient (Cv) | 0.5 |
| Actuation Pressure | 70 to 110 PSIG (5 to 8 bar) |
| Actuation Port | 1/8" NPT Female or 10-32 |
| Operating Temperature | -10°C to 71°C (No freezing) |
| Leak Test | Helium leak tested at 125 PSIG inlet |
| Purity Classification | Ultra High Purity (UHP) |
| Application | Semiconductor / Wafer Fabrication / Specialty Gas Delivery |
| Actuation Type | Pneumatic (Air Operated) |
