Product Description

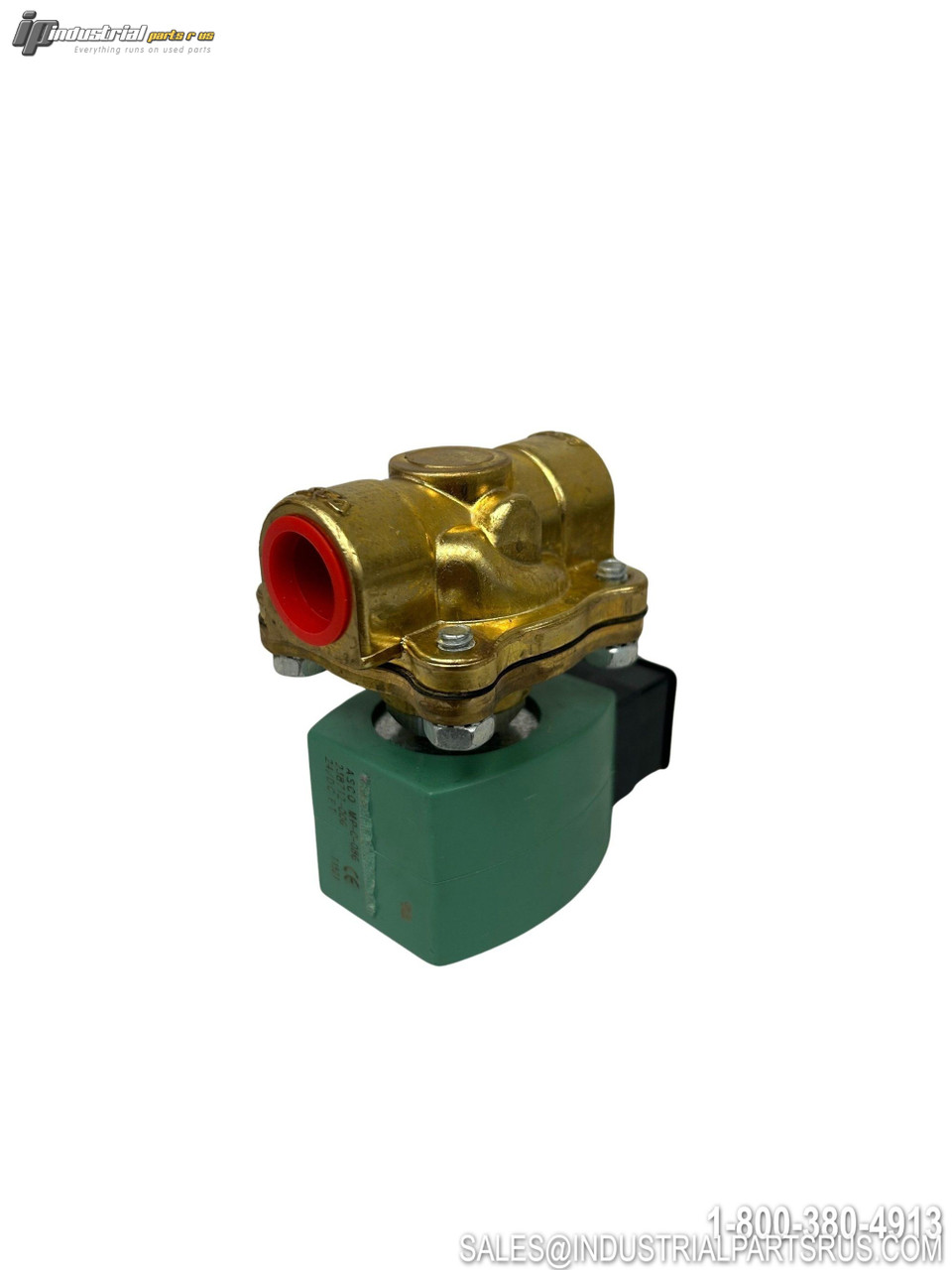

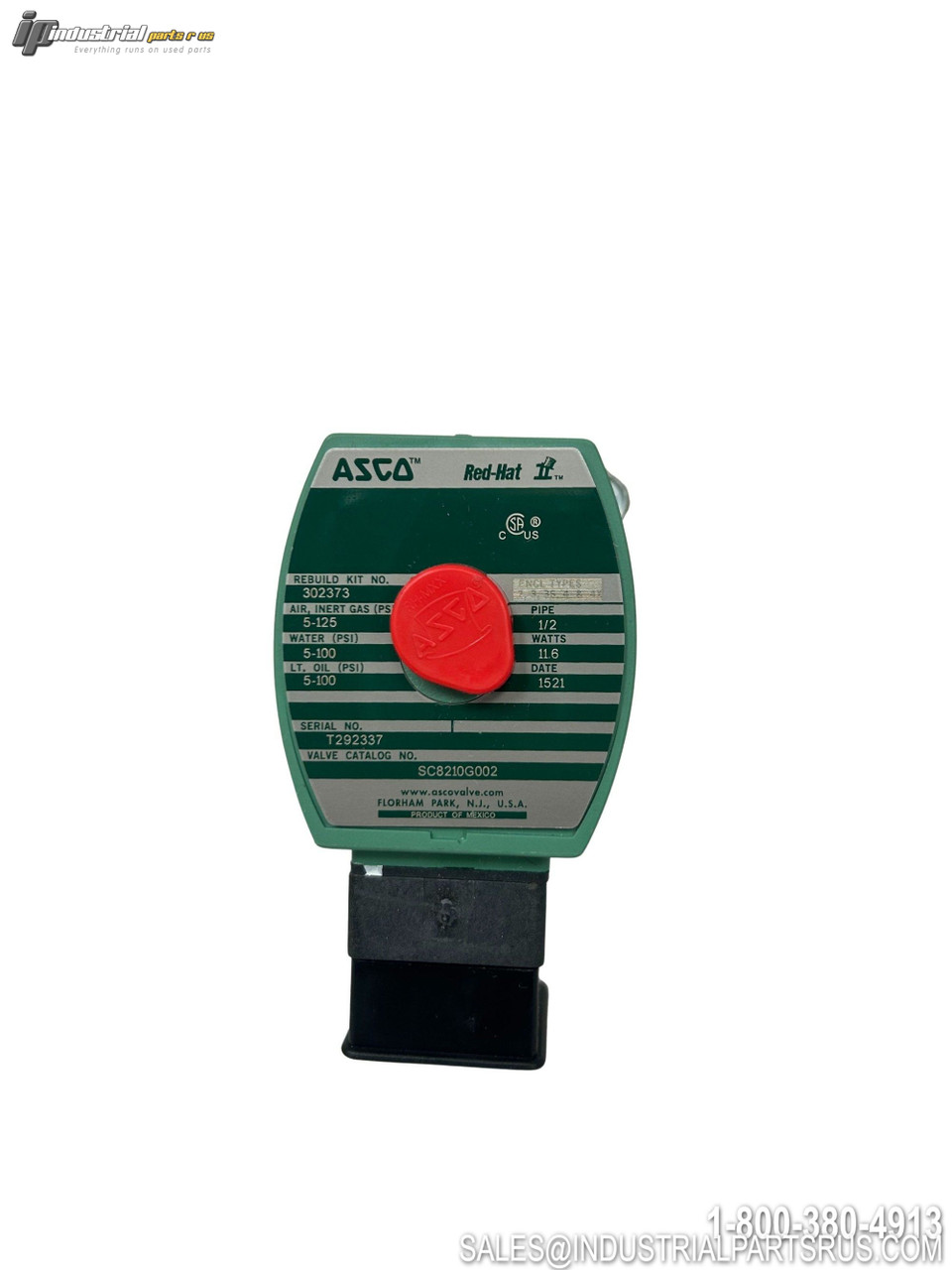

The Asco SC8210G002 is a Series 8210 pilot operated general service solenoid valve designed for reliable fluid control in industrial applications. This 2-way normally closed valve features brass construction and is suitable for air, water, and light oil service with excellent corrosion resistance and durability.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Asco |
| Model/Part Number | SC8210G002 |
| Series | 8210 |
| Type | Solenoid Valve |
| Configuration | 2-Way |
| Valve Operation | Normally Closed |
| Actuation | Pilot Operated |
| Pipe Size | 1/2 NPT |
| Orifice Size | 5/8 in |
| Cv Flow | 4 |
| Body Material | Brass |
| Seal Material | Buna-N (NBR) |
| Connection Type | Female Threaded (FPT) |
| Coil Voltage | See label - multiple options available |
| Operating Pressure | 5-200 psi (air), 5-150 psi (water), 5-135 psi (oil) |
| Max Temperature | 150°F to 180°F |
| Enclosure Rating | NEMA 1, 2, 3, 3S, 4, 4X |
| Media Compatibility | Air, Water, Light Oil |
| Construction | DIN Connection |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Asco
Enclosure Type NEMA 1, 2, 3, 3S, 4, 4X
Part Number SC8210G002
Shelf K-54
Model SC8210G002
MPN SC8210G002
Type Solenoid Valve
