Product Description

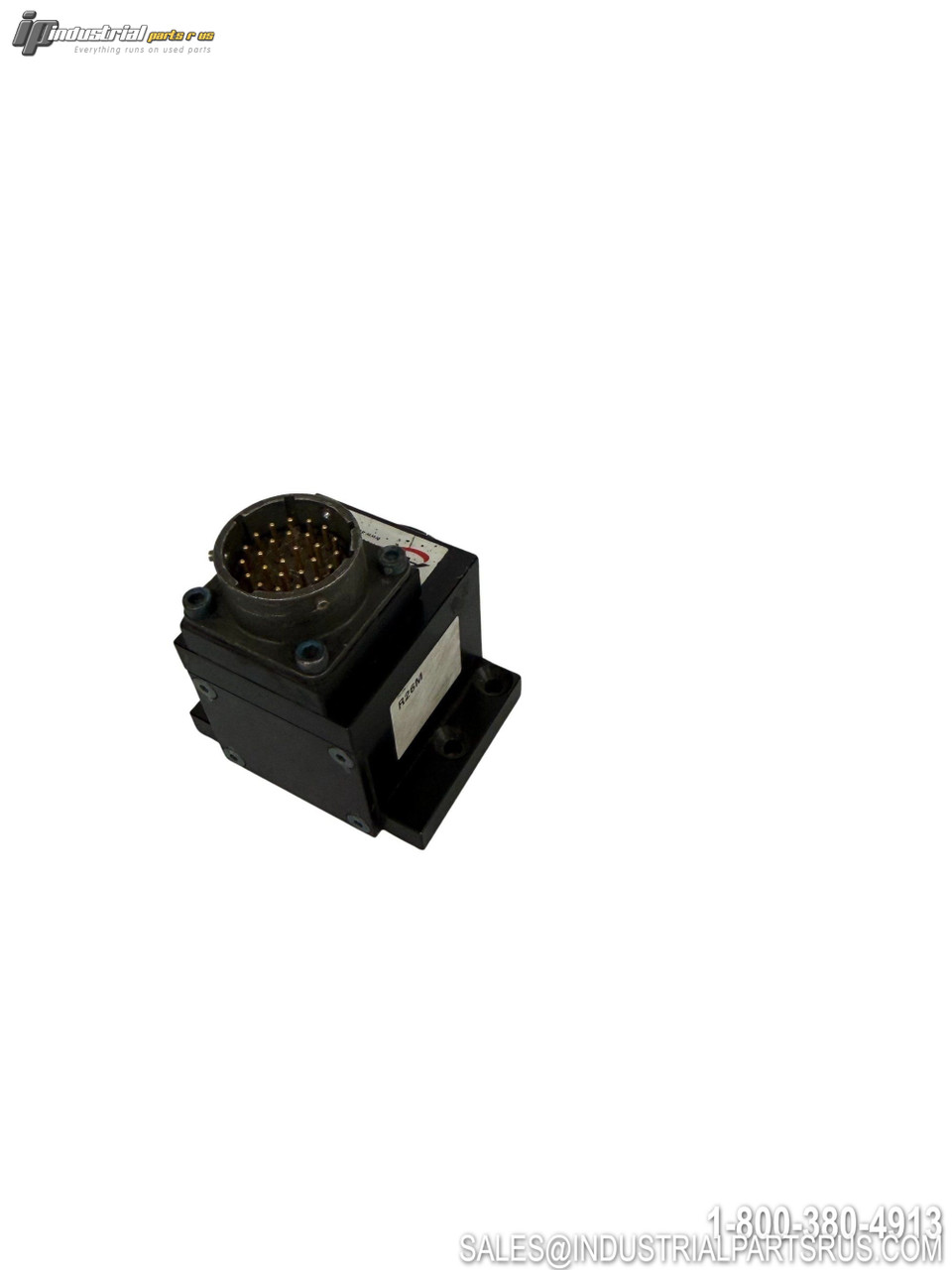

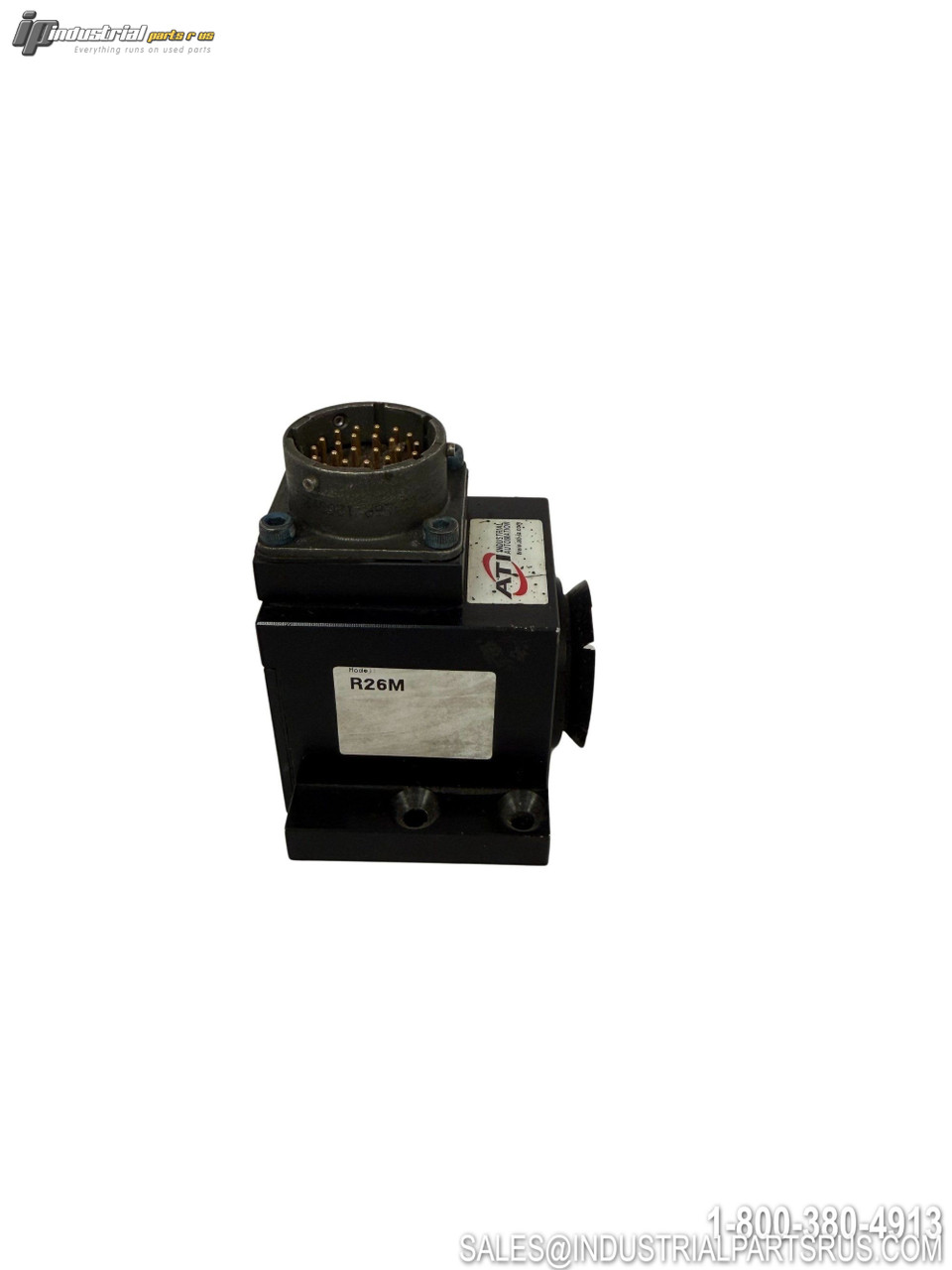

The ATI Industrial Automation R26M (catalog number 9120-R26-M) is the master-side 26-pin electrical pass-through module designed for ATI's Quick-Change (QC) robotic tool changer systems. It features a miniature MS quick-disconnect connector rated at 3A and 250VAC, enabling reliable digital electrical signal transfer between robot arm and end-effector tooling. The module is compatible with a wide range of ATI QC tool changer body sizes including QC-40, QC-41, QC-71, QC-110, QC-150, and QC-300.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | ATI Industrial Automation |
| Model / Part Number | R26M (9120-R26-M) |
| Product Type | Robotic Tool Changer Electrical Module – Master Side |
| Number of Pins | 26 Pins |
| Rated Current | 3A per pin |
| Rated Voltage (AC) | 250VAC |
| Connector Type | Miniature MS Quick-Disconnect |
| Side | Master Side (Robot Arm Side) |
| Compatible Tool Changer Models | QC-40, QC-41, QC-71, QC-110, QC-150, QC-300 |
| Application | Robotic End-of-Arm Tooling / Automatic Tool Changer |
| Housing Material | Aluminum |
| Seal Type | V-Ring Seal (watertight when locked) |
| Contact Pin Material | Gold-plated spring housing (Master side) |
| Manufacturer Location | Apex, NC, USA |
| Related Module (Tool Side) | 9120-R26-T (R26T) |
| High-Temp Variant | R26-VL (Viton seals, Teflon wires, rated to 125°C) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Shelf D-10 Tub 1
GTIN 679523686161
Manufacturer ATI
Part Number R26M
Model R26M
MPN R26M
Type I/O Module
