Product Description

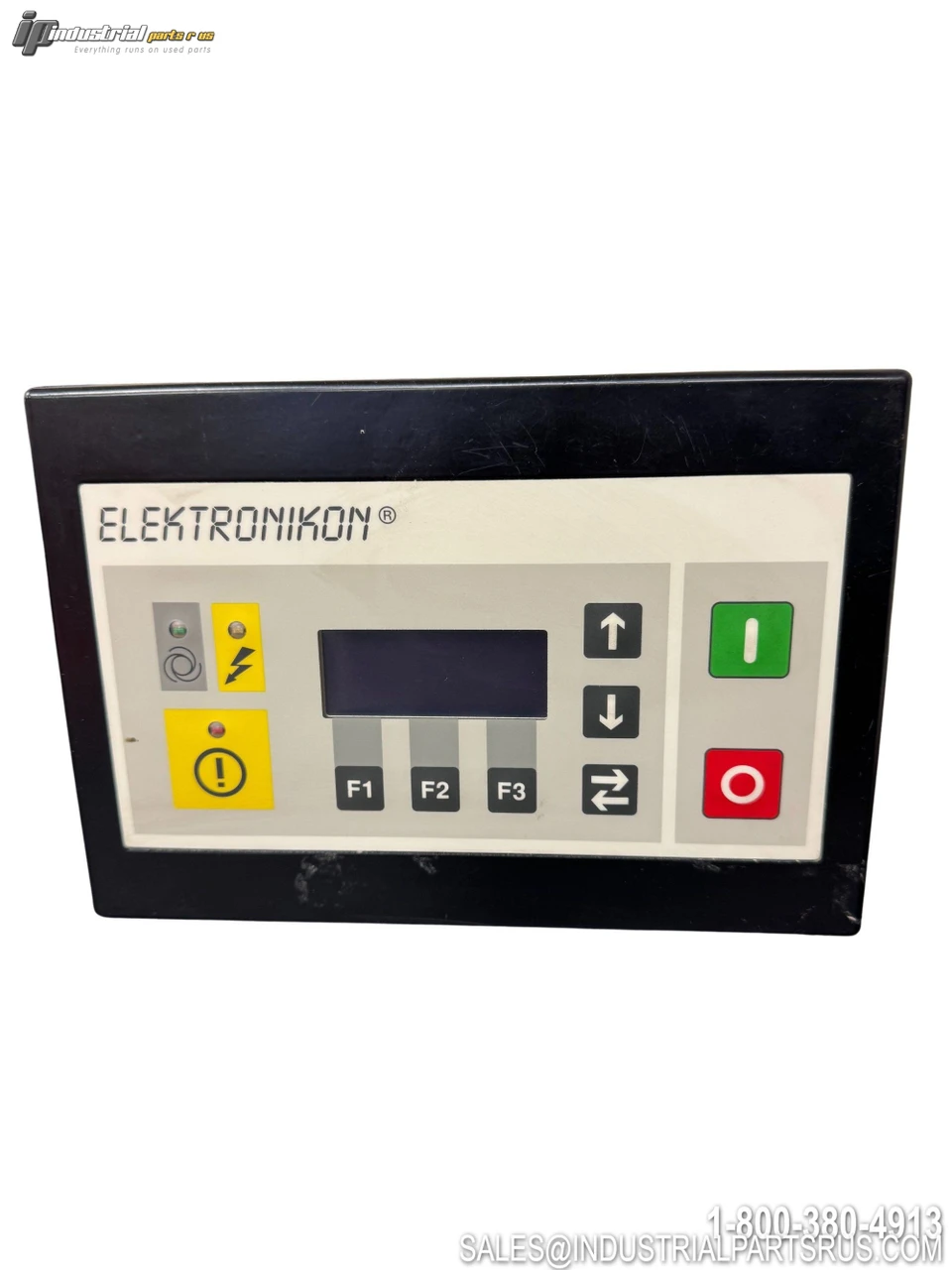

The Atlas Copco 1900070003 (also known as 1900-0700-03) is an Elektronikon Mk4 series controller panel designed for Atlas Copco rotary screw air compressors, including GA and GX series stationary compressor units. It serves as the primary operator interface and control brain of the compressor system, providing start/stop control, fault monitoring, parameter display, and system management functions. The panel features a membrane keypad with tactile button switches and an integrated 4-line LCD display (4×20 character) for real-time compressor status readout. Advanced features include Automatic Restart After Voltage Failure (ARAVF), dual pressure band operation, programmable day/week timers, and remote start/stop capability.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Atlas Copco |
| Model / Part Number | 1900070003 |
| Alternate Part Numbers | 1900-0700-03, 1900 0700 03 |
| Series / Platform | Elektronikon Compressor Controller |
| Product Type | Controller Panel / Operator Interface |
| Application | Atlas Copco Rotary Screw Air Compressors (GA, GX, ZR/ZT series) |
| Supply Voltage | 24VAC / 18VA |
| Relay Output Rating | 250V AC, 10A Max |
| Interface Type | Membrane Keypad with LCD Display |
| Control Functions | Start/Stop, Fault Monitoring, Parameter Display, System Management |
| Compatible Compressor Types | Stationary Rotary Screw Air Compressors |
| Cross-References (same family) | 1900070004, 1900070005, 1900070006, 1900070007 |
| Note | Machine nameplate / model required for program loading at installation |
We warranty all items for 30 days from date of purchase.
