Product Description

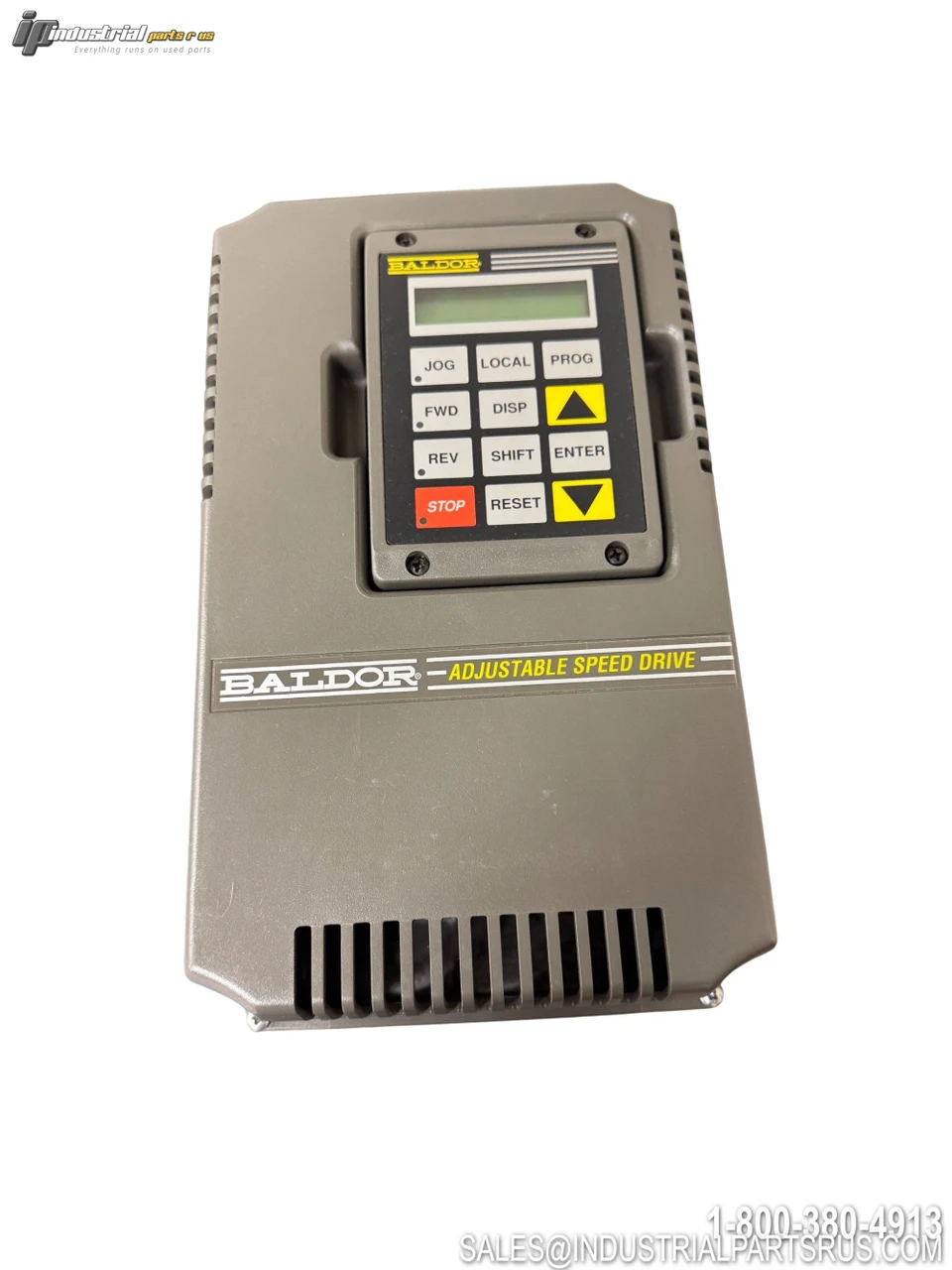

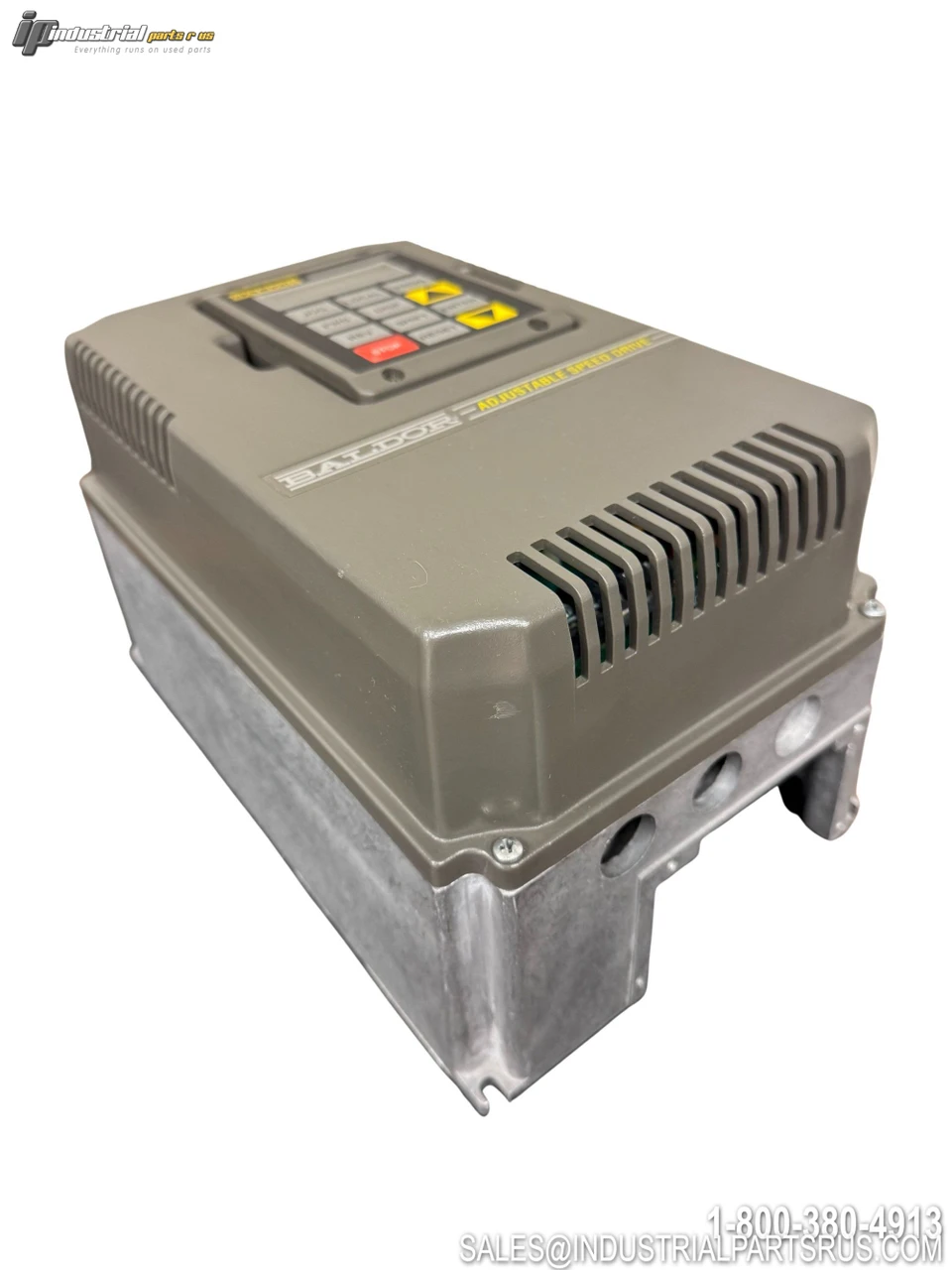

The Baldor ID15201-E is a Series 15 PWM AC inverter adjustable speed drive designed for single- or three-phase 230 VAC input. Rated at 1 HP with a 5.6-amp input current and 5 RMS / 10 peak output amps, it provides variable frequency motor speed control in a compact package. This product has been discontinued by the manufacturer and is available only through the secondary market.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Baldor |
| Model / Part Number | ID15201-E |
| Product Type | AC Inverter / Variable Frequency Drive |
| Product Series | Series 15 |
| Spec Number | FIF0001C-00 |
| Rated Power (HP) | 1 HP |
| Input Voltage | 230 VAC |
| Input Phase | 1 or 3 Phase |
| Input Frequency | 50/60 Hz |
| Input Current | 5.6 Amps |
| Output Voltage | 0–230 VAC |
| Output Current (RMS) | 5 A RMS |
| Output Current (Peak) | 10 A Peak |
| Control Type | PWM (Pulse Width Modulation) |
| Enclosure Type | NEMA 1 (Open / -E suffix) |
| Mounting Method | Vertical Surface |
| Weight | 18 lbs (per label) / 15 lbs (per Radwell) |
| Status | Discontinued by Manufacturer |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture United States
Full Load Amps 10A
Manufacturer Baldor
Enclosure Type NEMA 1
Part Number ID15201-E
Shelf K-36
Input Voltage 230V AC
Model ID15201-E
MPN ID15201-E
Type Variable Frequency Drive
