Product Description

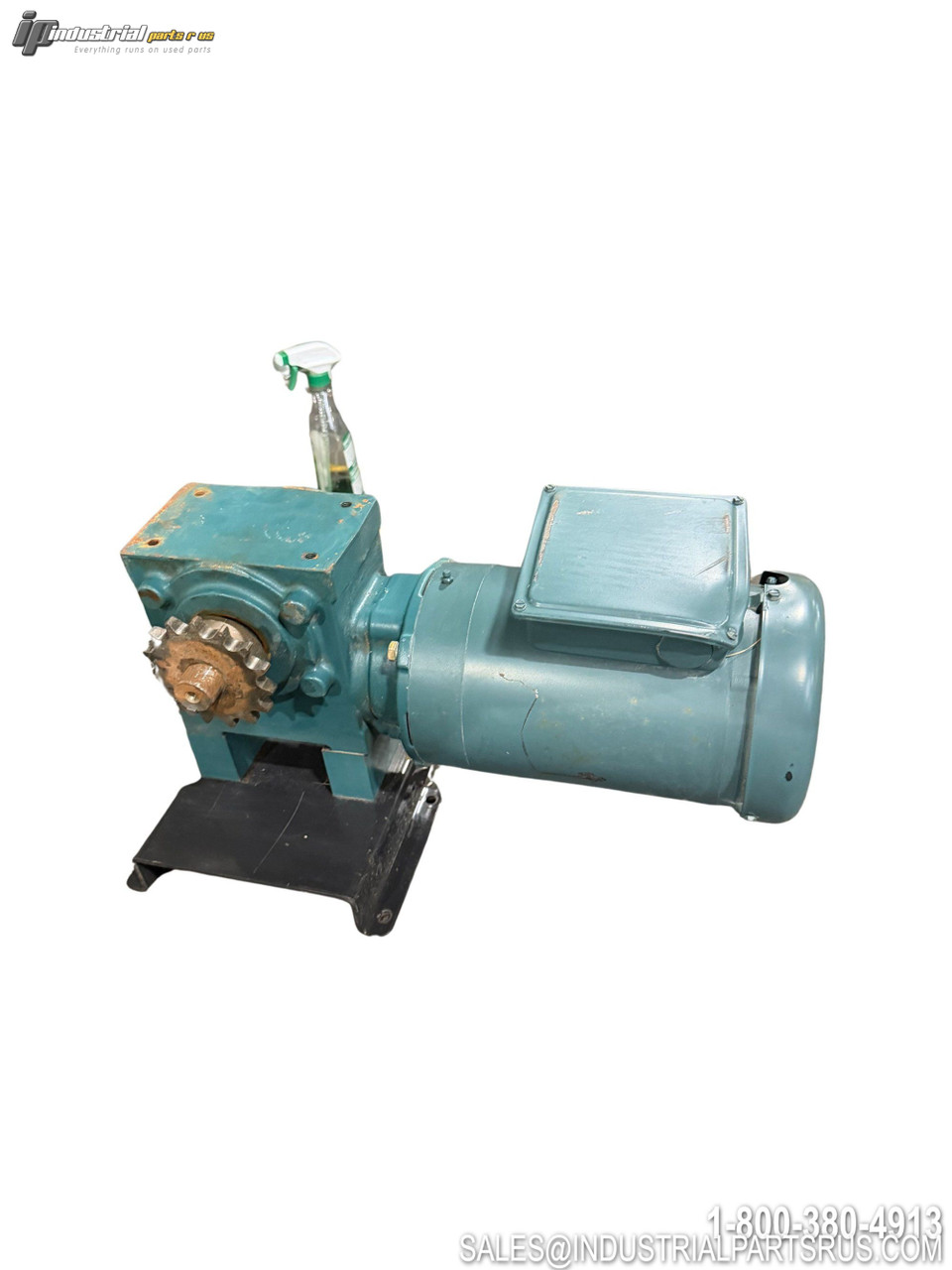

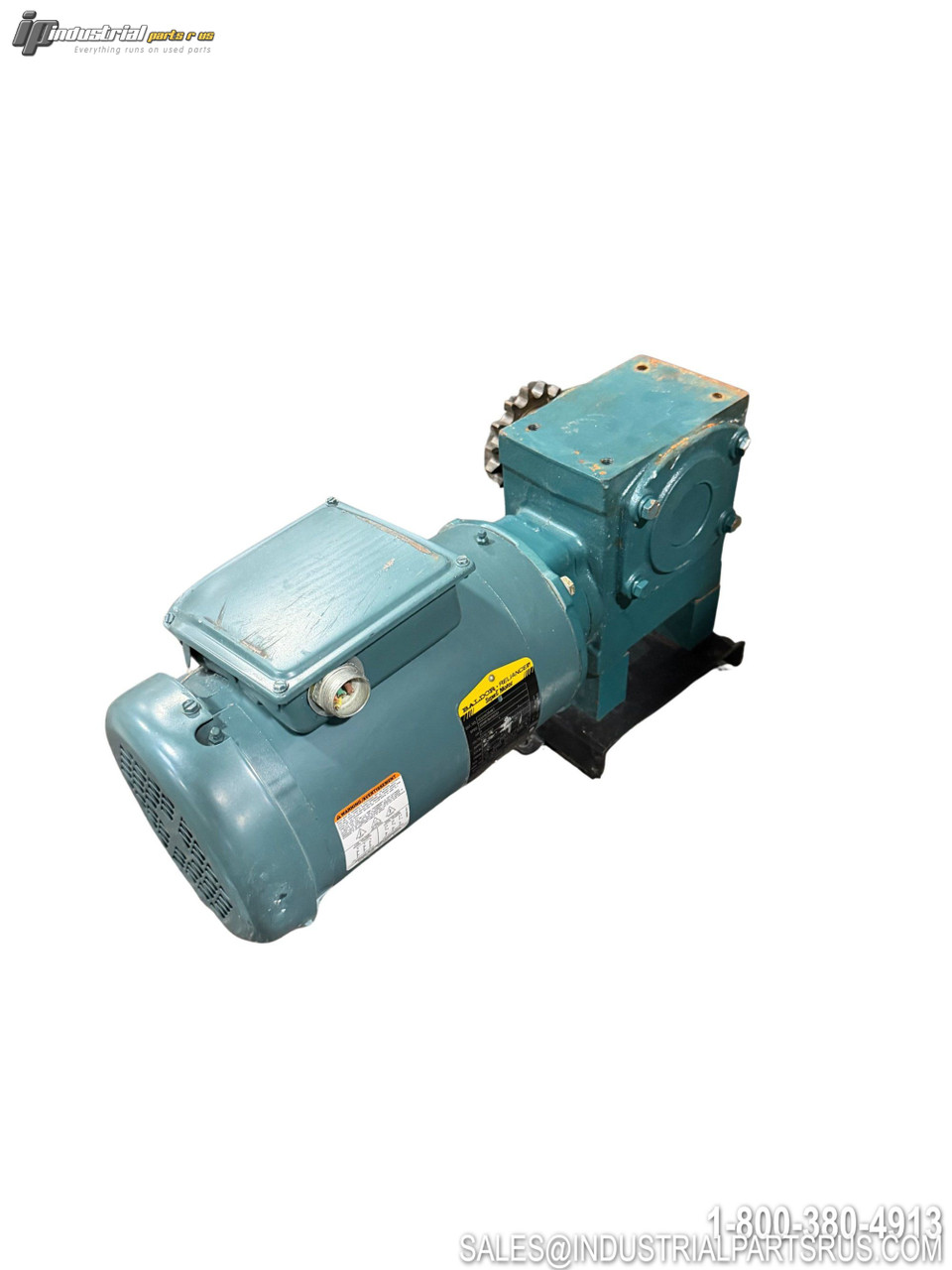

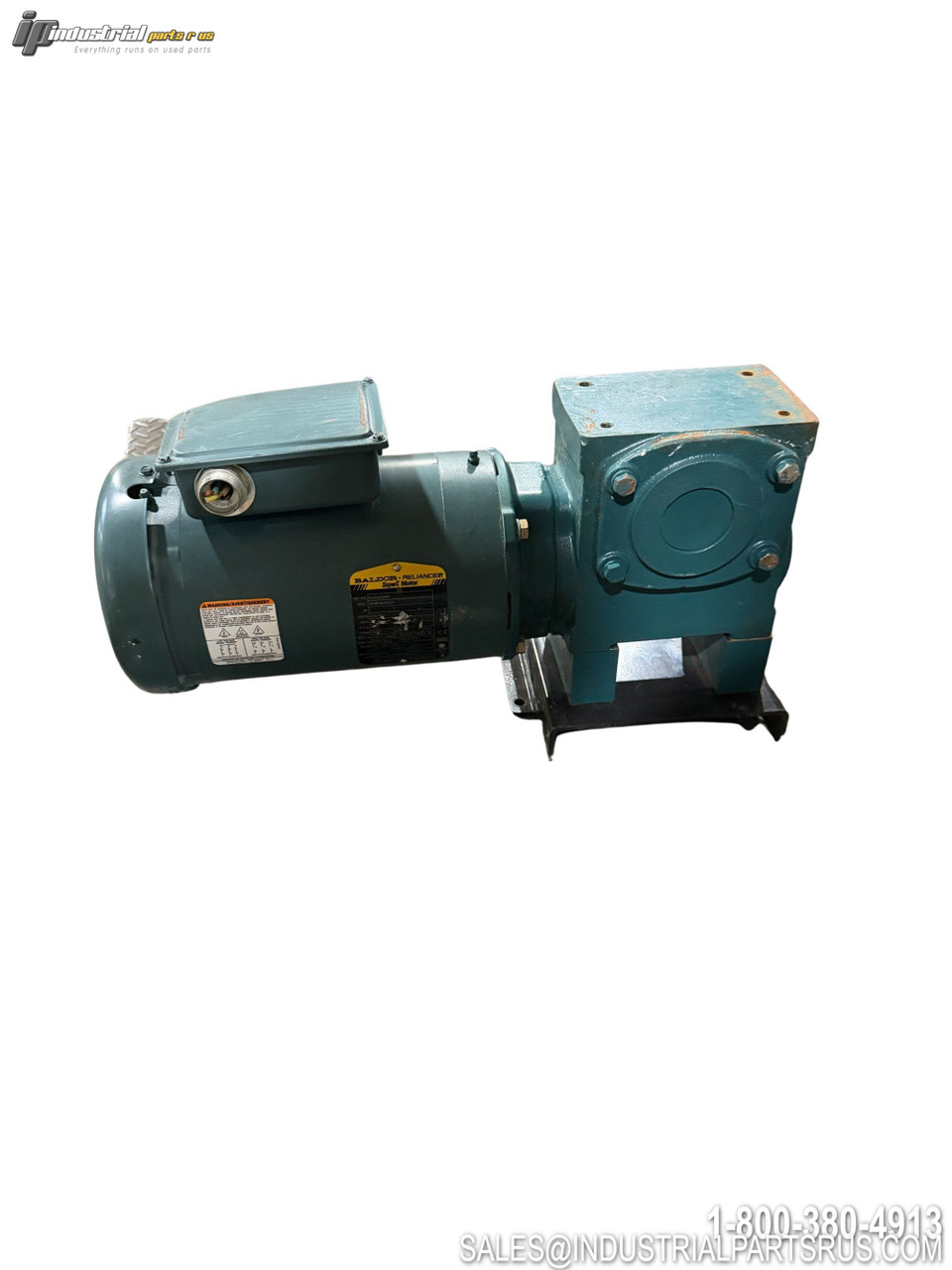

The Baldor VEUHM3546T is a 1 HP, 3-phase, Totally Enclosed Fan Cooled (TEFC) AC induction motor designed for unit handling and conveyor applications. It features a NEMA 143TC frame with C-face (F3) footless mounting, operates on 230/460V at 60 Hz, and is rated inverter duty for use with variable frequency drives. Built to NEMA Premium Efficiency standards with Class F insulation and a 1.15 service factor, this motor delivers reliable continuous-duty performance in demanding industrial environments.

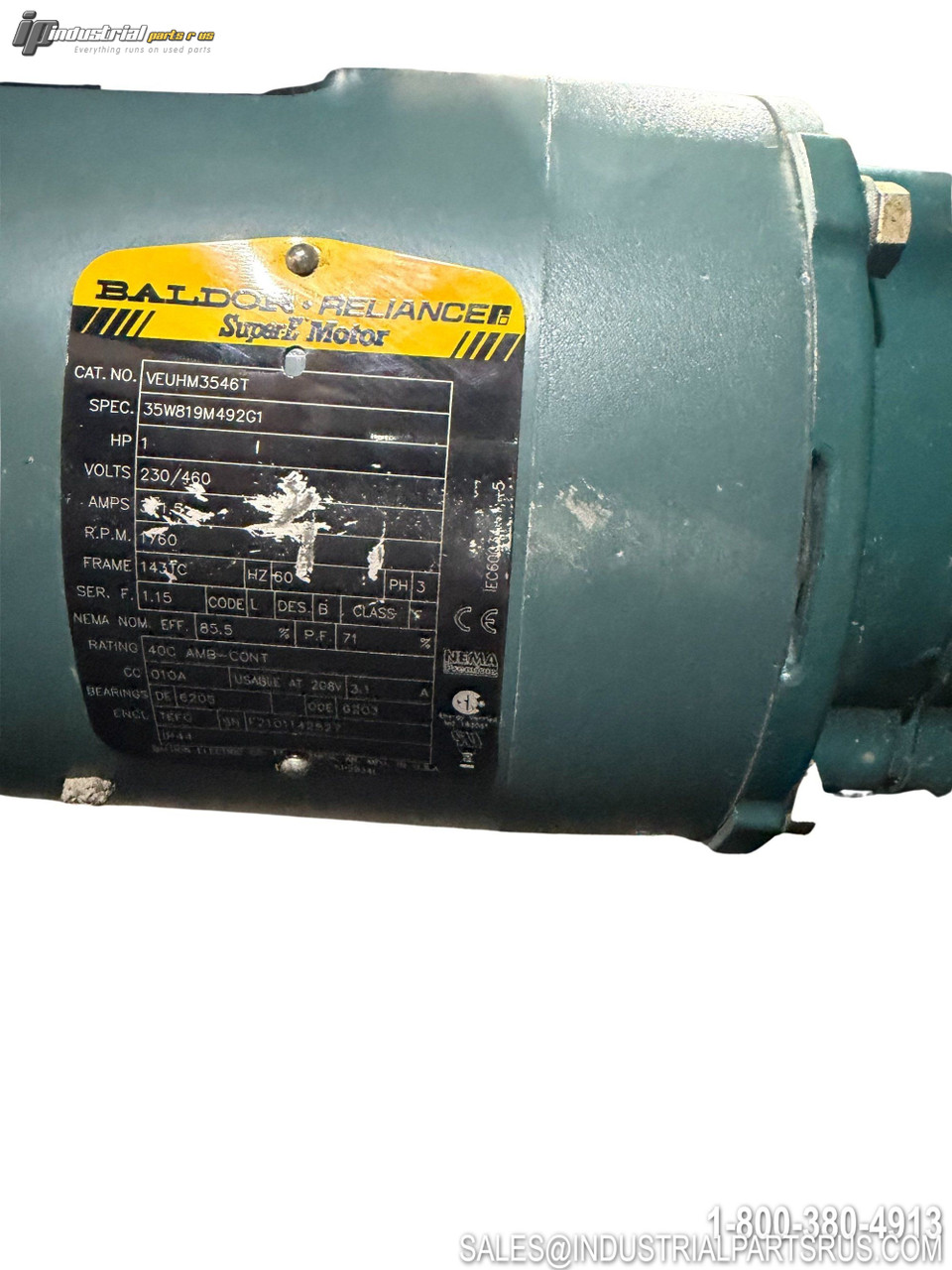

Technical Specifications
| Specification | Value |
|---|---|
| Brand | Baldor-Reliance |
| Model / Part Number | VEUHM3546T |
| Horsepower | 1 HP (0.75 kW) |
| Rated Speed (RPM) | 1760–1770 RPM |
| Synchronous Speed | 1800 RPM |
| Phase | 3 |
| Voltage | 208-230/460V |
| Frequency | 60 Hz |
| Full Load Amps | 3.2A @ 208V / 3.2A @ 230V / 1.6A @ 460V |
| Frame | 143TC |
| Frame Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Mounting Type | C-Face, Footless (F3) |
| Number of Poles | 4 |
| Design Code | NEMA Design B |
| Insulation Class | F |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 85.5% |
| Power Factor | 69 |
| KVA Code | L |
| Shaft Diameter | 0.875 in (7/8") |
| Overall Length | 13.29 in |
| Shaft Rotation | Reversible |
| Bearing Type | Ball |
| Bearing Grease Type | Polyrex EM (-20°F to +300°F) |
| Inverter Duty | Yes (Inverter Ready) |
| Duty Rating | Continuous (CONT) |
| Ambient Temperature | 40°C Max |
| Number of Speeds | 1 |
| Product Family | Unit Handling (General Purpose) |
| Agency Approvals | CE, CSA, UR, NEMA Premium, EEV, WEEE |
| Hazardous Location | None / Not Applicable |
| Motor Weight | 38 lbs (17.21 kg) |
| Manufacturer Model # | 35W819G004G1 |
| Motor Lead Quantity / Wire Size | 9 leads @ 18 AWG |
| Conduit Box Material | Steel |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Shelf Freight Pallet
GTIN 679523686161
Full Load Amps 3.2A @ 208V / 3.2A @ 230V / 1.6A @ 460V
Manufacturer Baldor
Shaft Diameter 0.875 in
Enclosure Type TEFC
Part Number VEUHM3546T
Model 23Q15R14
MPN VEUHM3546T
Type AC Motor
