Product Description

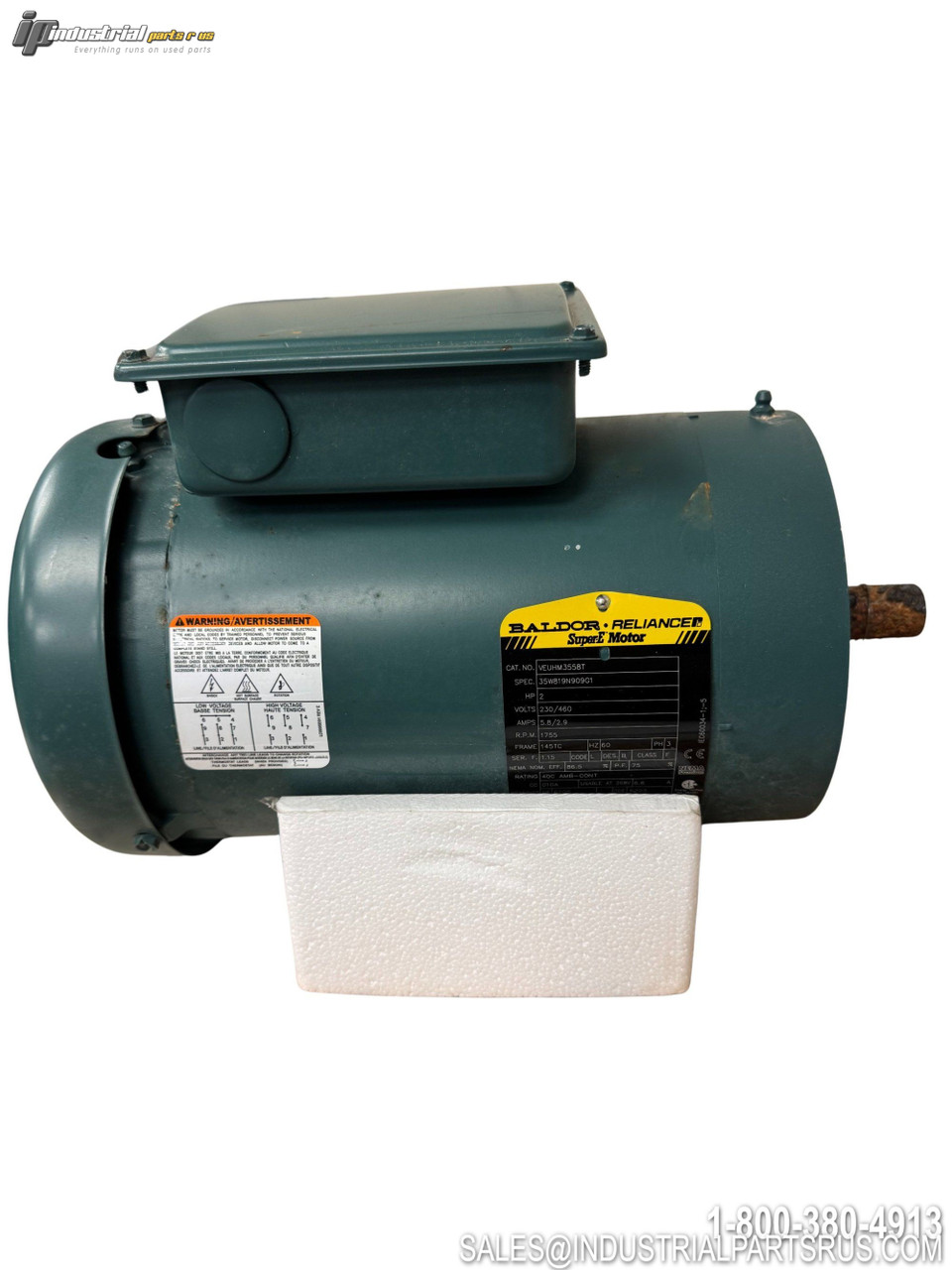

The Baldor VEUHM3558T is a 2 HP three-phase AC unit handling motor designed for demanding industrial applications including baggage handling, conveyors, packaging equipment, machine tools, hoists, and elevator and door openers. It features a TEFC (Totally Enclosed Fan Cooled) steel frame construction with a C-Face footless mounting configuration, making it well-suited for direct-coupled drive installations. The motor is inverter ready and carries NEMA Premium efficiency ratings with a 145TC frame at 1800 RPM synchronous speed on 230/460V, 60 Hz power.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Baldor (Baldor-Reliance) |
| Model / Part Number | VEUHM3558T |
| Motor Type | AC Unit Handling Motor, Three Phase |
| Output / Horsepower | 2 HP (1.5 kW) |
| Synchronous Speed | 1800 RPM @ 60 Hz |
| Full Load Speed | ~1750–1760 RPM |
| Voltage | 208-230/460V @ 60 Hz |
| Phase | 3 |
| Frequency | 60 Hz |
| Full Load Amps | 6.6A @ 208V / 5.8A @ 230V / 2.9A @ 460V |
| High Voltage Full Load Amps | 2.9 A |
| Frame | 145TC |
| Frame Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Mounting Type | C-Face, Footless (F3 — No Base) |
| Number of Poles | 4 |
| Insulation Class | F |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 86.5% |
| Power Factor | 80% |
| Design Code | B (NEMA Design B) |
| KVA Code | L |
| Inverter Ready | Yes |
| Shaft Diameter | 0.875 in (7/8") |
| Overall Length | 13.29 in |
| Bearing Type | Ball Bearings |
| Bearing Grease | Polyrex EM (-20°F to +300°F) |
| Ambient Temperature | 40°C (Max) |
| Duty Rating | Continuous (CONT) |
| Rotation | Reversible |
| Number of Speeds | 1 |
| Conduit Box Material | Steel (Oversized, Top-Mounted) |
| Agency Approvals | CE, CSA, UR |
| Motor Standards | NEMA |
| Weight | 48 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 2.9 A @ 460V / 5.8 A @ 230V / 6.6 A @ 208V
Manufacturer Baldor
Shaft Diameter 0.875 in
Enclosure Type TEFC
Part Number VEUHM3558T
Shelf G-12
Model VEUHM3558T
MPN VEUHM3558T
Type AC Motor
