Product Description

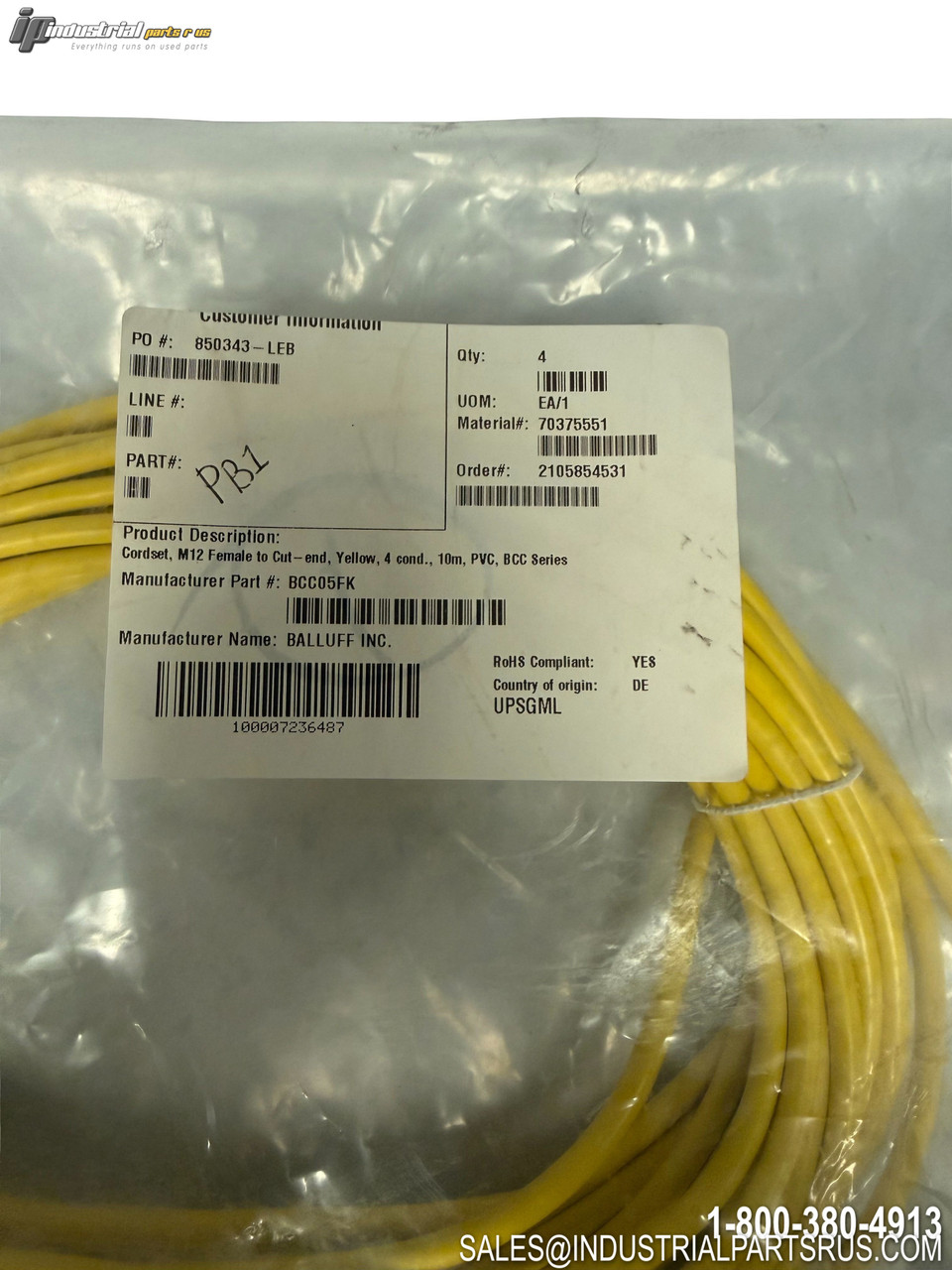

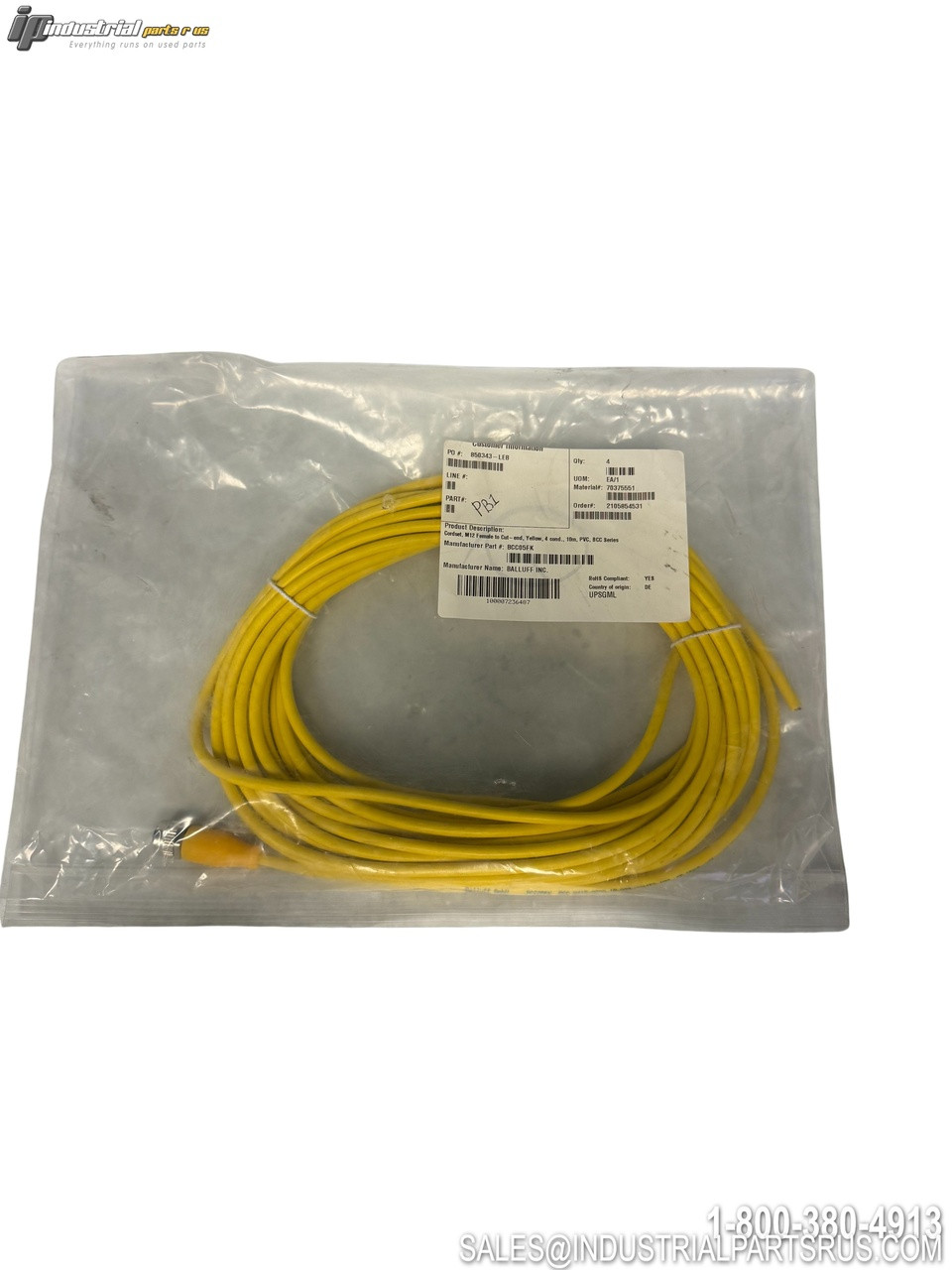

The Balluff BCC05FK is a single-ended M12 sensor/actuator cable designed for industrial automation applications. The Balluff BCC05FK (BCC M415‑0000‑1A‑003‑VX44T2‑100) is a single‑ended M12 sensor/actuator cable that pairs a straight M12x1 female, 5‑pin (A‑coded) connector to cut‑end pigtail leads for fast, plug‑and‑play wiring in industrial automation. Its 10 m yellow PVC cable is drag‑chain compatible and built with 4×22 AWG conductors for dependable signal and power transmission in sensors, vision systems, and actuators. Rated 250 VAC/DC, 4 A, and sealed to IP67/IP68/IP69K, the BCC05FK withstands harsh conditions with wide temperature ranges (−40…105 °C fixed, −5…105 °C flexible, −5…60 °C in drag chains) and durability proven to ≥2 million bending cycles—ideal for washdown and high‑duty motion applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | BCC05FK |
| Full Part Number | BCC M415-0000-1A-003-VX44T2-100 |
| Connection Type | M12x1 Female, Straight, 5-pin, A-coded |
| Cable Length | 10m |
| Cable Type | PVC Yellow, Drag Chain Compatible |
| Number of Conductors | 4 |
| Conductor Cross-Section | 22 AWG |
| Operating Voltage | 250 VDC / 250 VAC |
| Rated Current (40°C) | 4.0 A |
| IP Rating | IP67, IP68, IP69K |
| Operating Temperature (Fixed Routing) | -40°C to +105°C |
| Operating Temperature (Flexible Routing) | -5°C to +105°C |
| Operating Temperature (Drag Chains) | -5°C to +60°C |
| Switching Output | Antivalent |
| Approval/Conformity | CE, cULus, WEEE |
| Weight | 2.20 lbs |
