Product Description

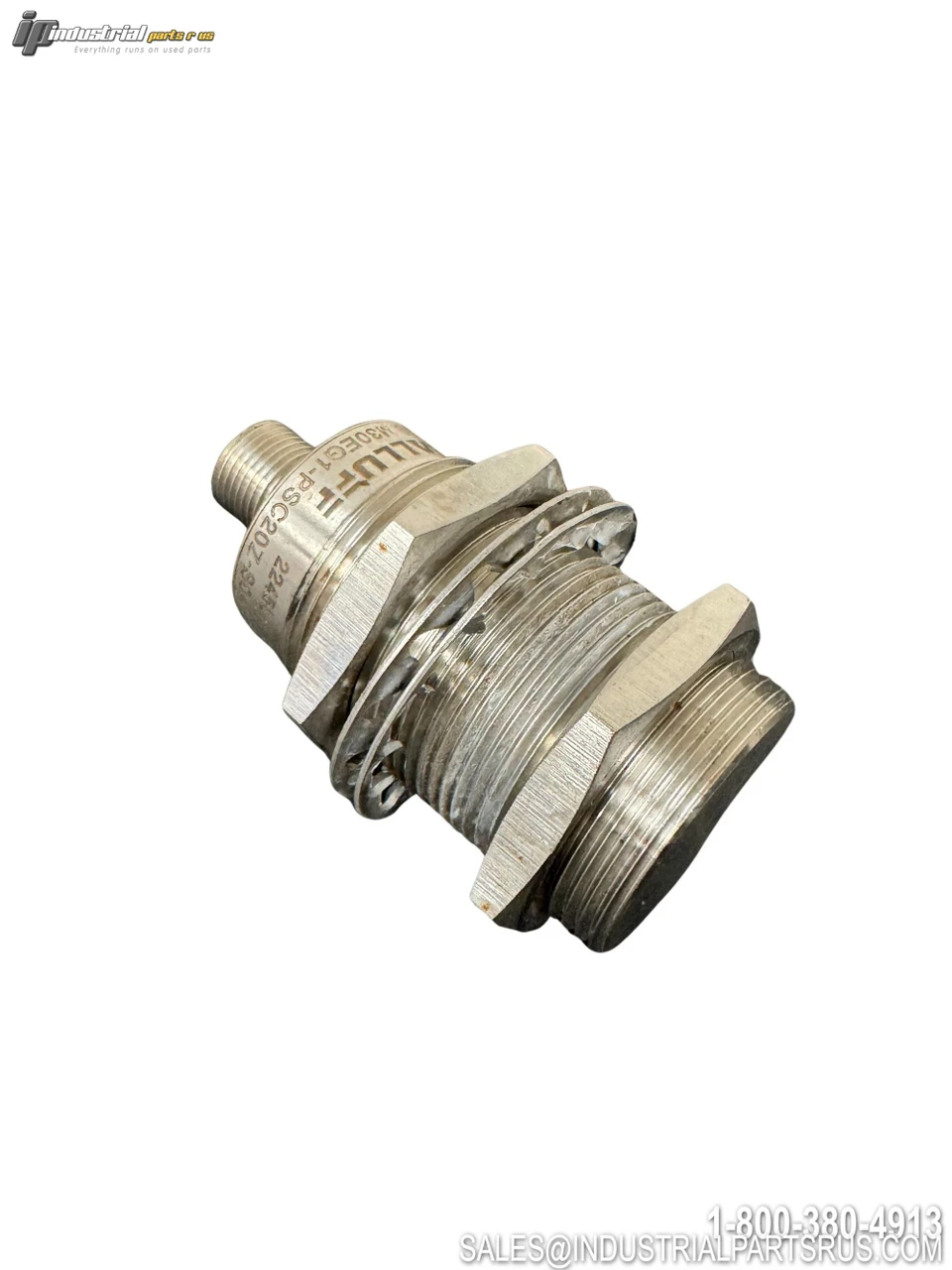

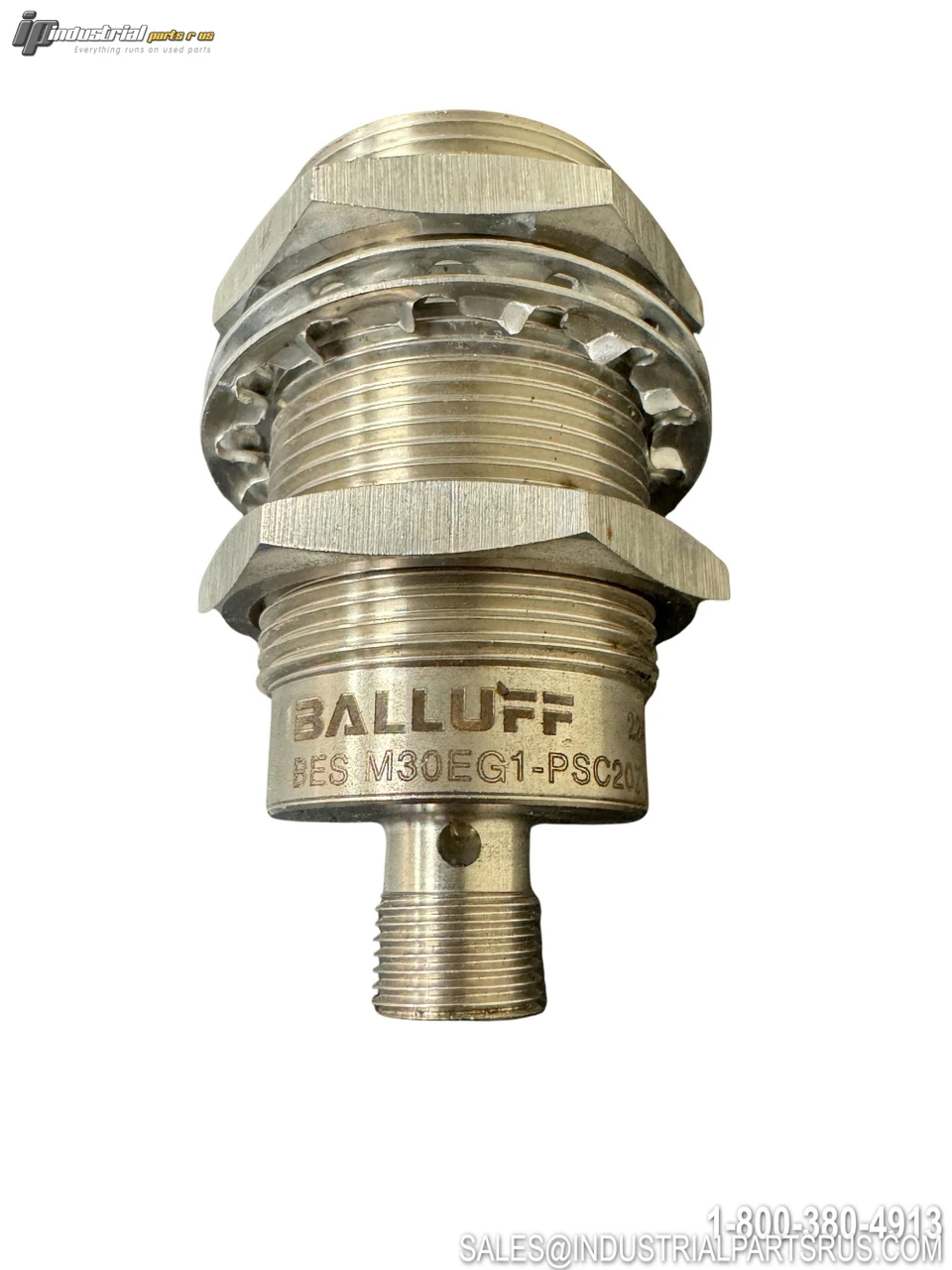

The Balluff BES M30EG1-PSC20Z-S04G-S11 (order code BES02YF) is a cylindrical, flush-mount, pressure-rated inductive proximity sensor designed for demanding industrial environments including hydraulic and high-pressure applications. Housed in a stainless steel M30x1.5 threaded body, it features a 20 mm rated sensing range with a PNP normally open (NO) switching output. The sensor connects via a standard M12x1 4-pin male connector and is rated for operating pressures up to 40 bar, making it suitable for position monitoring on hydraulic cylinders and valve assemblies.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model / Part Number | BES M30EG1-PSC20Z-S04G-S11 |
| Order Code | BES02YF |
| Product Family | BES Series – Pressure-Rated Inductive Sensors |
| Sensor Type | Inductive Proximity Sensor |
| Housing Style / Thread | M30x1.5 Cylindrical |
| Dimensions | Ø 30 x 63.5 mm |
| Installation Type | Flush Mount |
| Sensing Range (Sn) | 20 mm |
| Switching Output | PNP, Normally Open (NO) |
| Output Wiring | 3-Wire DC |
| Operating Voltage (Ub) | 10...30 VDC |
| Rated Operating Current (Ie) | 200 mA |
| Switching Frequency | 100 Hz |
| Connection Type | Connector, M12x1 Male, 4-Pin |
| Housing Material | Stainless Steel |
| Sensing Surface Material | 1.4305 Stainless Steel |
| Max. Pressure Rating | 40 bar |
| IP Rating | IP67 |
| Ambient Temperature | -25...70 °C |
| Approvals / Conformity | CE, cULus, WEEE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP Normally Open (NO)
Sensor Type Inductive
Operating Distance 20 mm
Manufacturer Balluff
Enclosure Type IP67
Part Number BES M30EG1-PSC20Z-S04G-S11
Shelf N-10
Model BES M30EG1-PSC20Z-S04G-S11
MPN BES M30EG1-PSC20Z-S04G-S11
Type Inductive Proximity Sensor
