Product Description

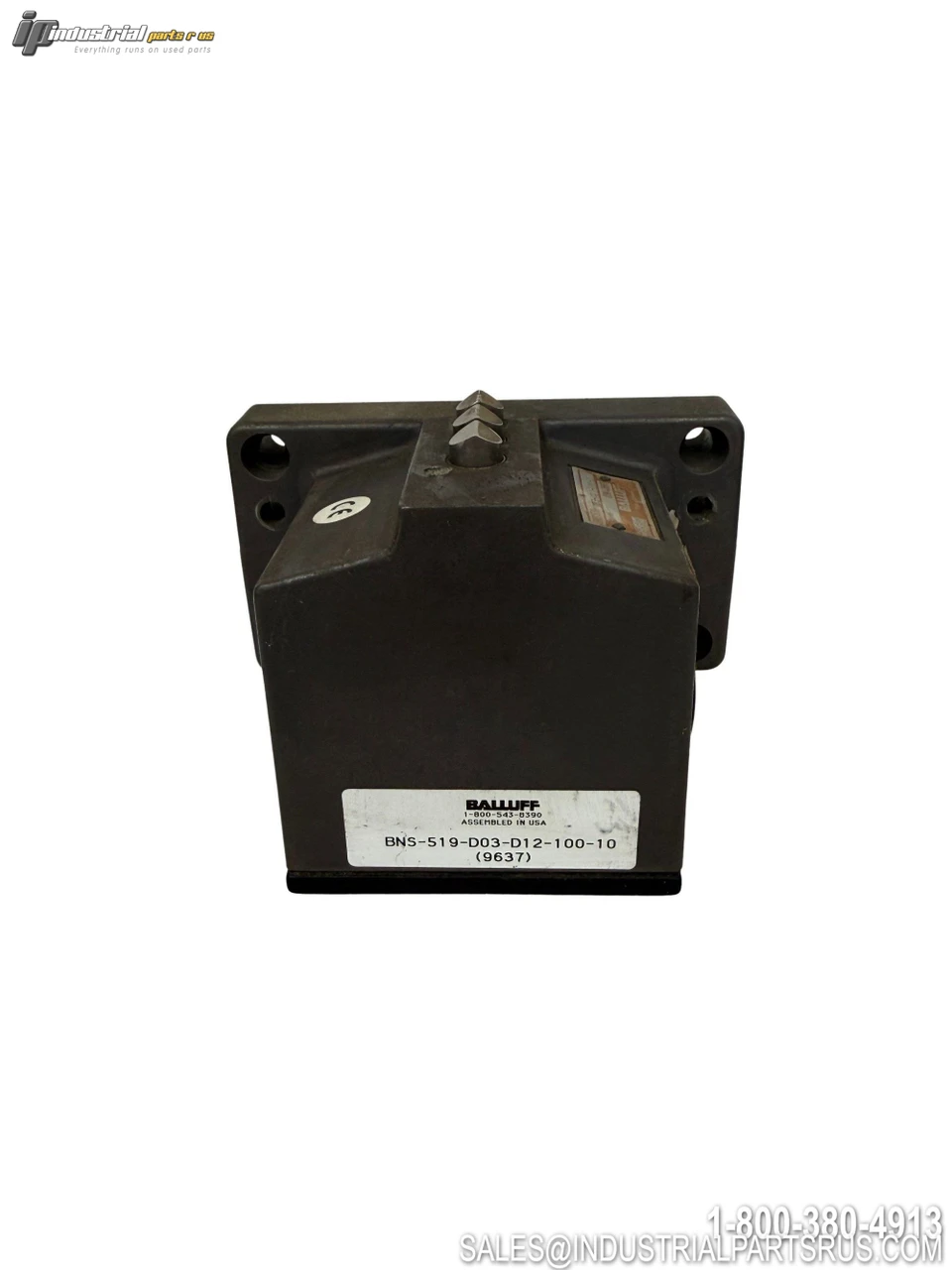

The Balluff BNS 519-D03-D12-100-10 is a mechanical multiple-position limit switch (cam switch) featuring three chisel-type switching positions with snap-contact action. Part of Balluff's BNS 519 series, this row-position counter operates via a telescopic ram that actuates each sealed switching element independently, providing reliable position detection in industrial automation and CNC machine tool applications. The unit is housed in an anodized aluminum enclosure rated IP67 for protection against dust and water ingress.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model / Part Number | BNS 519-D03-D12-100-10 |
| Product Type | Mechanical Multiple Position Limit Switch |
| Series | BNS 519 |
| Number of Switching Positions | 3 (3x Chisel) |
| Actuator / Ram Type | Chisel (Telescopic Ram) |
| Contact Version | Snap Contact |
| Operating Principle | Mechanical |
| Rated Operating Voltage (Ue) | 250 V AC |
| Continuous Current Rating | 6 A |
| Switch Position Spacing | 12 mm |
| Approach Speed (max) | 40 m/min |
| Installation Orientation | Vertical |
| Approach Direction | Longitudinal, parallel to attachment surface |
| Connection Type | Screw Terminal |
| Housing Material | Aluminium, Anodized |
| Dimensions (L x W x H) | 120 x 80 x 83 mm |
| IP Rating | IP67 |
| Ambient Temperature Range | -5 to +85 °C |
| Standard | DIN 43697 |
| Origin | Made in Germany |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Balluff
Enclosure Type IP67
Part Number BNS 519-D03-D12-100-10
Shelf E-19
Model BNS 519-D03-D12-100-10
MPN BNS 519-D03-D12-100-10
Type Limit Switch
