Product Description

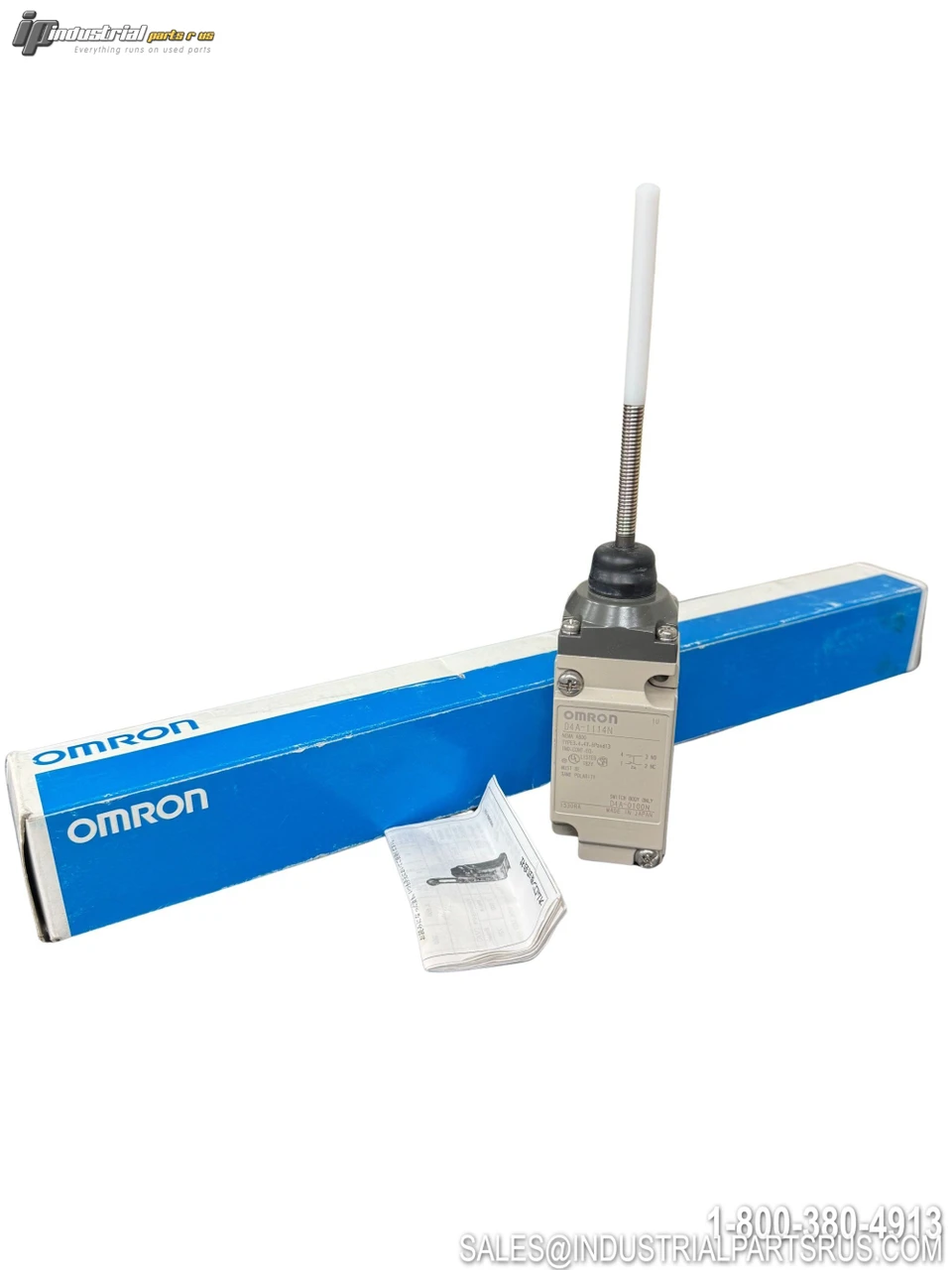

The Omron D4A-1114N is a general-purpose heavy-duty limit switch from the D4A-N Series, featuring a wobble lever (flexible plastic rod) actuator with SPDT double-break contact configuration. It is designed for industrial automation applications requiring robust mechanical and environmental protection, with a die-cast metal housing, double-sealed head, and IP67 ingress protection rating. The switch meets UL NEMA 3, 4, 4X, 6P, 12, and 13 standards, making it suitable for demanding environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | D4A-1114N |
| Product Type | General Purpose Limit Switch |
| Series | D4A-N |
| Contact Configuration | SPDT Double Break (SPDT-DB) |
| Switch Function | On-Momentary (NO/NC) |
| Actuator Type | Wobble Lever / Flexible Plastic Rod |
| Current Rating (AC) | 10 A |
| Current Rating (DC) | 6 A |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 30 VDC |
| Contact Voltage AC Max (Rated) | 480 VAC |
| Contact Resistance | 25 mΩ |
| Operating Force | 150 gf (1.47 N) |
| Pretravel | 15° |
| Conduit Size | 1/2-14 NPT |
| Termination Style | Screw Terminal |
| Mounting Type | Chassis Mount (Screw) |
| Mounting Hole Pattern | 29.4 mm x 59.5 mm |
| Ingress Protection (IP) Rating | IP67 (Dust Tight, Waterproof) |
| NEMA Rating | NEMA 1, 2, 3, 4, 4X, 5, 6P, 12, 13 |
| Operating Temperature | -40°C to +100°C |
| Electrical Life | 1,000,000 Cycles (minimum) |
| Mechanical Life | 50,000,000 Cycles (minimum) |
| Indicator | Non-Illuminated |
| RoHS Compliant | Yes |
| Certifications | UL, CSA, CCC |
| ECCN | EAR99 |
| HTS Code | 8536.50.90.55 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Full Load Amps 10 A
Manufacturer Omron
Enclosure Type IP67
Part Number D4A-1114N
Shelf K-34
Model D4A-1114N
MPN D4A-1114N
Type Limit Switch
