Product Description

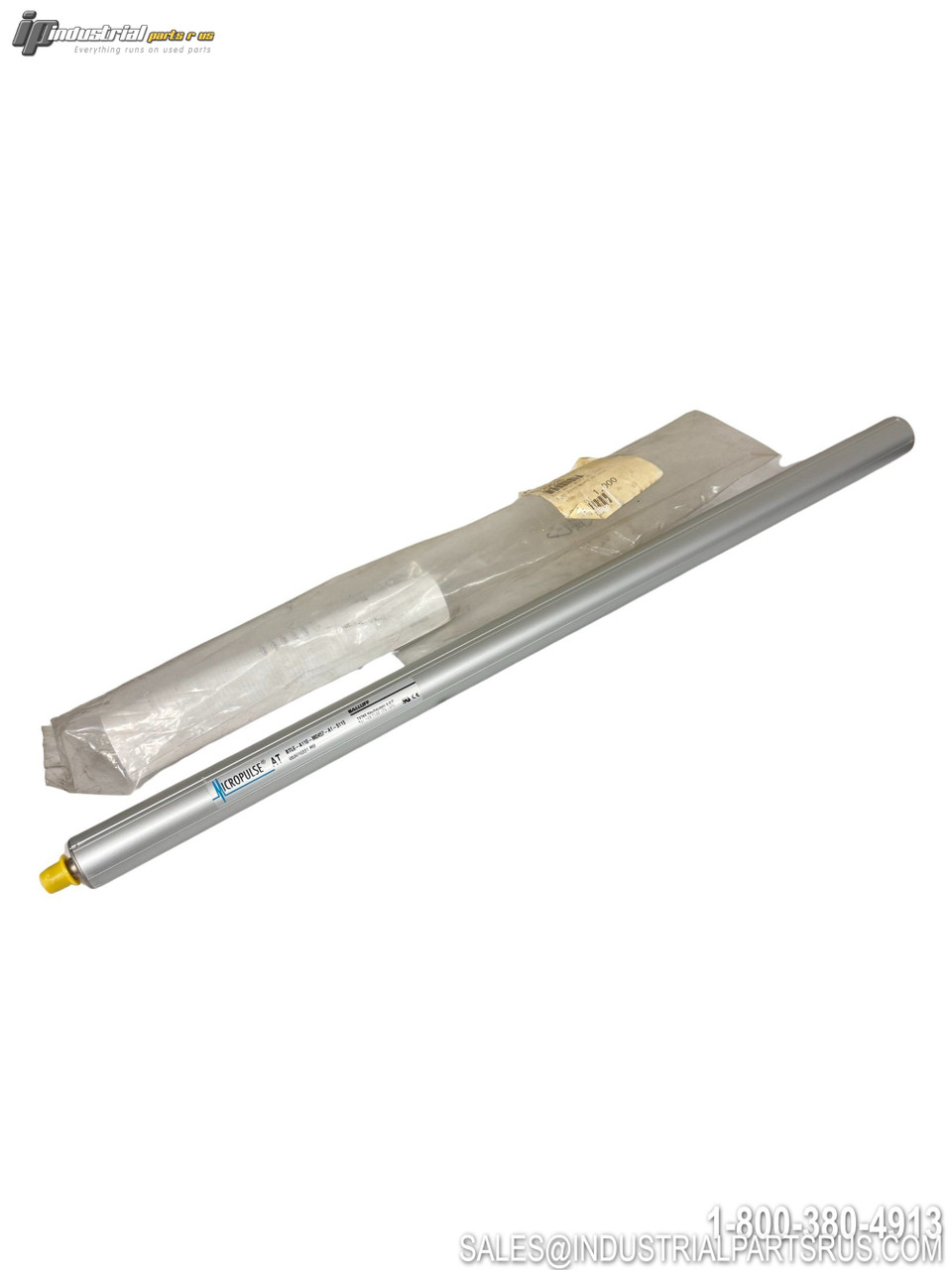

The Balluff BTL6-A110-M0457-A1-S115 is a Micropulse SLT linear position transducer designed for precise position measurement in industrial applications. This analog output transducer features magnetostrictive technology for accurate and reliable position feedback with 457mm stroke length.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | BTL6-A110-M0457-A1-S115 |
| Product Type | Micropulse Linear Position Transducer |
| Stroke Length | 457mm (18 inches) |
| Output Signal | 0-10V and 10-0V analog |
| Supply Voltage | 24VDC ±20% |
| Current Draw | ≤ 150mA |
| Resolution | ≤ 10μm |
| Repeat Accuracy | ≤ 10μm |
| Non-linearity | ± 100μm |
| Update Rate | 1ms |
| Operating Temperature | -40 to +80°C |
| Protection Class | IP67 |
| Housing Material | Anodized aluminum |
| Connection Type | Connector |
| Measurement Technology | Magnetostrictive |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Analog voltage
Sensor Type Position
Full Load Amps ≤ 150mA
Manufacturer Balluff
Part Number BTL6-A110-M0457-A1-S115
Shelf B-17
Model BTL6-A110-M0457-A1-S115
MPN BTL6-A110-M0457-A1-S115
Type Linear Sensor
