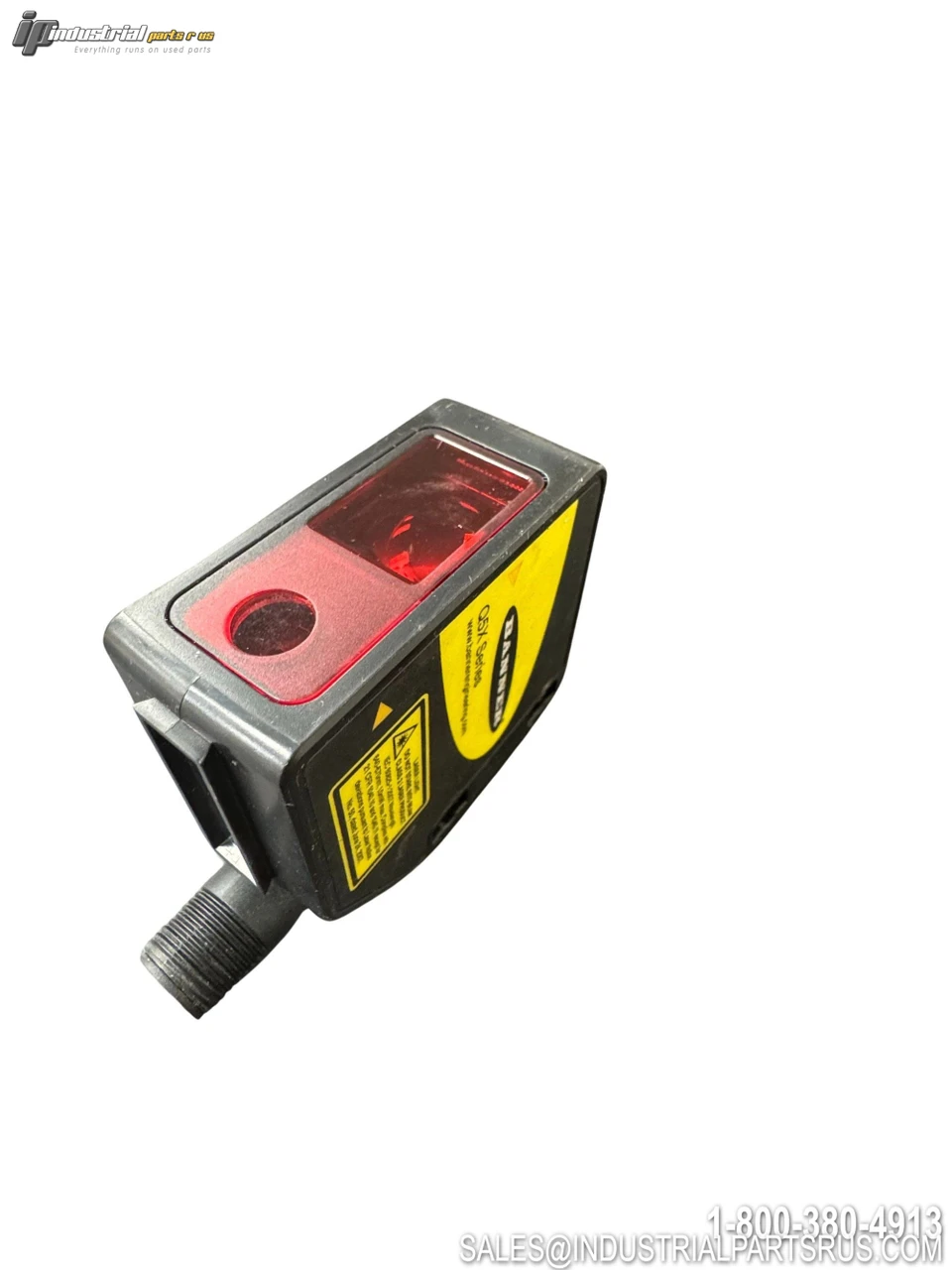

Product Description
The Banner Engineering Q5X Series is a high-power, multi-function laser measurement sensor featuring background and foreground suppression technology in a cost-effective, industry-standard rectangular housing. Using a visible red Class 2 laser (650 nm) and laser triangulation principles, the Q5X delivers reliable detection of the most challenging targets including dark, clear, reflective, and multicolor objects. The series is programmable via onboard push buttons, remote teach, IO-Link, or an optional Remote Sensor Display (RSD), and is available in multiple sensing range and output configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner Engineering |
| Series / Model | Q5X |
| Product Type | Laser Measurement / Photoelectric Sensor |
| Sensing Technology | Laser Triangulation / Background-Foreground Suppression |
| Sensing Beam | Visible Red Laser, 650 nm, Class 2 |
| Sensing Range | 50 mm to 10,000 mm (varies by model: 2000 / 3000 / 5000 / 10000 mm max) |
| Minimum Sensing Distance | 50 mm (5000/10000 mm models); 95 mm (2000/3000 mm models) |
| Supply Voltage | 10–30 V DC (Class 2 supply); 12–30 V DC (analog output models); 10% max ripple |
| Output Type | Discrete: 1–2 NPN/PNP configurable outputs with IO-Link; Analog: 4–20 mA or 0–10 V DC (select models) |
| Output Current Rating | 50 mA maximum |
| IO-Link | Yes (IO-Link Device) |
| PFM Output | Yes (Pulse Frequency Modulation, on select models) |
| Connection Type | 4-pin or 5-pin M12 Rotatable / Integral QD (270° rotatable) |
| IP Rating | IP67 per IEC 60529 |
| NEMA Rating | NEMA 4X |
| Housing Style | Rectangular |
| Housing Material | ABS |
| Lens Cover Material | PMMA Acrylic |
| Lightpipe Material | Polycarbonate |
| Min Operating Temperature | -10°C (14°F) |
| Max Operating Temperature | 50°C (122°F) |
| Relative Humidity | 35% to 95% |
| Power Consumption | <1 W (2000/3000 mm models); <1.4 W (5000/10000 mm models) |
| Response Time | User selectable: 15, 25, or 50 ms (JAM model); 0.5–3 ms (standard models) |
| Delay at Power-Up | 2500 ms |
| Supply Protection | Protected against reverse polarity and transient overvoltages |
| Output Protection | Protected against continuous overload and short circuit |
| Max Ambient Light | Up to 5000 lux at 1000 mm; up to 2000 lux at 2000 mm |
| Adjustments | Push Button; Remote Teach; IO-Link; Optional Remote Sensor Display (RSD) |
| Certification | cUL; MIL-STD-202G |
| Sensing Mode | Proximity / Background-Foreground Suppression |
| Jam Detection | Available (select -JAM models only) |
| Applications | Material Handling, Packaging, Lumber & Construction, Automotive |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Operating Distance 50 mm to 10,000 mm
Manufacturer Banner
Enclosure Type NEMA 4X
Part Number Q5XKLAF2000-Q8
Shelf P-8
Model Q5XKLAF2000-Q8
MPN Q5XKLAF2000-Q8
Type Laser Sensor
