Product Description

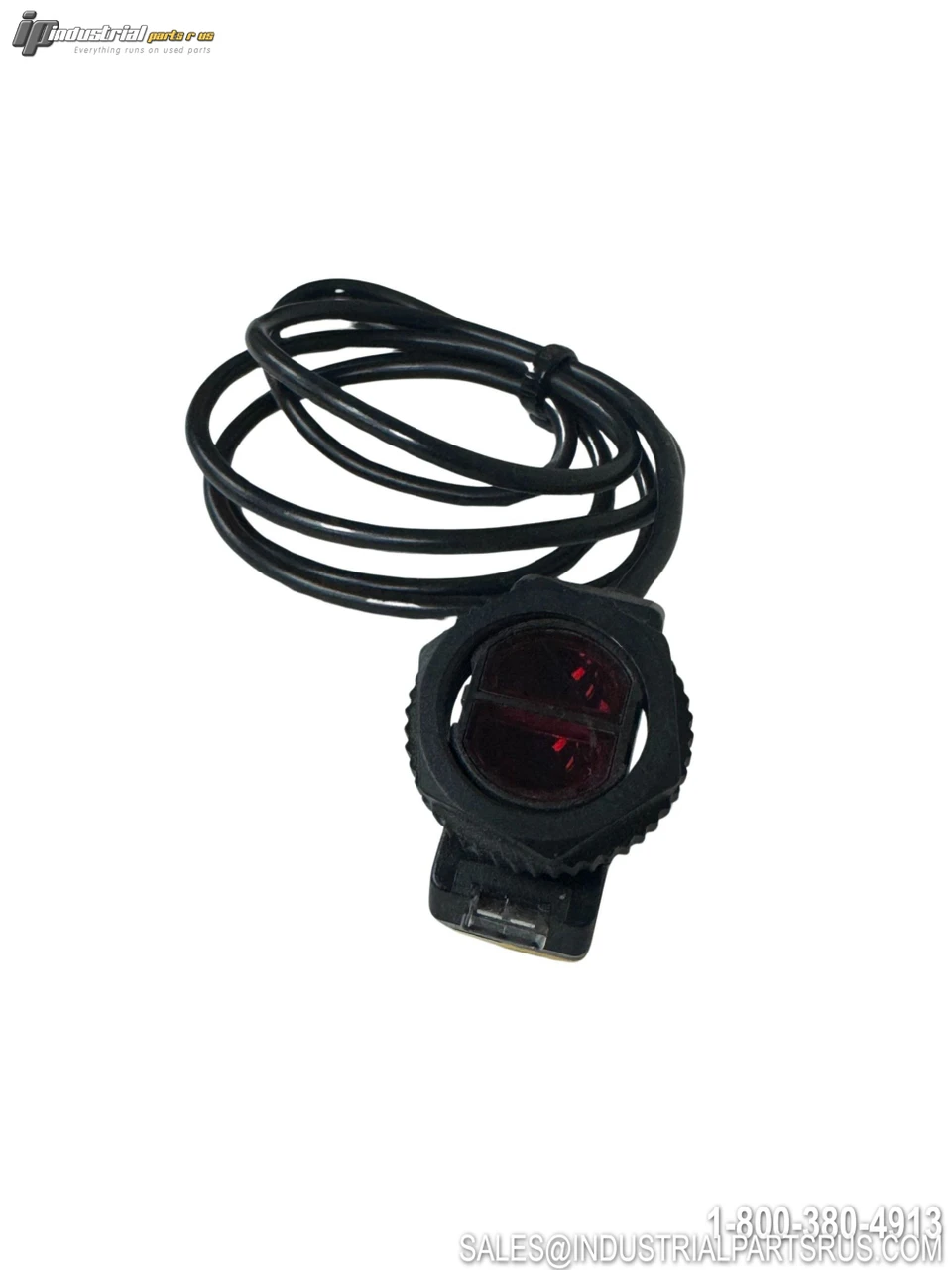

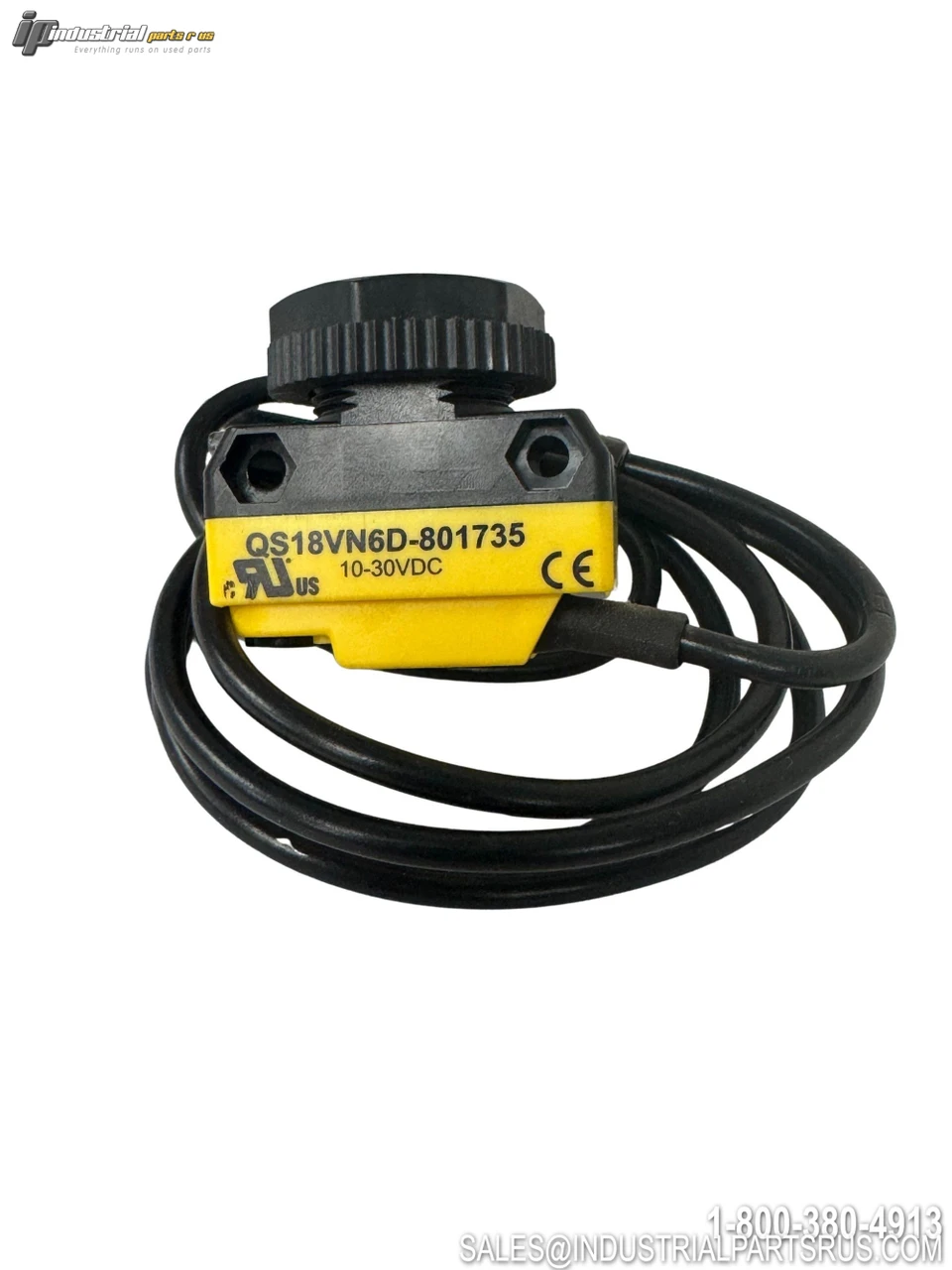

The Banner Engineering QS18VN6D-801735 is a WORLD-BEAM QS18 Series miniature self-contained diffuse-mode photoelectric sensor in a universal rectangular housing. It features a 450 mm sensing range using 940 nm infrared light, complementary NPN solid-state output (Light-ON / Dark-ON selectable), and a potentiometer for sensitivity adjustment. The sensor is pre-wired with a 2 m (6.5 ft) unterminated cable and is rated IP67 / NEMA 6, making it suitable for demanding industrial environments. Note: This part number (801735) is discontinued by Banner Engineering; contact Banner for a recommended replacement.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner Engineering |
| Model / Part Number | QS18VN6D-801735 |
| Series | WORLD-BEAM QS18 |
| Sensor Type | Photoelectric — Diffuse Mode |
| Sensing Range | 0 – 450 mm (0 – 18 in) |
| Light Source | 940 nm Infrared (IR) |
| Supply Voltage | 10–30 V DC (12 VDC / 24 VDC nominal) |
| Output Type | Complementary Solid-State NPN (NO/NC) |
| Output Current (max) | 100 mA |
| Operating Mode | Light-ON / Dark-ON (selectable); Light Operate — No White Wire |
| Response Time | 0.6 ms (less than 1 ms) |
| Sensitivity Adjustment | Potentiometer |
| Connection Type | Pre-wired, 2 m (6.5 ft) unterminated cable (bare end / flying leads) |
| Housing Material | Thermoplastic (ABS) |
| Lens Material | Acrylic |
| Housing Shape | Rectangular |
| Mounting Type | M18 Threaded Lens or Side Mount |
| Enclosure / IP Rating | IP67 / NEMA 6 |
| Operating Temperature | -20°C to +70°C |
| Status Indicators | Bright LED, visible 360° |
| Power Type | DC |
| Product Status | Discontinued by Manufacturer |
| Banner Internal Part No. | 61651 (individual unit); 801735 (catalog/order suffix) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Complementary Solid-State NPN (NO/NC)
Sensor Type Diffuse Mode Photoelectric
Operating Distance 450 mm
Manufacturer Banner
Enclosure Type IP67 / NEMA 6
Part Number QS18VN6D-801735
Shelf O-10
Model QS18VN6D-801735
MPN QS18VN6D-801735
Type Photoelectric Sensor
