Product Description

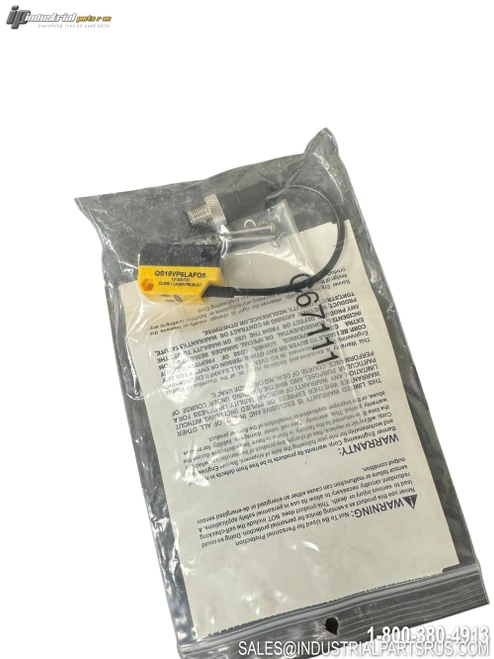

The Banner Engineering QS18VP6LAFQ5 is a WORLD-BEAM QS18 Series laser adjustable-field photoelectric sensor featuring a Class 1 visible red laser (650 nm) with mechanically screw-adjustable background suppression. It delivers exceptional optical performance in a compact rectangular housing, with a sensing cutoff distance adjustable between 30 and 150 mm. The sensor provides complementary (SPDT) solid-state PNP output and connects via a 150 mm (6 in) M12 Euro-style pigtail quick-disconnect connector, making it well-suited for precision automation, manufacturing, and packaging applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner Engineering |
| Model / Part Number | QS18VP6LAFQ5 |
| Manufacturer Part Number (Alt) | 73191 |
| Product Series | WORLD-BEAM QS18 |
| Sensor Type | Photoelectric — Laser Adjustable-Field Background Suppression |
| Sensing Mode | Adjustable-Field (Mechanically Adjustable Background Suppression) |
| Sensing Range (Min) | 30 mm |
| Sensing Range (Max) | 150 mm |
| Cutoff Adjustment | Multi-turn mechanical screw adjustment |
| Light Source | Visible Red Laser, Class 1, 650 nm wavelength |
| Supply Voltage | 10–30 VDC |
| Output Type | Complementary Solid-State PNP (SPDT, NO/NC) |
| Output Current (Max) | 100 mA |
| Output Operation | Light-ON or Dark-ON (selectable) |
| Response Time | <1 ms |
| Connection Type | 4-Pin Euro-Style M12 QD Pigtail Connector, 150 mm (6 in) cable |
| Number of Pins | 4 |
| Housing Shape | Rectangular |
| Housing Material | Thermoplastic (ABS) |
| Lens Material | Acrylic |
| IP Rating | IP67 / NEMA 6 |
| Operating Temperature | -10°C to +50°C |
| Status Indicators | 360° visible LED indicators |
| Certifications | RoHS Compliant, CE, UL Recognized (UR) |
| Washdown Rated | No |
| Clear Object Detection | No |
| Hazardous Area Rated | No |
| Typical Applications | Industrial automation, manufacturing, packaging, medical |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Photoelectric
Operating Distance 30 mm to 150 mm
Manufacturer Banner
Enclosure Type NEMA 6
Part Number QS18VP6LAFQ5
Shelf P-8
Model QS18VP6LAFQ5
MPN QS18VP6LAFQ5
Type Photoelectric Sensor
