Product Description

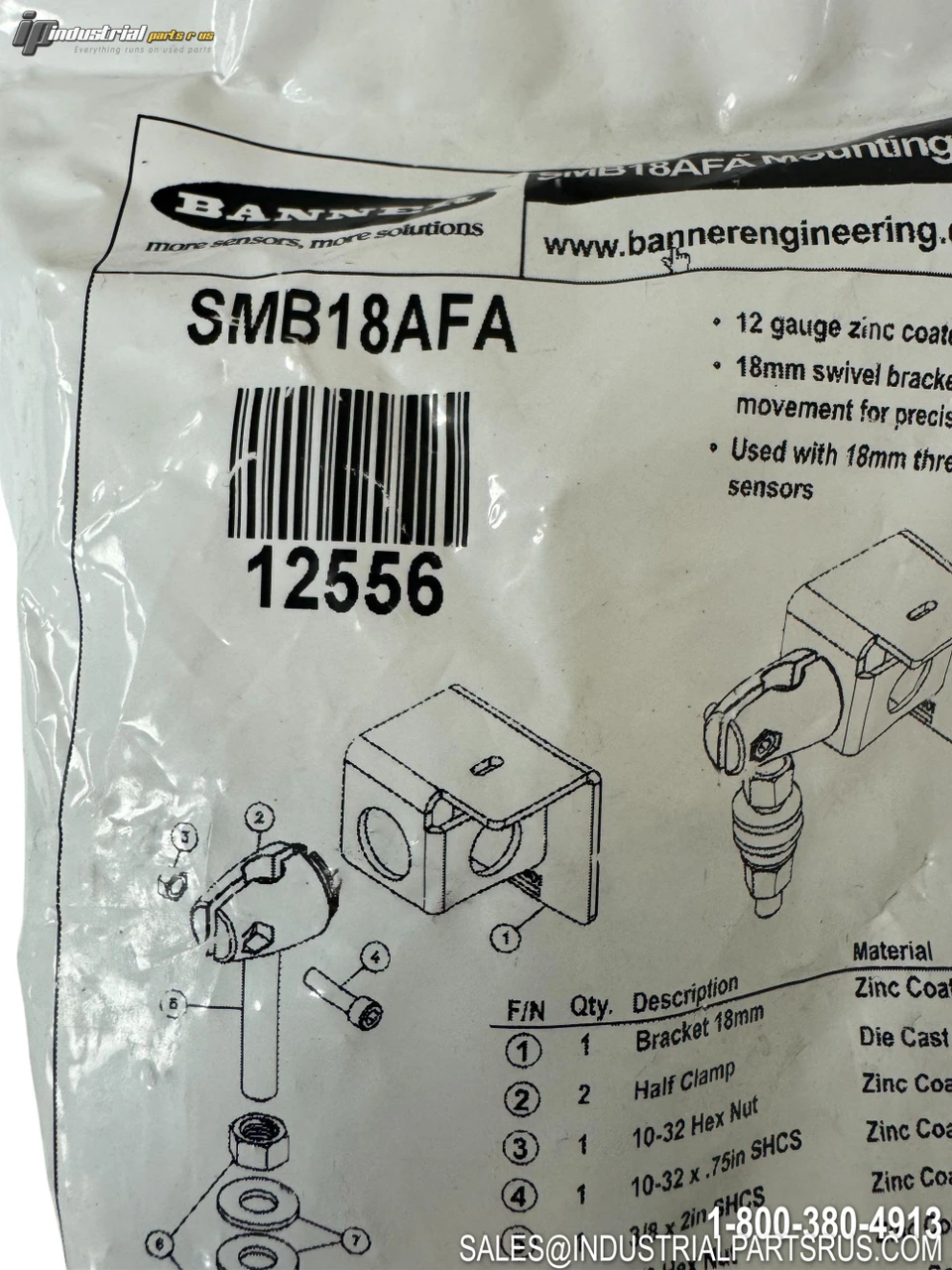

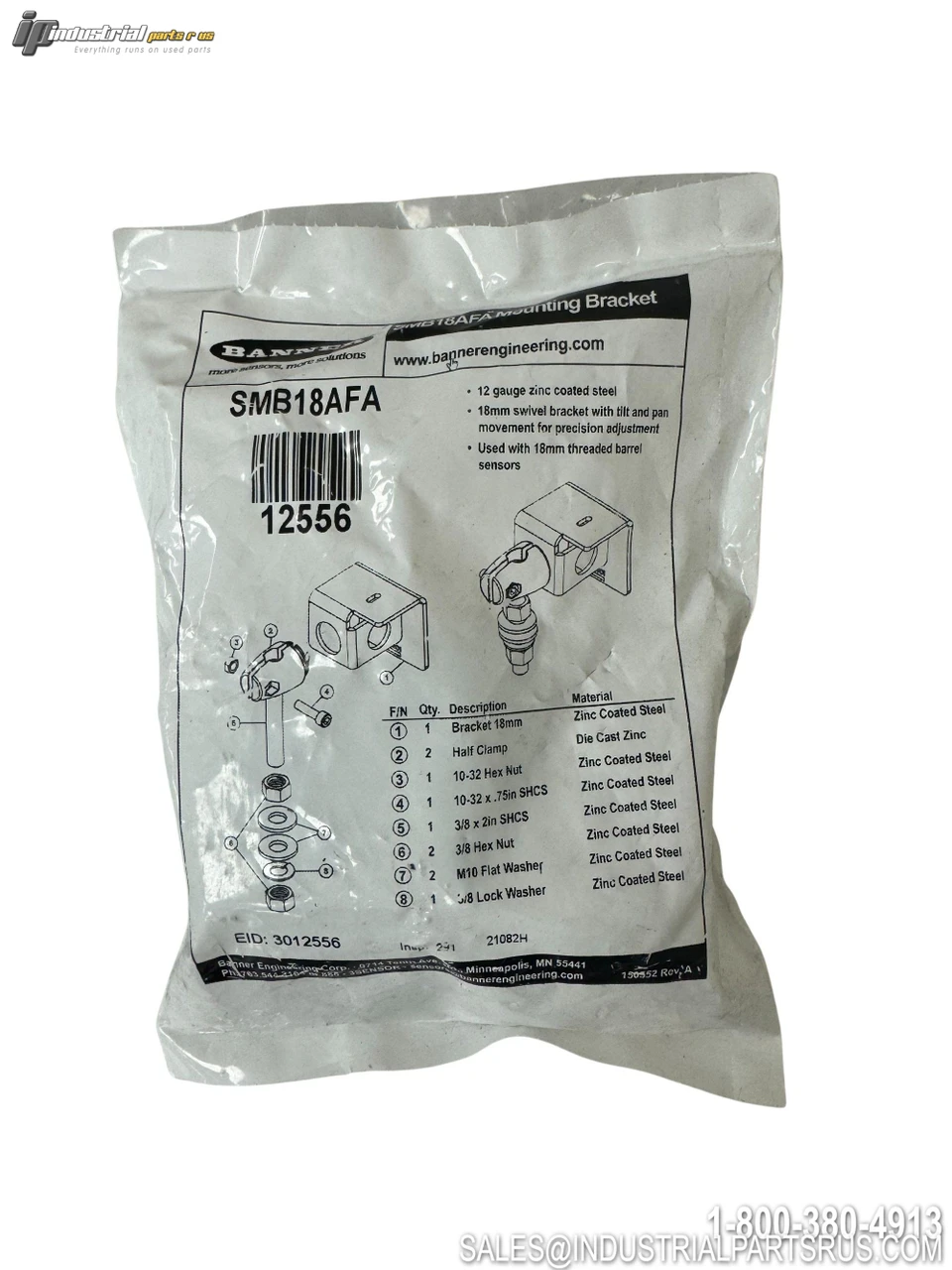

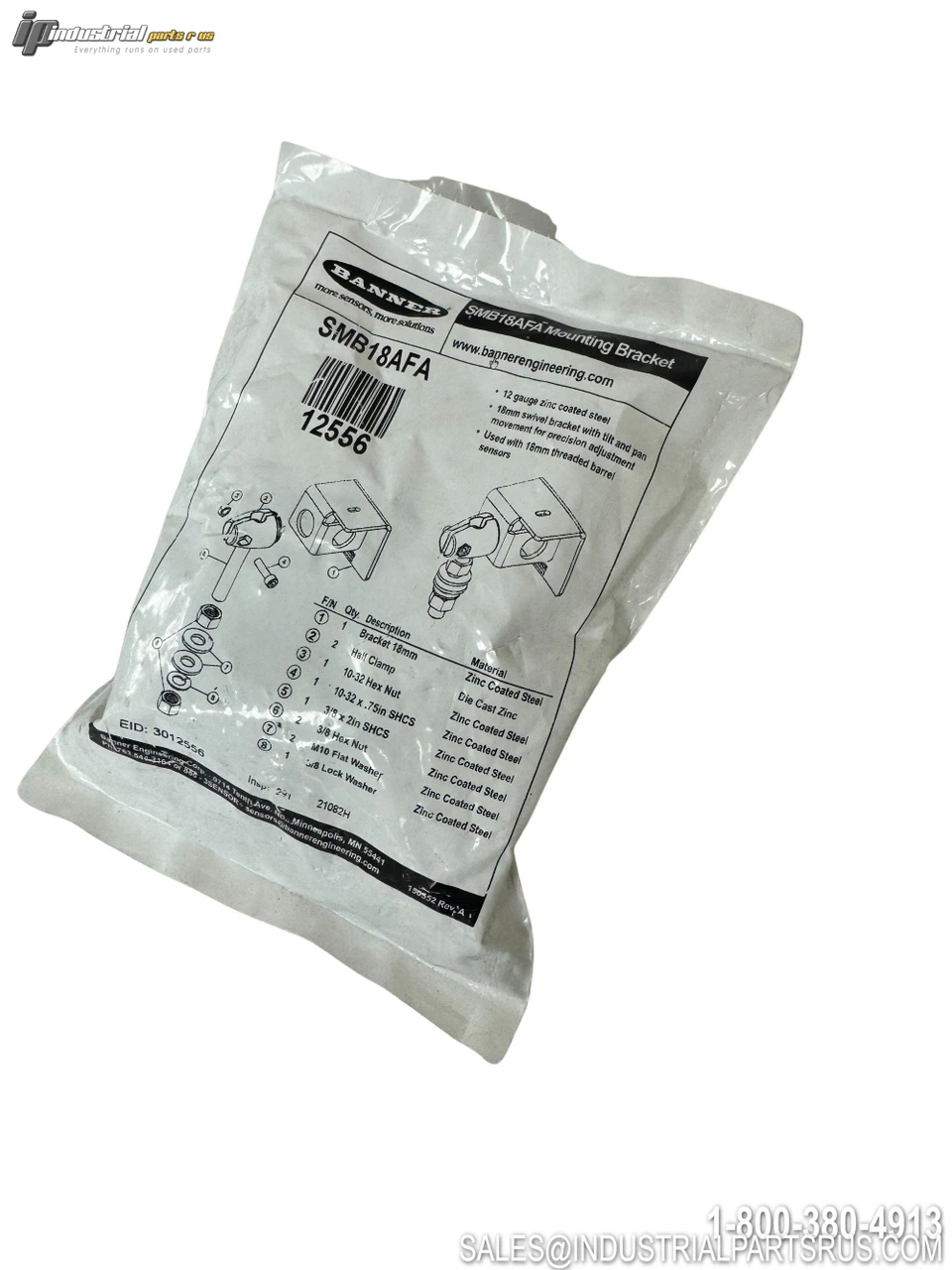

The Banner Engineering SMB18AFA (P/N 12556) is a protective swivel mounting bracket designed for 18 mm barrel-style sensors such as the T18 and QS18 series. It features tilt and pan movement for precise sensor adjustment and is compatible with extruded rail T-slot mounting. The bracket is constructed from Zinc Zamak and includes a hardware packet; the inch-thread bolt variant uses a 3/8-16 × 2 in bolt thread.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner Engineering |
| Model / Part Number | SMB18AFA |
| Manufacturer Part Number (Internal) | 12556 |
| Product Type | Protective Swivel Sensor Mounting Bracket |
| Bracket Type | Protective Swivel |
| Movement | Tilt and Pan |
| Mounting Hole Size | 18 mm (ø 18.1 mm) |
| Bolt Thread (A) | 3/8-16 × 2 in |
| Material | Zinc Zamak |
| Hardware Packet Included | Yes |
| Replaceable Window | No |
| Compatible Sensors | T18, QS18, and most 18 mm barrel-mount sensors |
| Mounting Style | Extruded Rail T-Slot / Flat Surface |
| Outer Diameter (approx.) | ø 19.8 mm |
| Overall Height | 51 mm |
| Overall Width | 51 mm |
| Depth | 44 mm |
| Weight | 0.522 lb |
| Series / Family | SMB Series |
| CAD Files Available | DXF, PDF, IGS, STP |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Banner
Part Number SMB18AFA
Shelf P-8
Model SMB18AFA
MPN SMB18AFA
Type Sensor, Transducer Accessories
